Features
OPTIMISED FOR STATIC PRESSURE: Through high static pressure, the fan guarantees efficient cooling, even with increased air resistance. Suitable for use on heat sinks and radiators
STRONG COOLING PERFORMANCE: The performance of the P fans has been noticeably increased through numerous improvements, including upgraded engine technology and a newly developed fan design
300 TO 2100 RPM: Thanks to the 4-pin connector, the fan speed can be controlled via PWM PST. This keeps noise to a minimum while at the same time ensuring maximum cooling performance

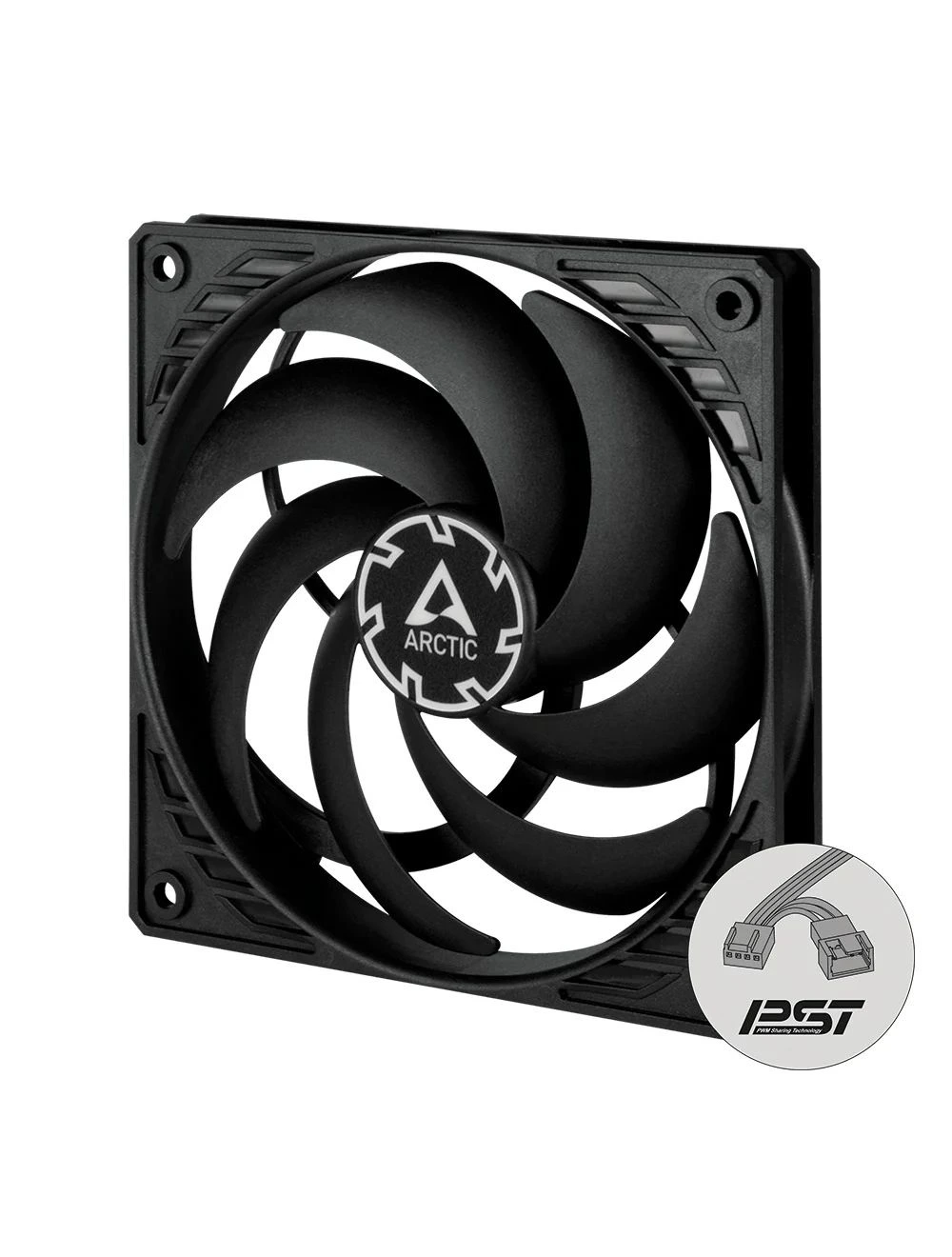

LOW INSTALLATION HEIGHT: The P12 Slim PWM PST has an installation height of only 15 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit
TECHNICAL DATA: 3 Pack, Fan speed: 300–2100 rpm (0 rpm <5 %), Airflow: 42.10 cfm | 71.53 m³/h, Noise Level: 0.3 Sone, Static pressure: 1.45 mmH₂O, Pin: 4-pin
Specifications:
Operating Ambient Temperature: 0–40 °C
Dimensions: 120 (L) x 120 (W) x 15 (H) mm
Net Weight: 85 g
Fan Specifications
Fan Speed: 200–2100 rpm (PWM controlled),
0 rpm below 9 % PWM
Airflow: 34.51 cfm | 58.62 m³/h
Static Pressure: 1.33 mmH2O
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Start Up Voltage: 5 V DC
Current: 0.12 A
Cable Length: 400 mm
Connector: 4-Pin Connector + 4-Pin Socket
