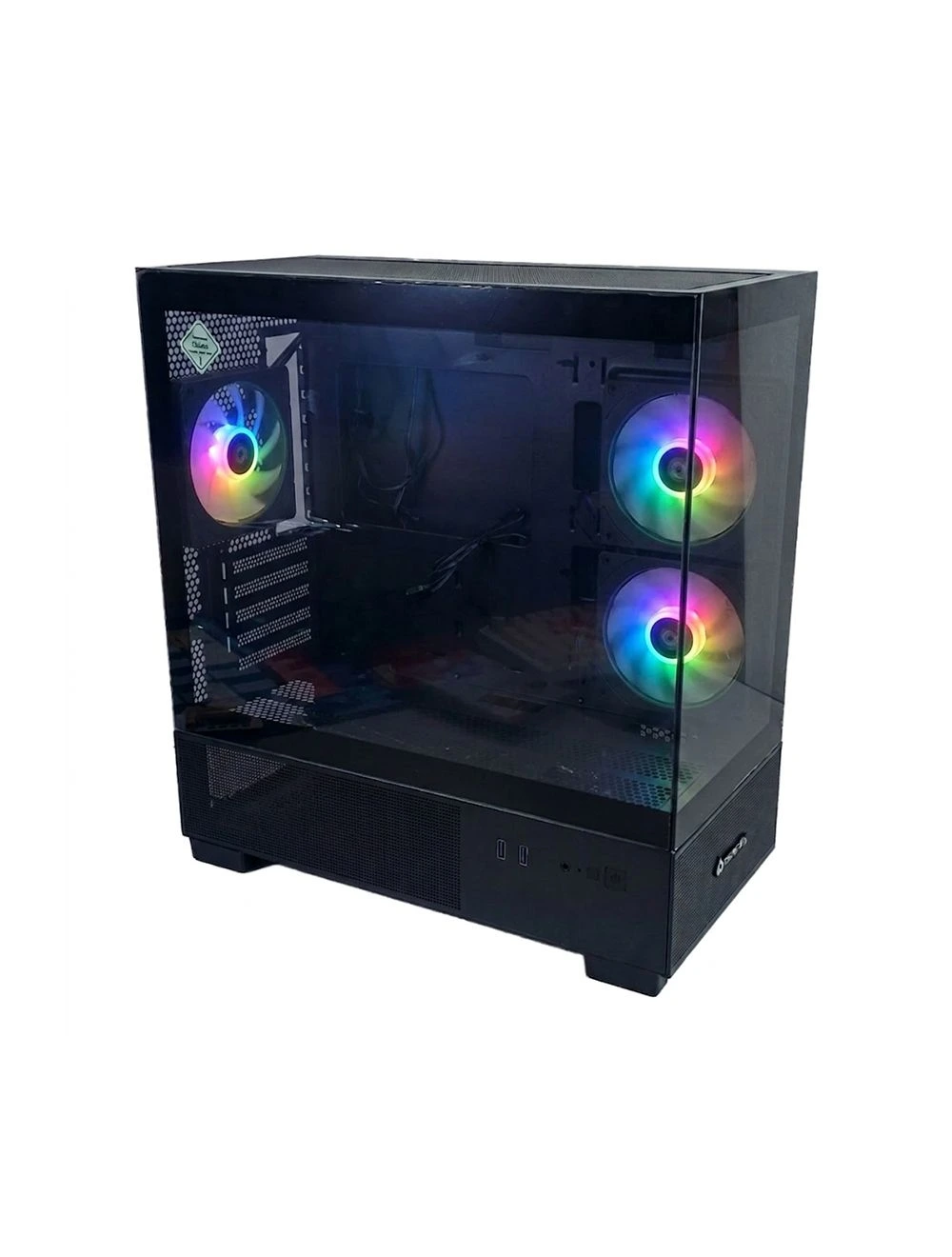

The Ascendry Core MX S15 is a premium Micro-ATX chassis designed for the 2026 builder who demands a "showcase" aesthetic without the footprint of a full tower. Featuring a stunning dual-tempered glass wrap-around design, this case provides an unobstructed view of your high-end components. Engineered for maximum thermal efficiency, it supports up to a 360mm radiator on the top and comes pre-installed with three 120mm ARGB fans, making it the perfect foundation for a high-performance, visually striking gaming rig.
SPECIFICATIONS
Model: Core MX
Case Form Structure: ATX Mid-Tower
MBO Form Factor: MICRO-ATX/MINI-ITX
Drive Bays Support: 1 x 3.5" HDD, 2x2.5" SSD
I/O Ports: 2 xUSB3.0, HD Audio
Side Panel: Tempered Glass
Maximum VGA Length: 405mm
Maximum CPU Cooler Height: 160mm
Maximum PSU Length: 230mm
PCI Expension Slots: 5
PSU box: Yes
Dust filter: 3 (Top Magnetic/Bottom/Side Magnetic)
Fan(s) Include: 3x120mm ARGB (2xSide; 1 xRear)
Fan Support
Side: 2 x120 mm
Rear: 1 x120 mm
Top: 3 x120 mm/2x140 mm
Bottom: 3 x120 mm
Watercooling Support: 1 x360 mm (Top)
Product Dimension: (L)413mmx(W)210mmx(H)450mm
Package Dimension: (L)500mmx(W)260mmx(H)470mm
Chassis Material: SPCC 0.6mm
Front Panel Material: Tempered Glass
Net/Gross Weight: 5.6kg/6.5kg
