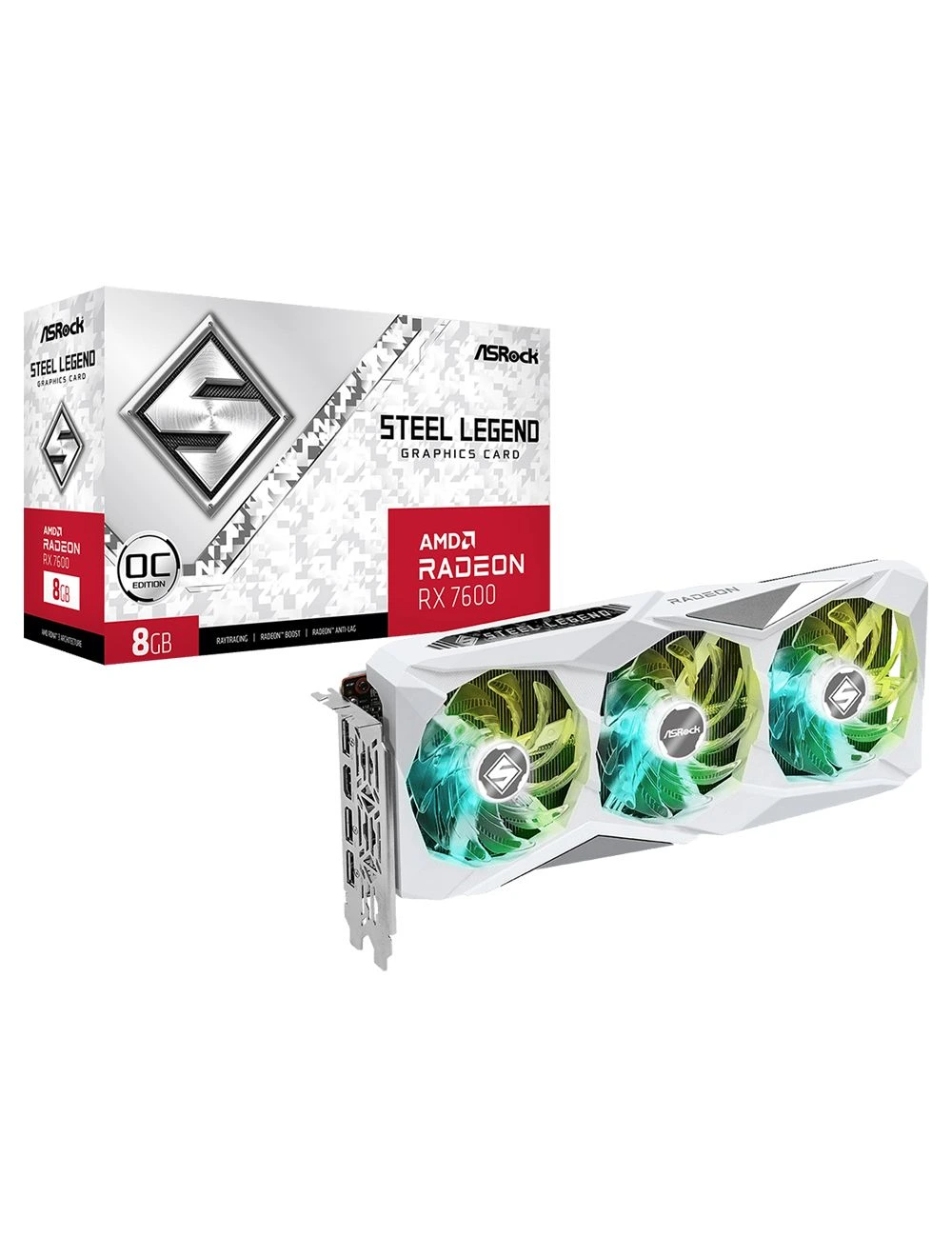

AMD Radeon RX 7600 Steel Legend 8GB OC
Clock: GPU / Memory
Boost Clock*: Up to 2725 MHz / 18 Gbps
Game Clock**: 2320 MHz / 18 Gbps
Key Specification
AMD Radeon™ RX 7600 GPU
8GB GDDR6 on 128-Bit Memory Bus
32 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
32MB AMD Infinity Cache™ technology
Microsoft® DirectX® 12 Ultimate
PCI® Express 4.0 Support
1 x 8-pin Power Connector
3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1
Key Features
Polychrome SYNC
Triple Fan Design
Stylish Metal Backplate
Striped Axial Fan
0dB Silent Cooling
Ultra-fit Heatpipe
Super Alloy Graphics Card
Specification:
Graphics Engine: AMD Radeon™ RX 7600
Bus Standard: PCI® Express 4.0 x8
DirectX: 12 Ultimate
OpenGL: 4.6
Memory: 8GB GDDR6
Engine Clock
- Boost Clock*: Up to 2725 MHz
- Game Clock**: 2320 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors: 2048
Memory Clock: 18 Gbps
Memory Interface: 128-bit
Resolution: Digital Max Resolution: 7680 x 4320
Interface
- 3 x DisplayPort™ 2.1*
- 1 x HDMI™ 2.1
*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously.
HDCP: Yes
Multi-view: 4
Recommended PSU: 600W
Power Connector: 1 x 8-pin
Accessories: 1 x Quick Installation Guide
Dimensions: 303 x 131 x 45 mm, 2.25-slot
Net Weight: 834 g
