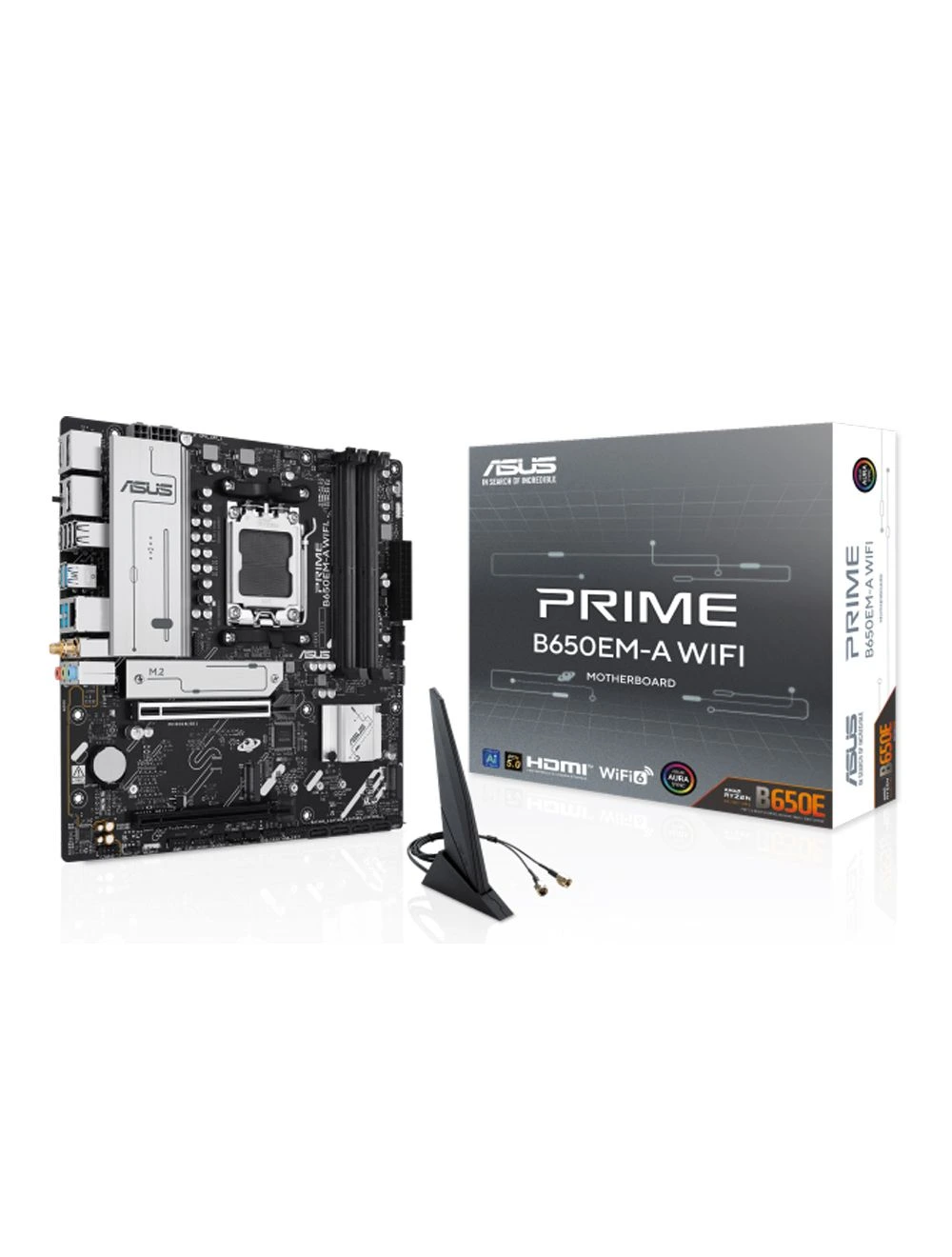

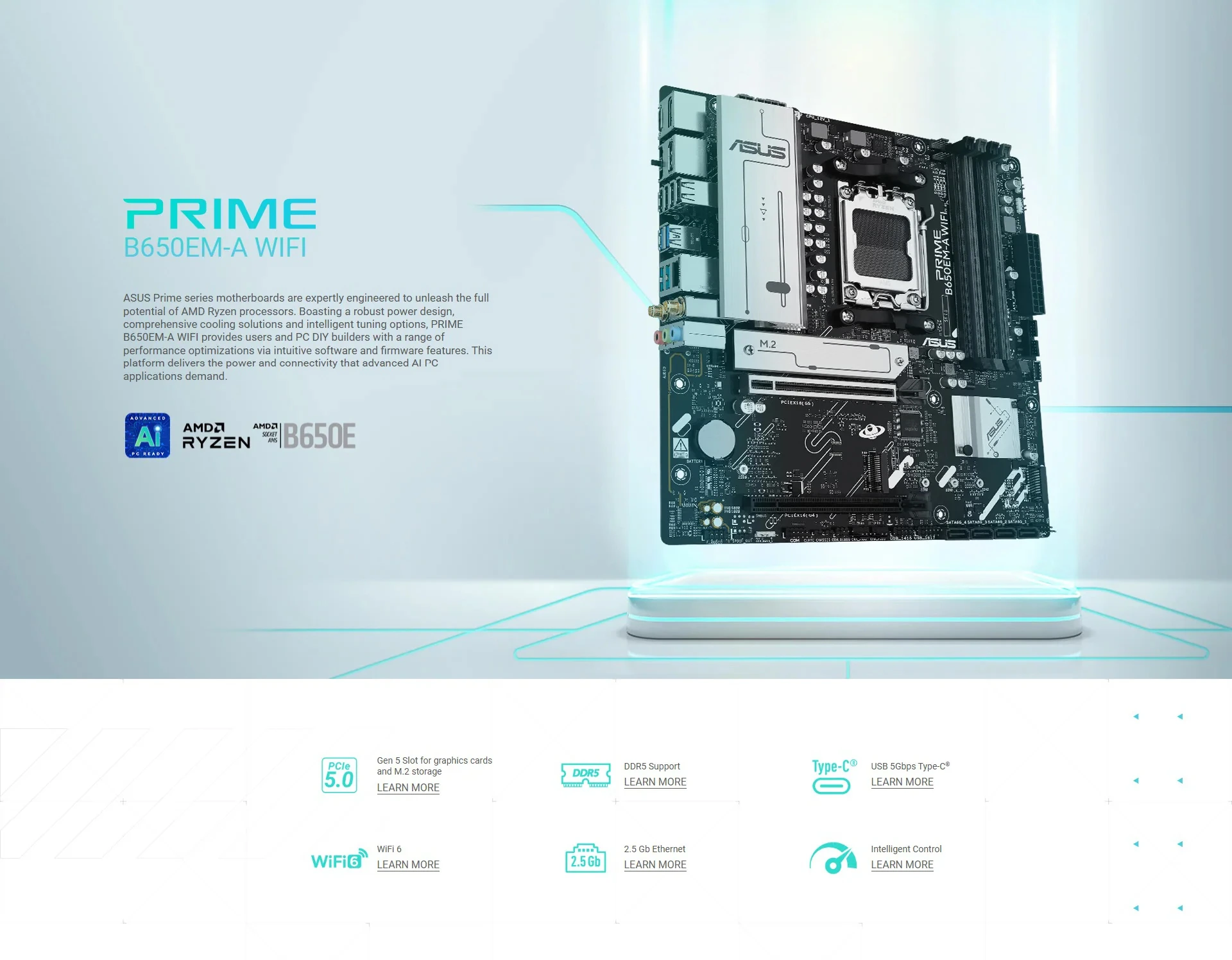

Asus Prime B650EM-A WiFi DDR5 AMD Micro-ATX Motherboard

Be the first to review this product

was ₱8,995.00 Special Price ₱8,695.00

Availability: In Stock

SKU

199291077297

Brands:

Details

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, 2 x DisplayPort, HDMI™, front USB 5Gbps Type-C® support, BIOS FlashBack™, Aura Sync

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AM5 Socket for AMD Ryzen™ Desktop Processors
Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® support

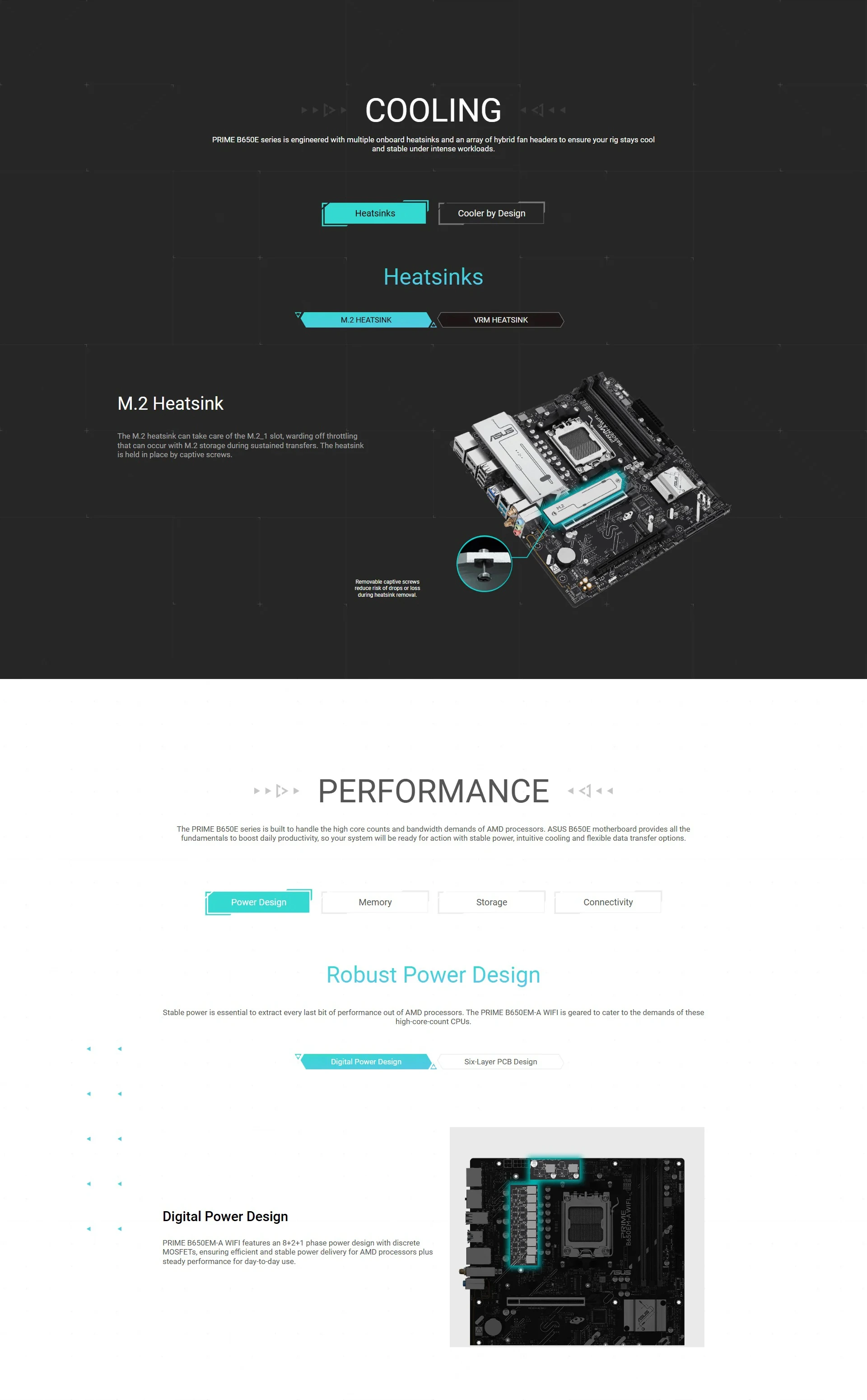

Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

More Information

Specifications

Model	PRIME B650EM-A WIFI
News & Updates	Visit ASUS Global website for latest updates & downloads
CPU Support	AMD Socket AM5 for Ryzen 9000 / 8000 / 7000 Series
Chipset	AMD B650
Memory	4× DIMM, up to 256GB DDR5 Supports up to 8000+ MT/s (OC) Dual channel \| EXPO \| AEMP ECC & Non-ECC Un-buffered DIMM
Graphics	2× DisplayPort (up to 8K@30Hz) 1× HDMI (4K@60Hz)
Expansion Slots	Ryzen 9000/7000: PCIe 5.0 x16 Ryzen 8000: PCIe 4.0 x16 (x8/x4) B650: PCIe 4.0 x16 (x1)
Storage	3× M.2 (PCIe 5.0 / 4.0 variants) 4× SATA 6Gb/s
RAID Support	Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10
Ethernet	Realtek 2.5Gb Ethernet \| ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6 (802.11ax) \| Bluetooth 5.4
USB Ports	Rear: 2× USB 10Gbps, 2× USB 5Gbps, 4× USB 2.0 Front: USB-C 5Gbps, 2× USB 5Gbps, 4× USB 2.0
Audio	Realtek 7.1 HD Audio Codec Audio shielding & premium capacitors

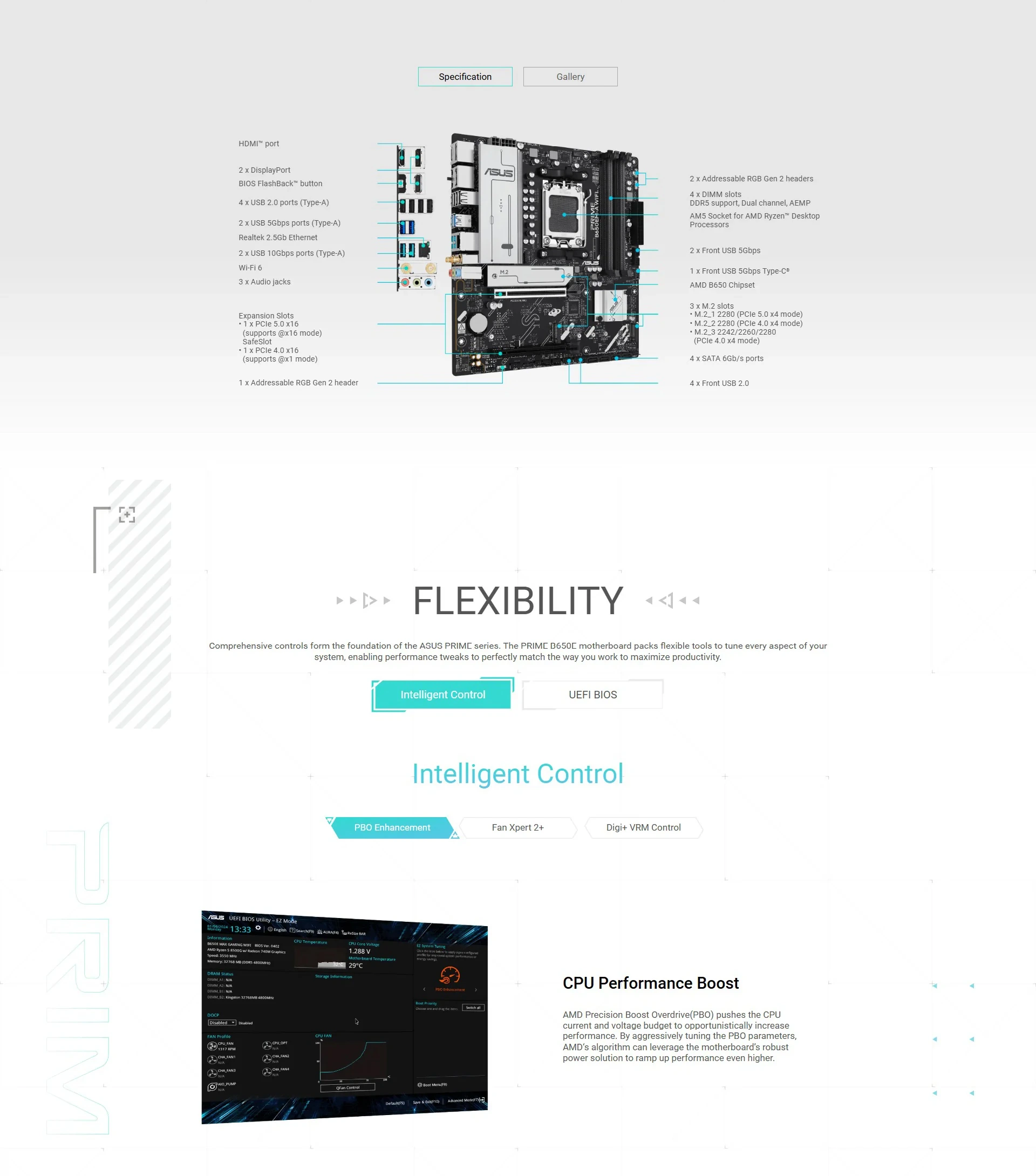

Back Panel I/O	USB: 2× USB 10Gbps, 2× USB 5Gbps, 4× USB 2.0 2× DisplayPort \| 1× HDMI \| 1× Wi-Fi module \| 2.5Gb LAN 3× Audio jacks \| BIOS FlashBack button
Internal I/O	1× 24-pin ATX \| 8-pin + 4-pin CPU 3× M.2 \| 4× SATA \| 3× ARGB Gen2 Fan headers: CPU, CPU OPT, AIO Pump, 3× Chassis
Special Features	ASUS 5X Protection III \| Q-Design \| Aura Sync ARGB M.2 & VRM Heatsink \| BIOS FlashBack
Software	Armoury Crate \| Fan Xpert 2+ \| AI Noise Cancelation AI Suite 3 \| ASUS CPU-Z \| Adobe Trial & more
BIOS	256Mb UEFI AMI BIOS
Accessories	2× SATA cables \| Wi-Fi antenna \| I/O shield M.2 screws & rubber \| Quick start guide
Operating System	Windows 11 / Windows 10 64-bit
Form Factor	mATX (24.4 × 24.4 cm)
