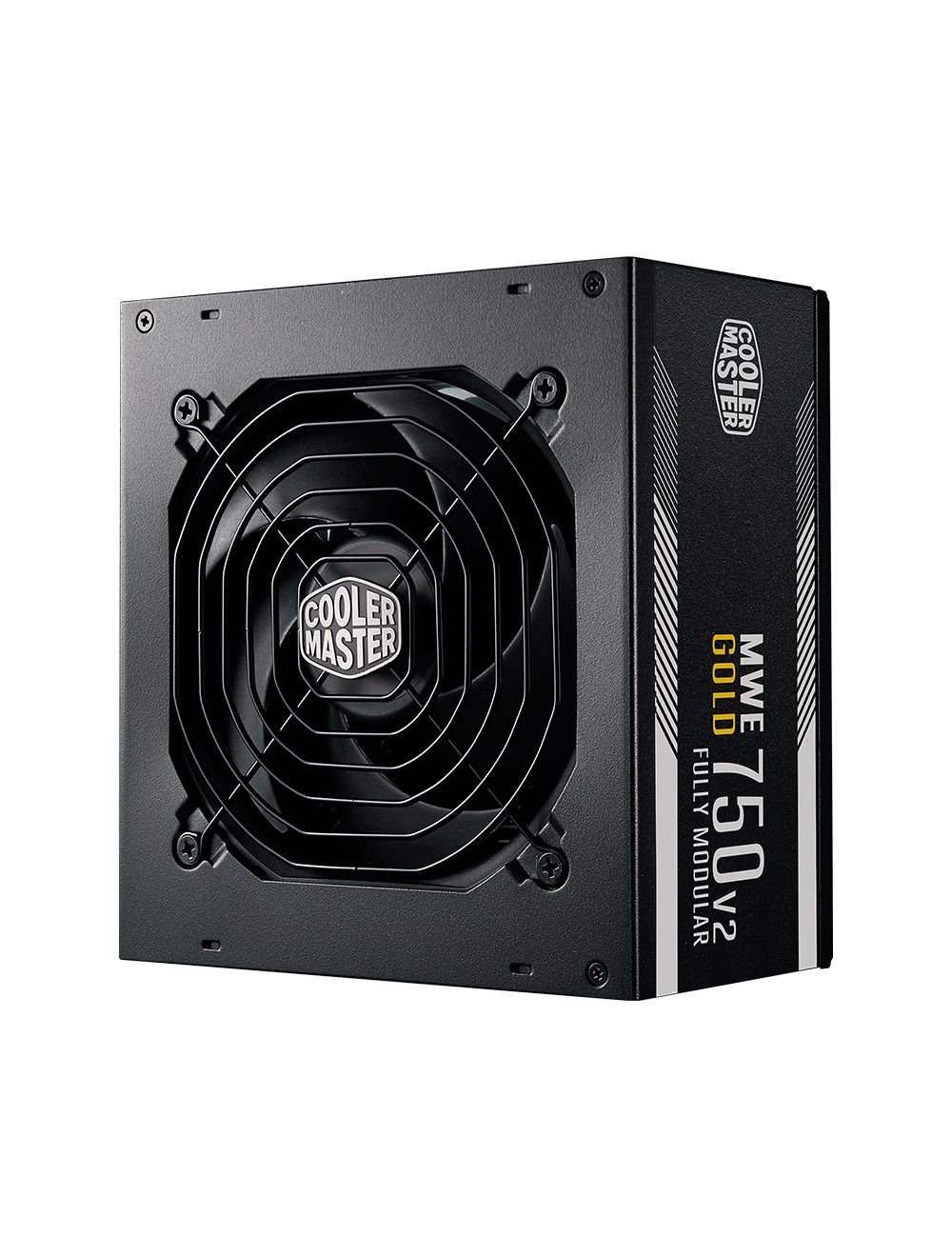

Cooler Master MWE Gold 750 V2 Full Modular Power Supply

Power UP

The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.

80 Plus Standard 230V EU Certified

It’s important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn’t need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn’t necessarily either of those things. The MWE White guarantees a typical efficiency of 85% while being both safe and reliable.

120MM HDB Fan

The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE White’s solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system’s temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.

Single +12V Rail

Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system’s overall performance. That’s why the MWE White only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.

DC to DC Circuit Design

Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White’s DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS efficiency, and reduced risk to your connected components.

Flat Black Cables

For many PC Builders with aesthetics in mind, cabling can be on of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE White uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.

Specifications:

Model: MPE-7501-AFAAG
ATX Version: ATX 12V V2.52
PFC: Active PFC
Input Voltage: 90-264V
Input Current: 10-5A
Input Frequency: 47-63Hz
Dimensions: 140 x 150 x 86mm
Fan Speed: 1500
Noise Level @20% 0 dBA
Noise Level @50% 17.8 dBA
Noise Level @100% 24.9 dBA
Efficiency: 90% @ Typical Load
80 Plus Rating:80 PLUS Gold
ERP 2014 Lot 3: Yes
Operating Temperature: 0-50°C
Power Good Signal: 100-500 ms
Hold Up Time: >16ms at 100% Load
MTBF: >100,000 hours
Protections:OVP, OPP, OTP, SCP, OCP, UVP
Regulatory: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
ATX 24 Pin Connectors: 1
EPS 4+4 Pin Connectors: 1
EPS 8 Pin Connector: 1
Sata Connectors: 12
Peripheral 4 Pin Connectors: 4
PCI-E 6+2 Pin Connectors: 4
80 Plus: Gold
Modular: Full Modular
Wattage: 500 - 750W
SERIE: MWE Gold Series
