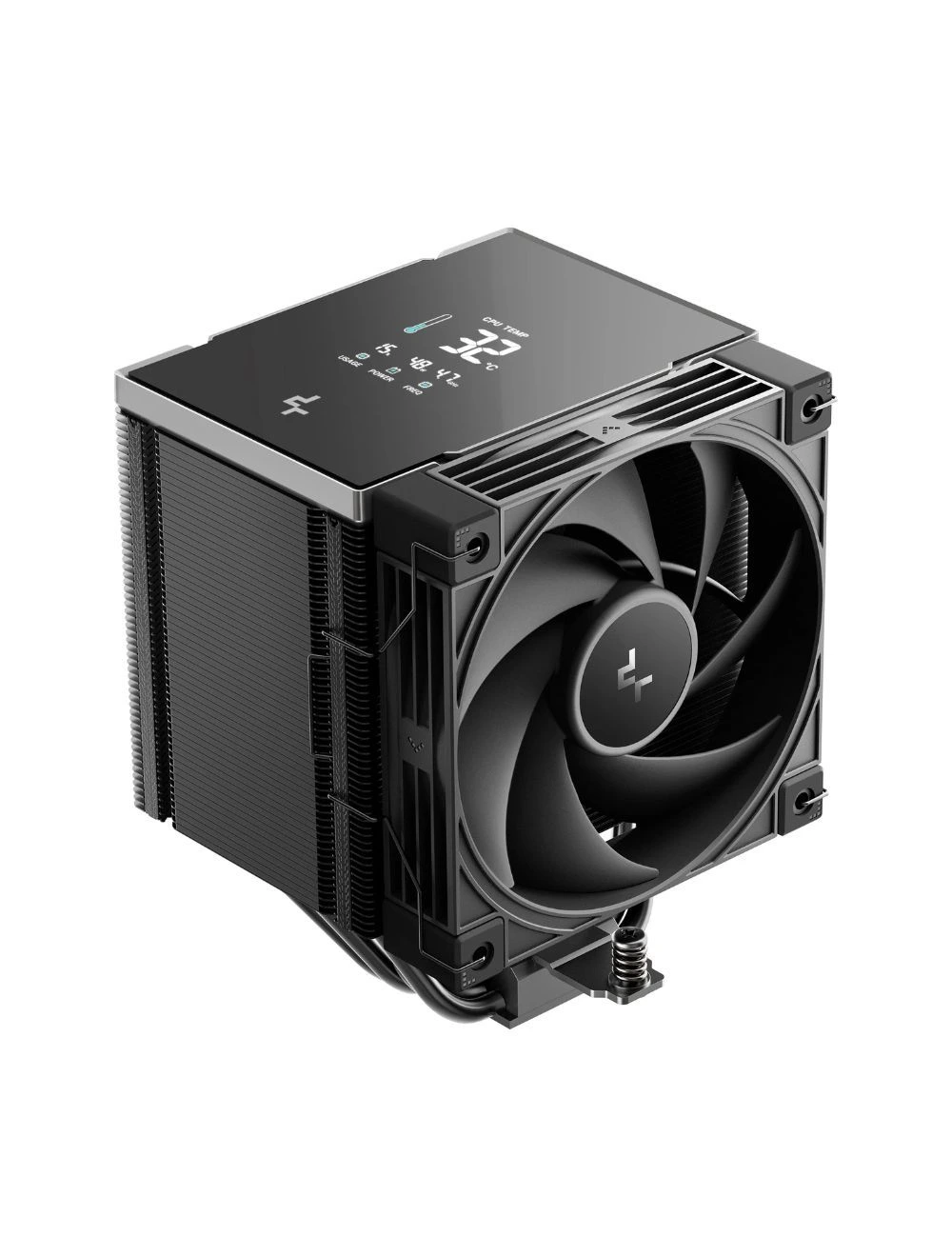

AK500 G2 DIGITAL NYX - CRAFTED TO ELEVATE
Further improved second generation of the iconic AK DIGITAL lineup with upgraded performance and a bold new aesthetic. It features five advanced copper heat pipes, a single-tower heatsink,
newly designed silent fan, and now sports a high-end quad-segmented digital display that delivers elite cooling backed by upgraded tech and real-time insight.
AI-TUNED CHILL. POWERED BY DeepCreative
With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
*Fans instantly shift to full speed when CPU hits above 80 °C, crushing heat without delay
Fans automatic revert to preset mode once the CPU temp drops below 80 °C
Feature
Silence AI Mode: Automatically balances Quiet and Performance based on load
Performance AI Mode: Automatically balances Quiet and Performance based on load
Sleep Mode:
Ultra-quiet (0–20 dBA) for noise-sensitive environments
Office Mode:
Silent-focused (20–25 dBA) for productivit
Gaming Mode:
Balanced performance and sound (25–33 dBA)
Overclocking Mode:
Unlocks the full potential of your system (25–40 dBA)
NEXT GENERATION PERFORMANCE
Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK500 G2 DIGITAL NYX reaches a bump in cooling performance compared to its predecessor
THE DIGITAL TOUCH
The standout addition of the AK500 G2 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
PROVEN AK DESIGN
The AK500 G2 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and five copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
Technical Specification
Product Dimensions: 129×117×159 mm(L×W×H)
Heatsink Dimensions: 127×89×153 mm(L×W×H)
Net Weight: 1362 g
Heatpipe: Ø6 mm×5 pcs
Fan Dimensions: 120×120×25 mm(L×W×H)
Fan Speed: 2200±10% RPM(max)
Fan Airflow: 63.4 CFM
Fan Air Pressure: 3.33 mmAq
Fan Noise: ≤31.45 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Hydro Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.25 A
Fan Power Consumption: 3 W
Display Module Rated Current: 0.13 A±10%
Display Module Rated Voltage: 5 VDC
Display Module Power Consumption: 0.65 W
Display Area: 29x39 mm
