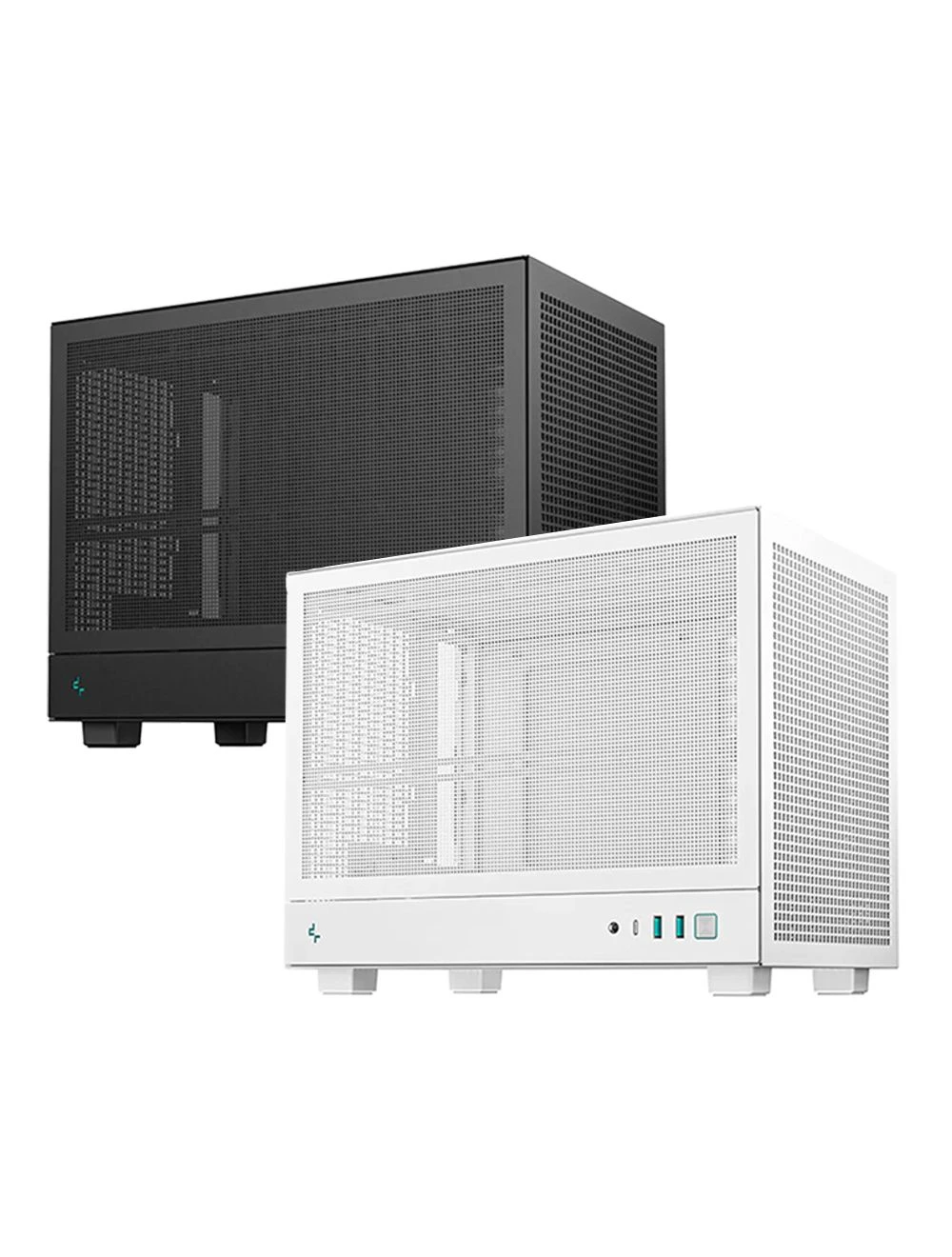

CH160 MESH
The CH160 MESH is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The new mesh configuration allows option to now add in a 240mm AIO. The internal layout provides a lot of flexibility for drives and PSU options.
Specifications:
Product Dimensions: 336×200×283.5mm(L×W×H)
Net Weight: 3.1Kg
Materials: ABS+PVC+SPCC
Motherboard Support: Mini-ITX
Front I/O Ports: USB3.0×2、Audio×1、Gen2 Type-C×1
3.5" Drive Bays: 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5" Drive Bays: 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Expansion Slots: 3 Slots
Pre-Installed Fans: None
Fan Support:
- Front: 1×120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
- Top: 2×120mm
- Side: 2×120mm
- Rear: 1×120mm
Radiator Support: Side：240mm
CPU Cooler Height Limit: 172mm
GPU Size Limit:
- Length: SFX/SFX-L: 305mm / ATX: 230mm
- Height: 138mm
- Width: 65mm (3 Slots)
Power Supply Type: ATX PS2（maximum length: 140mm）/ SFX / SFX-L
