Description

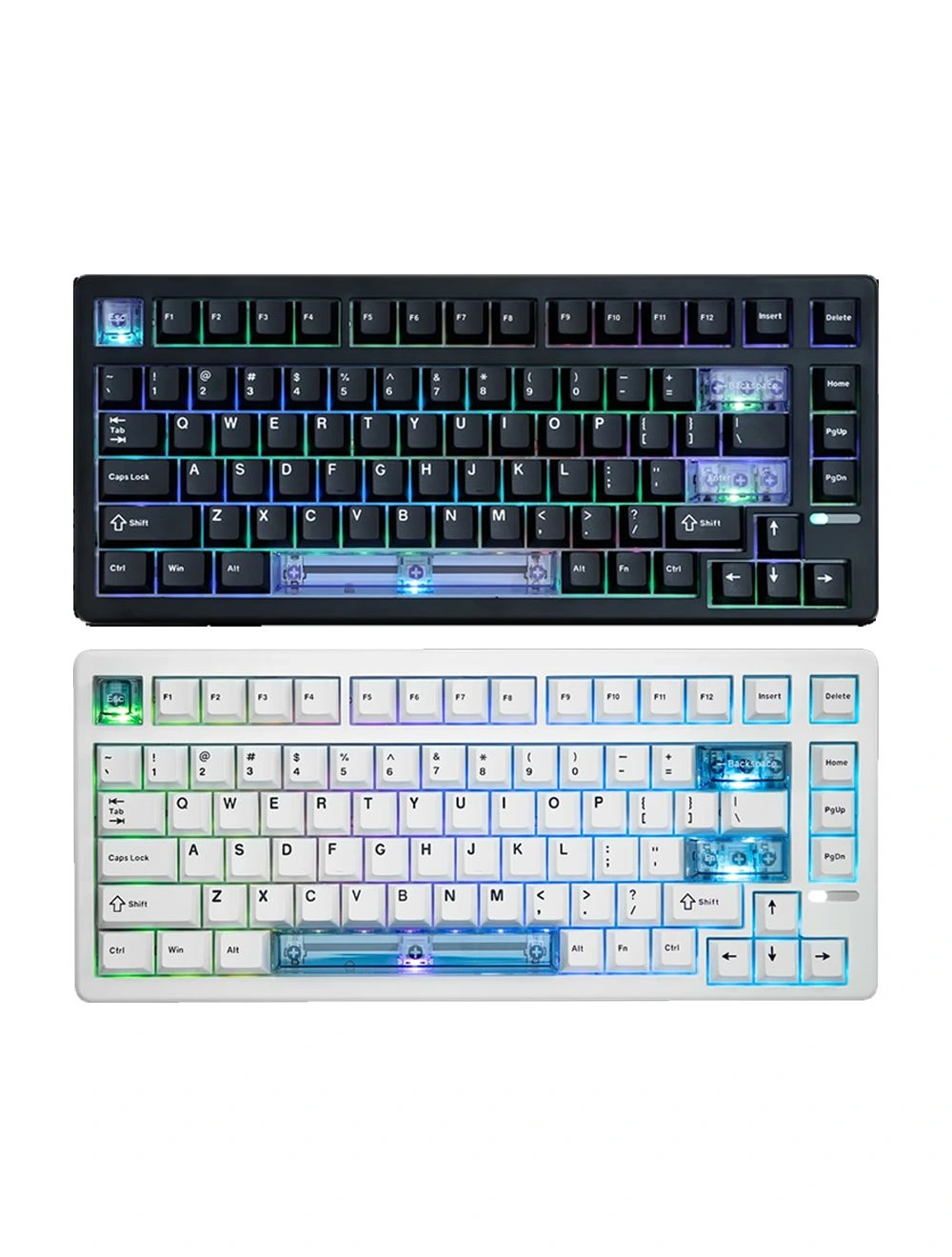

The EPOMAKER HE80 is a high-performance 75% US QWERTY layout wired mechanical keyboard designed for precision and speed. It features innovative Hall Effect magnetic switches, adjustable actuation, Dynamic Keystroke (DKS), and Snap Key (SOCD) functionalities, making it ideal for competitive gaming and efficient typing. With an 8KHz polling rate and 32KHz scan rate, it delivers ultra-low latency for a responsive user experience. The keyboard also boasts a creamy gasket-mount design with multiple layers of sound-dampening materials for a comfortable and quiet typing feel, along with per-key programmable RGB backlighting for extensive customization.
Technical Specifications
Brand: EPOMAKER
Model: HE80 Wired Hall Effect Keyboard

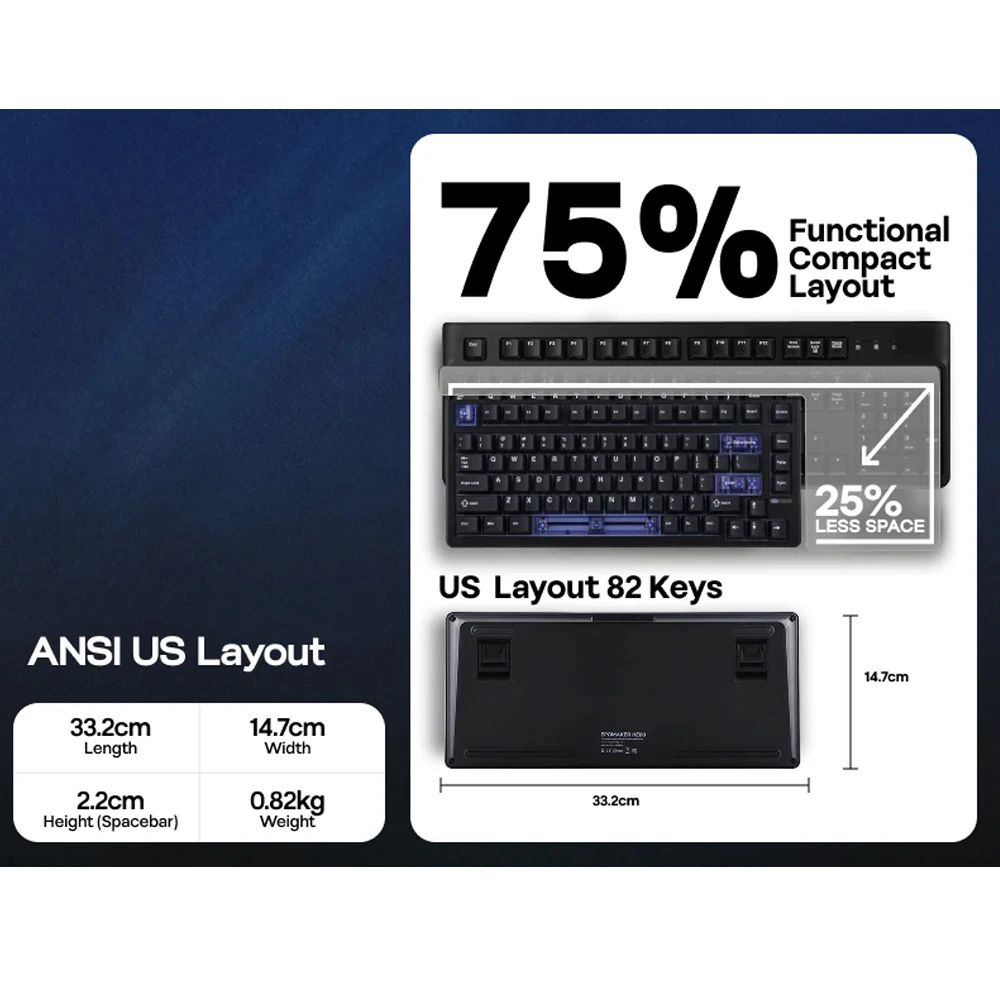

LayoutL: 75% Layout, US QWERTY
Number of Keys: 82 Keys
Battery: No Battery
Connectivity: Wired Only (USB A to USB C)
Front Heigh: t2.2cm
Typing Angle: 6, 8.5 and 11.5 degree
Case Material: Plastic
Plate Material: FR4 Plate
Flex-Cut: No Flex-Cut
Stabilizers: Plate-Mount Stabilizer
Mounting Structure: Gasket-Mount
Sound Dampening: 4 Layers of Paddings, including Latex Sandwich Foam, IXPE Switch Pad, Bottom Silicone and Bottom Foam

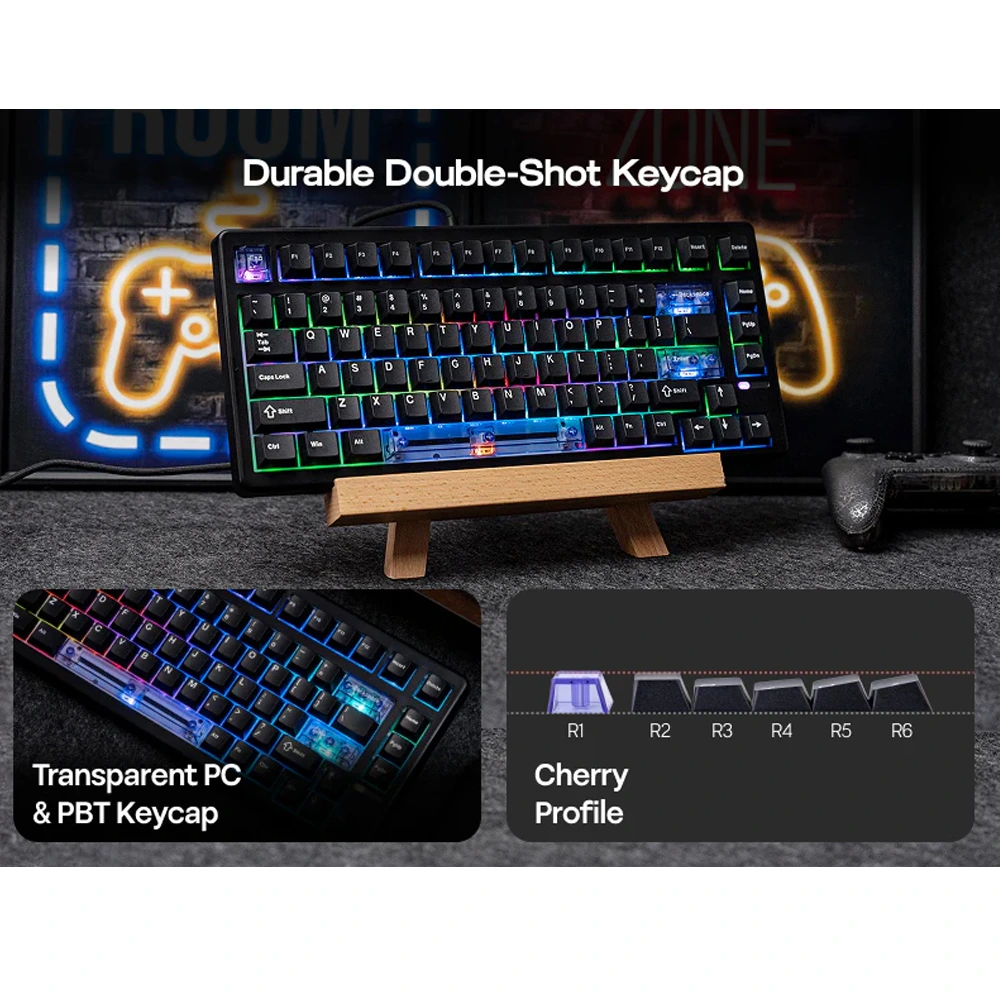

Keycaps Profile: Cherry Profile
Keycaps Material: PBT Keycap and Extra PC Transparent Keycap
Keycaps Manufacturing Technique: Double-Shot
Hot swappable: Yes, with other south-facing magnetic switch
RGB: Yes, per-key south-facing RGB backlight
Polling Rate: 8000hz polling in wired mode
Scan Rate: 32,000 scanning and 128,000 per-key scanning
Latency: 0.125ms
Anti-Ghosting: Yes, HE80 supports N-Key Rollover
Compatibility: Mac/WIN/Android/Linux/PS4/PS5/Switch

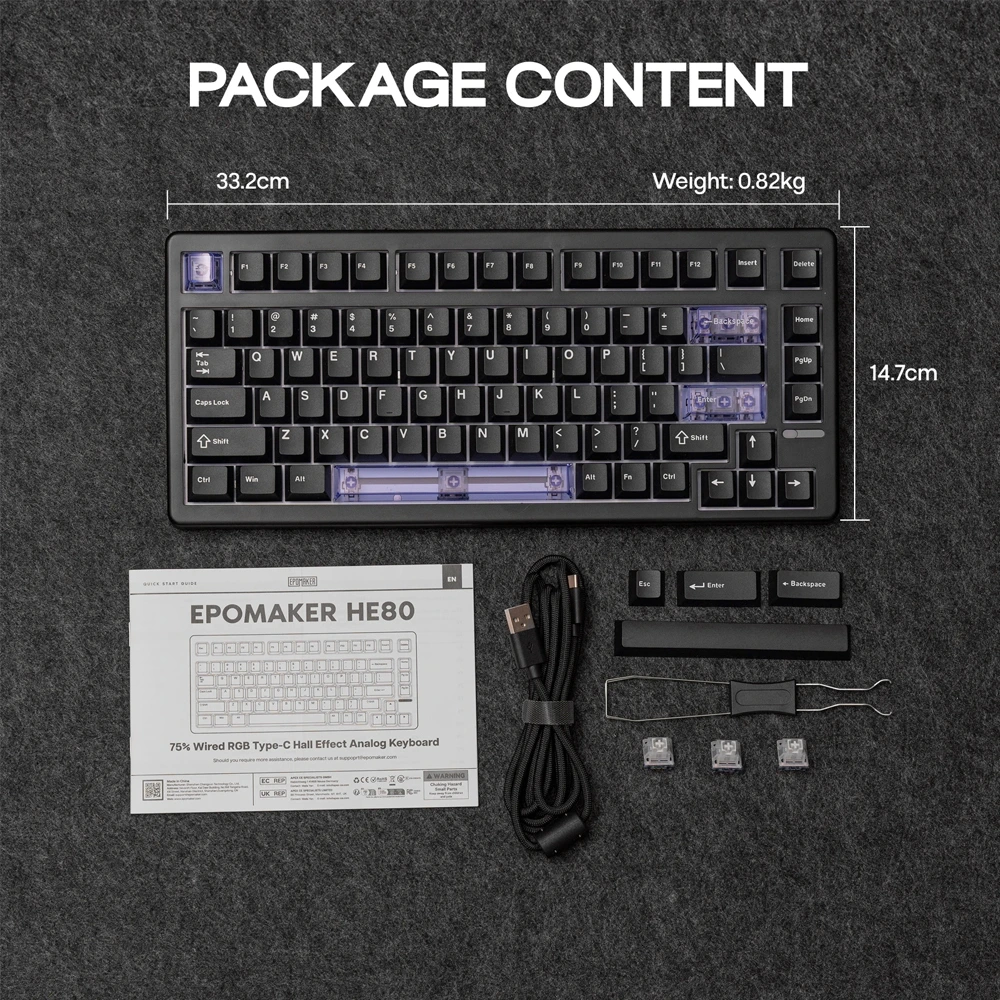

Keyboard Dimensions: 33.2*14.6*4.2cm
Keyboard Weight: 0.83kg
