KEY FEATURE
| Specifications | |
|---|---|

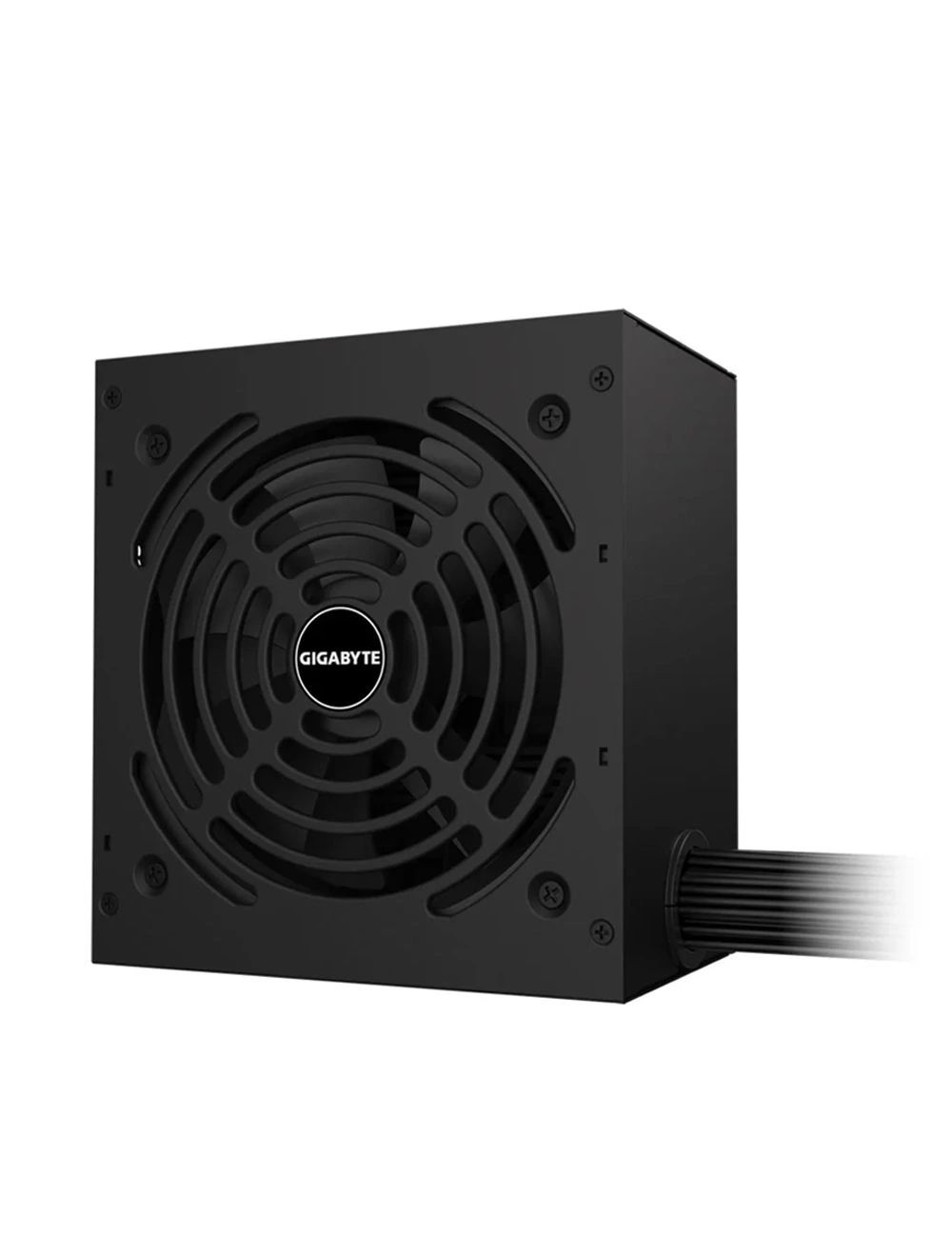

| Model | GP-P650G |
| Type | Intel Form Factor ATX 12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100–240 Vac (full range) |
| Input Current | 9–4A |
| Input Frequency | 60–50 Hz |
| Output Capacity | 650W |
| Dimensions | 150 × 140 × 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100–500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All Black |
| Connectors | ATX/MB 20+4 Pin × 1 : 600mm ×1 CPU/EPS 4+4 Pin × 2 : 600mm + 150mm ×1 PCI-e 6+2 Pin × 4 : 500mm + 150mm ×2 SATA × 6 : 500mm + 150mm + 150mm ×2 4 Pin Peripheral × 3 : 500mm + 150mm + 150mm ×1 |
