The second-generation online interactive DSP expands the possibilities for headphones. Through the recently updated MOONDROP application, users can customize and tune the Dawn Pro 2's parametric equalizer using a new, more precise, and user-friendly professional tuning interface. This interface allows adjustment of parameters such as filter type, frequency point, gain, and Q value. Furthermore, a comprehensive headphone frequency response database is provided during tuning, further enhancing usability and accuracy.
Dual Cirrus Logic flagship CS43198 DAC chips. Three independent LDO power supply chips. The Dawn Pro 2 uses dual flagship CS43198 decoding chips from Cirrus Logic and utilizes three LDOs to provide separate power to the decoding and digitizing chips. The independent crystal oscillator design creates a highly efficient, high-performance Hi-Fi audio circuit, providing greater drive, reduced distortion, and superior sound quality while consuming less power.
100-level smooth DAC volume control. The Dawn Pro 2 features virtually lossless 100-level volume control, separating device volume management from smartphone volume control. This design minimizes signal compression caused by volume adjustments and provides a smooth volume adjustment experience.
4Vrms output voltage, 124 + 124mW output. The focus is on balancing delicate tone and high output, not just high power. Excellent driving capability, compatible with most headphones.
The Dawn Pro 2 features an aluminum alloy casing for heat dissipation. Its casing is made of aerospace-grade aluminum alloy, formed using CNC machining and die-cutting. The surface treatment involves anodizing, enhancing texture and durability. For heat dissipation, the design is inspired by desktop HiFi systems. The vents are strategically placed above the chips to generate more heat, significantly improving cooling efficiency.
Specifications

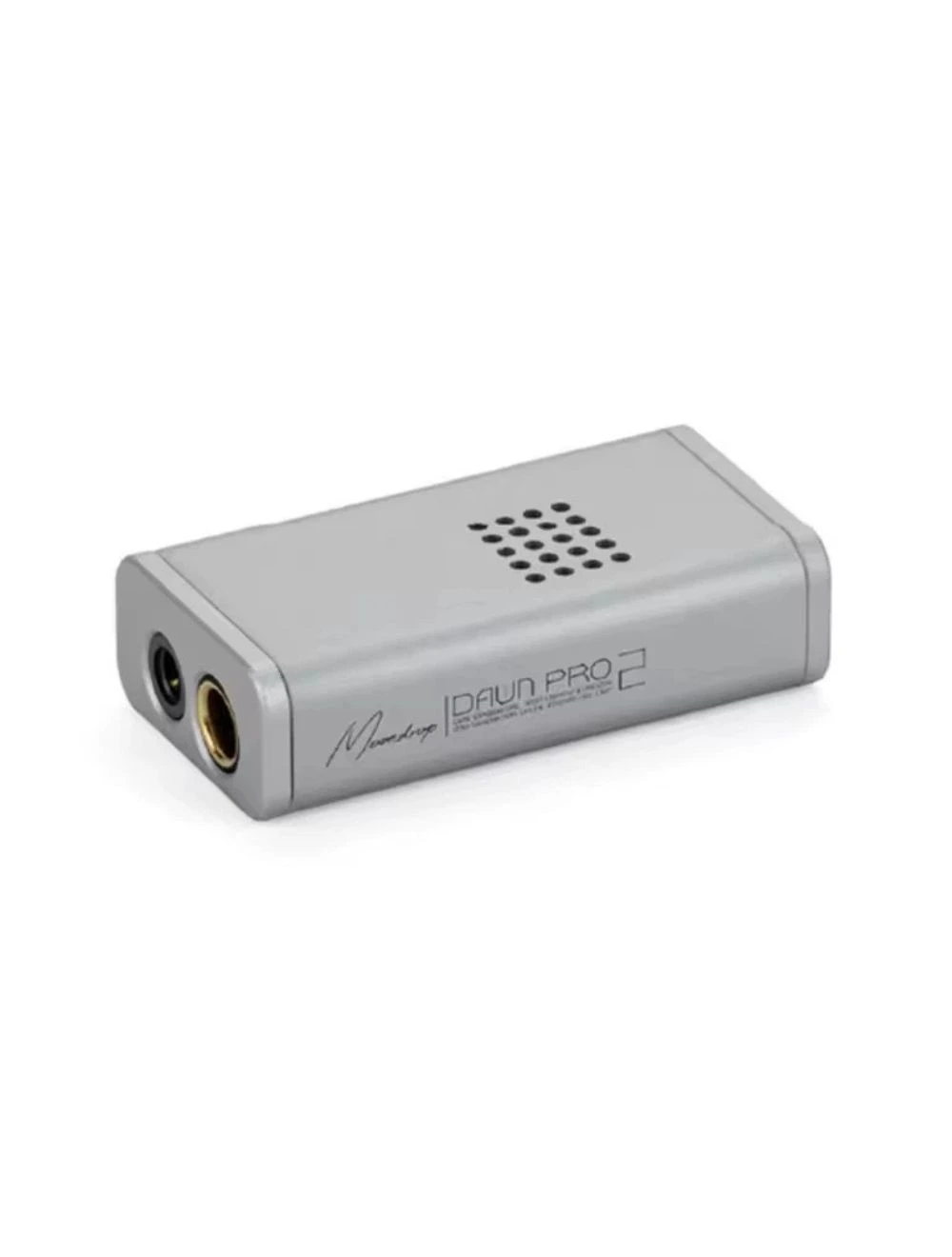

Product Name: DAWN PRO2 high-performance portable DAC/AMP
Earphone Jack: 3.5mm single-ended /4.4mm balanced jack
Dynamic Range(A-wt): 132dB@1kHz
THD+N: 0.00014%@1kHz
Output Magnitude: 4.1Vrms@0dBFS
Output Power: 124+124mW@16Ω THD+N<1%
Package List
DAWN PRO 2 * 1、
USB-C to USB-C cable * 1、
USB-A to USB-C adapter * 1、
User manual * 1、
Brand card * 1
