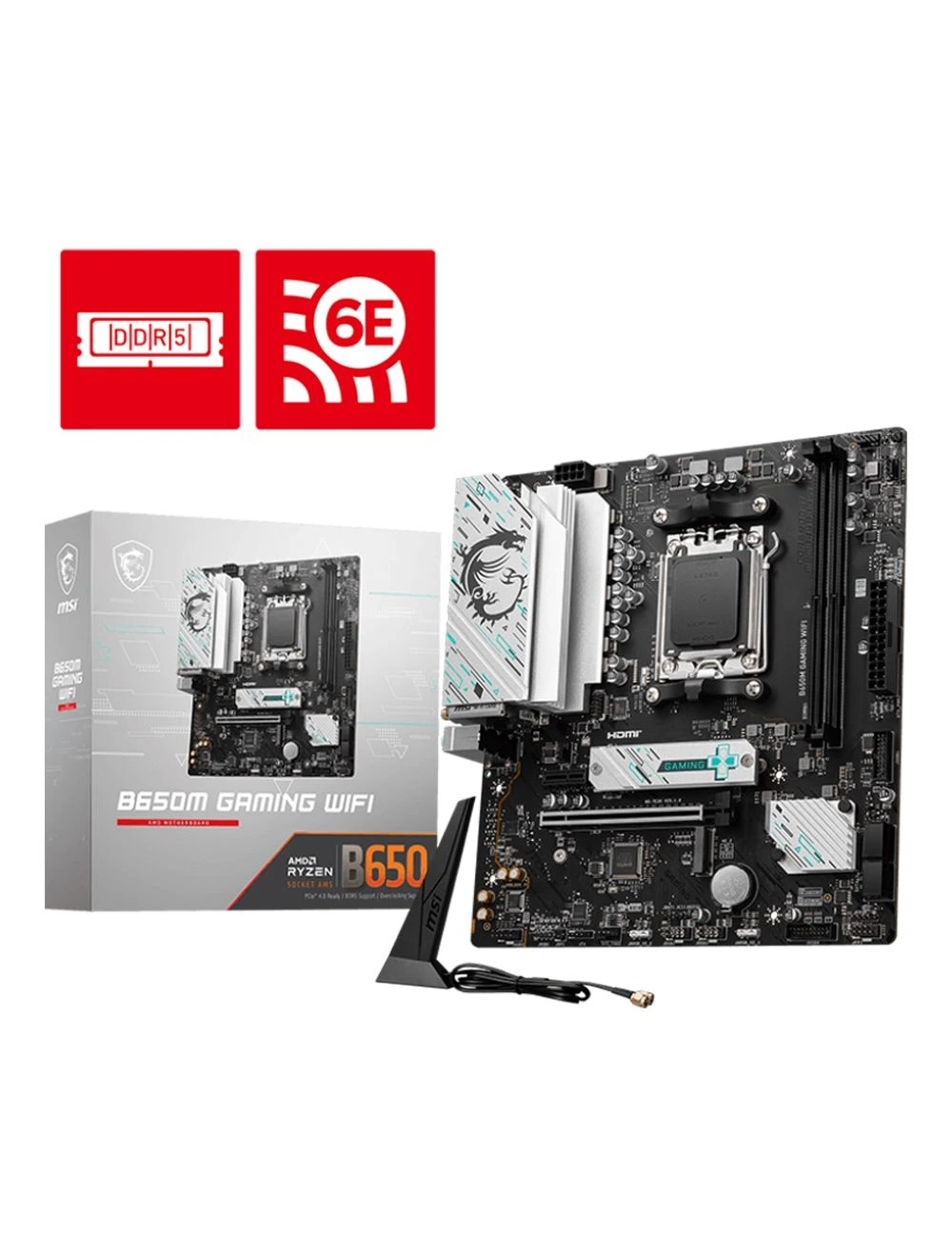

B650M GAMING WIFI Win the Competition The B650M GAMING WIFI is a gaming oriented mATX motherboard constructed around the latest AMD B650 chipset that balances value with premium hardware.
Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot
2 x DDR5 DIMMs with Memory Boost: Dual Channel (96GB Max. / 7800MHz OC)
Lightning Gen4 M.2 & M.2 Shield Frozr
8-Channel (7.1) HD Audio with Audio Boost
2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3
Features
Ryzen 7000 READY, HIGH PERFORMANCE - The B650M GAMING WIFI (mATX) outfitted with AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for enhanced CPU performance & stability
INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
DDR5 MEMORY, PCIe 4.0 x16 SLOT - 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64Gbps) and includes Steel Armor, secondary PCIe x1 slot supports PCIe 3.0
DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 64Gbps slots to prevent thermal throttling during hyper-fast SSD access
WI-FI 6E CONNECTIVITY - Network hardware includes an AMD Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 1 Type-C (5Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
