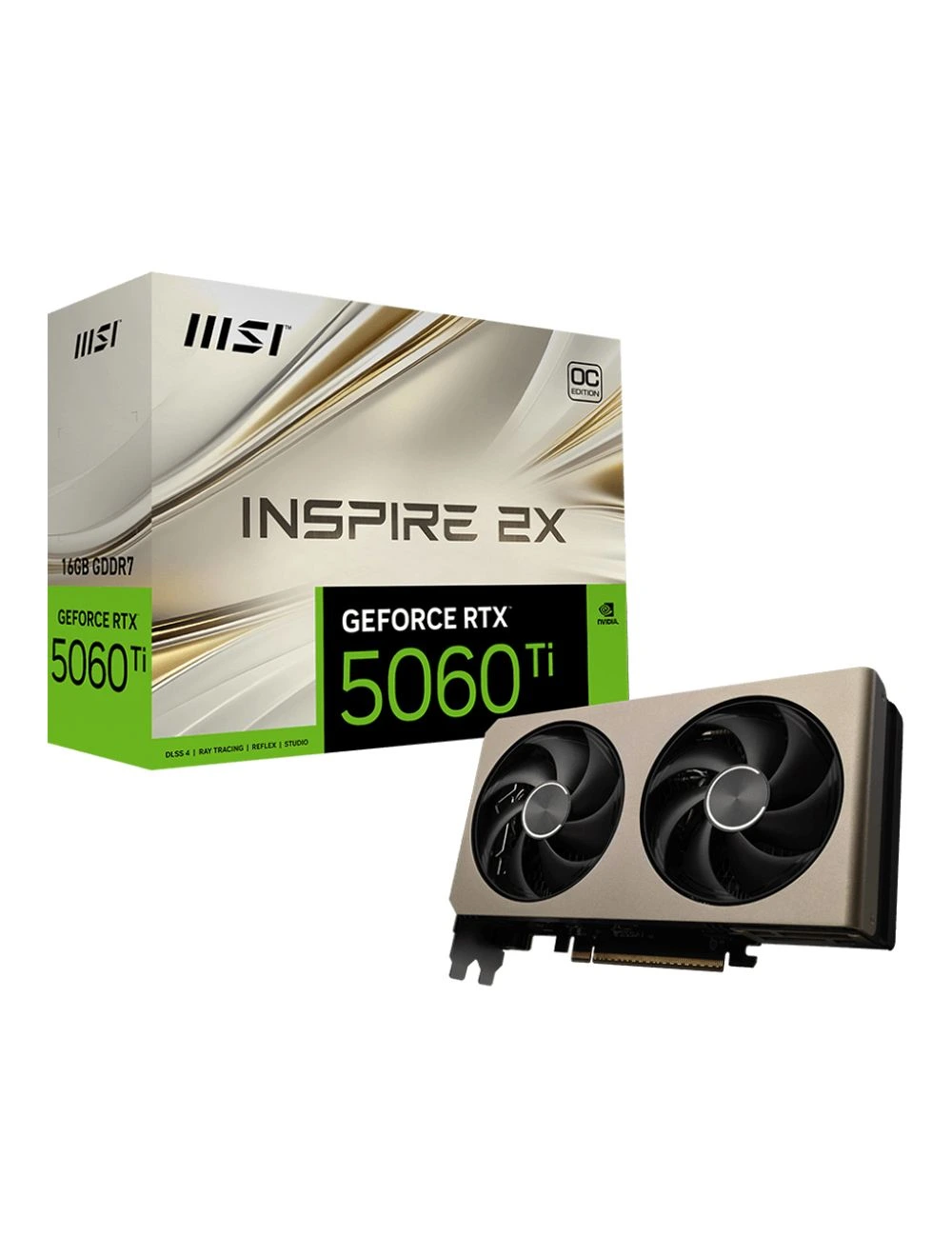

GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clock:
- Extreme Performance: 2632 MHz (MSI Center)
- Boost: 2617 MHz
STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
MSI Center: gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specification
Marketing Name: GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC
Model Name: G506T-16I2C
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
Interface: PCI Express® Gen 5 x16 (uses x8)
Core Clocks: Extreme Performance: 2632 MHz (MSI Center)
Boost: 2617 MHz
CUDA® CORES: 4608 Units
Memory Speed: 28 Gbps
Memory: 16GB GDDR7
Memory Bus: 128-bit
Output: DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support: Y
Power consumption: 180W
Power connectors: 8-pin x1
Recommended PSU: 600 W
Card Dimension (mm): 204 x 117 x 50 mm
Weight (Card / Package): 657g / 927g
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® technology: y
Digital Maximum Resolution: 7680 x 4320
