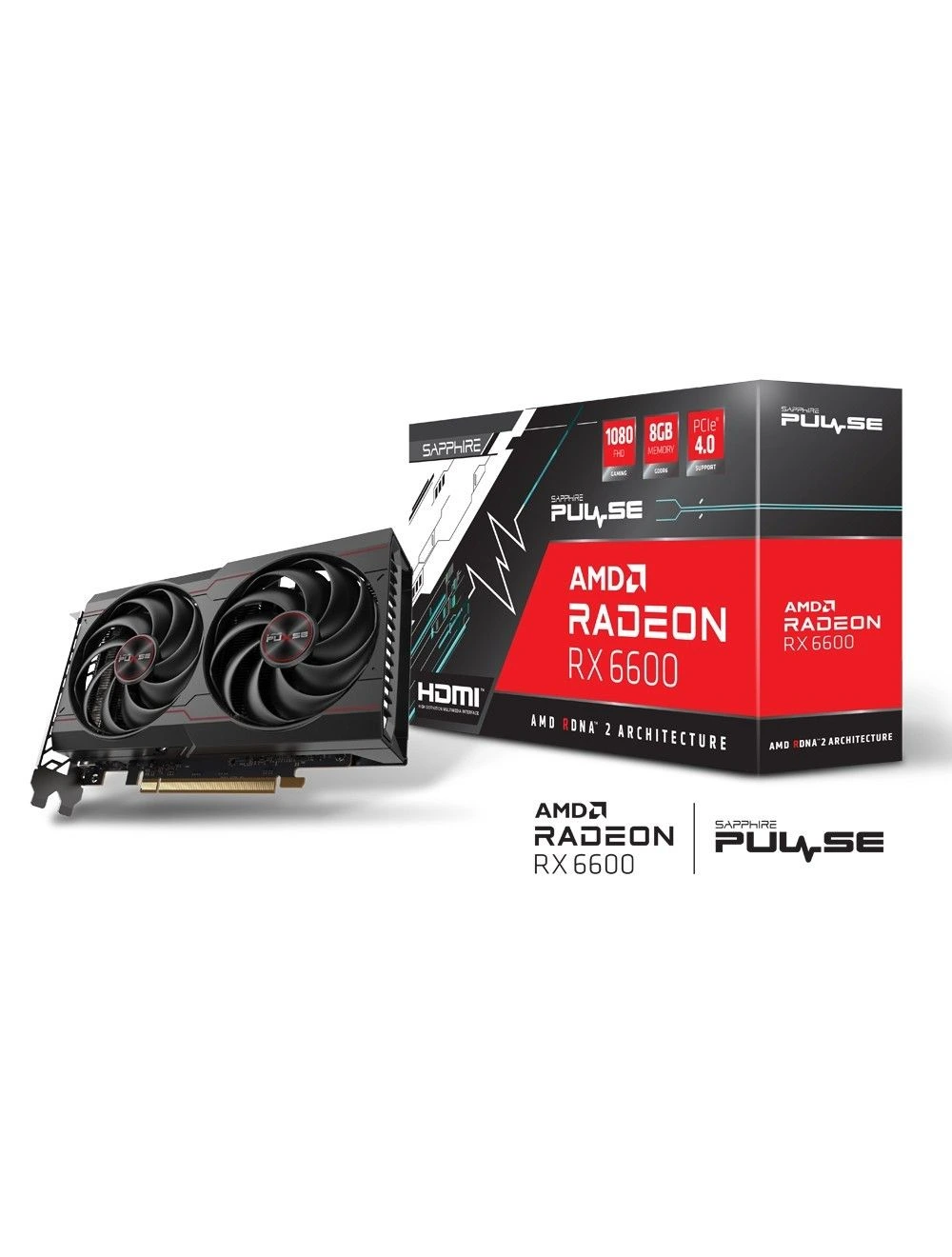

Sapphire Pulse AMD Radeon™ RX 6600 8GB DDR6 Graphics Card

SAPPHIRE PULSE AMD Radeon™ RX 6600

The SAPPHIRE PULSE AMD Radeon™ RX 6600 Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

SPECIFICATIONS

GPU: AMD Radeon™ RX 6600 Graphics Card, 7nm GPU, AMD RDNA™ 2 Architecture

Engine Clock:
Boost Clock: Up to 2491 MHz
Game Clock: Up to 2044 MHz
- Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
- Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors: 1792

Infinity Cache: 32MB

Ray Accelerators: 28

Memory Size/Bus: 8GB GDDR6

Memory Clock: 14 Gbps Effective

Displays: Maximum 2 Displays

Resolution: HDMI™: 7680×4320

DisplayPort1.4: 7680×4320

Interface: PCI-Express 4.0 x8

Output: 1x HDMI: 1x DisplayPort

BIOS Support: UEFI

Game Index: 1080P

Sapphire Features:
- Premium Digital Power Design
- Fuse Protection
- Dual-X Cooling Technology
- Intelligent Fan Control
- Precision Fan Control
- Metal Backplate
- Two-Ball Bearing Fans
- TriXX Supported
- TriXX Boost

AMD Features:
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- Smart Access Memory
- Infinity Cache
- 7nm GPU
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations

Cooling: Dual Fans

Form Factor: 2 slot, ATX

Dimension: 193(L)X 120.05(W)X 40.05(H)mm

Power Consumption: 140W (Board Power)

OS: Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit  operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement:
- Minimum 500 Watt Power Supply
- 1 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
