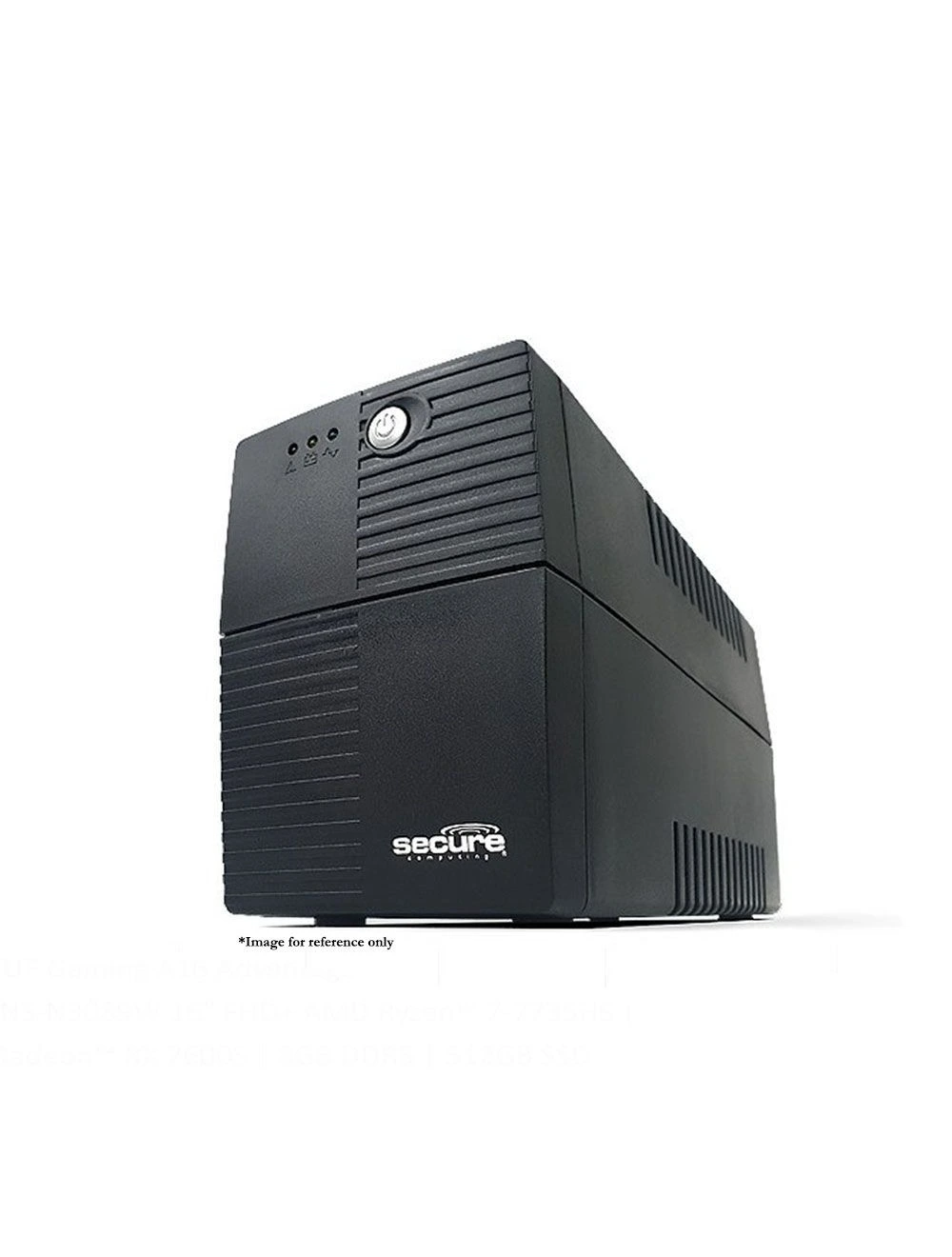

Secure UPS-2000VA Uninterruptible Power Supply

FEATURES

Inverter Compatible
Excellent microprocessor control
Guarantees hign reliability
Boost and buck AVR for voltage stabilization
Off-mode charging
Cold start function

SPECIFICATIONS

Input Voltage: 230VAC
Frequency: 50hz – 60hz (auto sensing)
Voltage Range: 140 - 300VAC
Capacity VA/Wattage: 2KVA/1400W
Transfer Time: 4 – 8 ms (typical)
Power Cord Length: 1.2meter
Outlet Socket: back-up x4, total of 4 sockets
Plug & Socket: NEMA 5-15p & NEMA 5-15r
Back up time: 6 – 30mins depending on computer load
Topology: Line-interactive with Built-in AVR
Wave Form: Pure Sine Wave under main mode, Simulated Sine Wave under battery mode
Protection: Overload. As load over 130%, UPS is protected in 3seconds. Load input. Fuse for overload and short circuit protection. Short Circuit. UPS cut off immediately.
Indicator: AC mode: LCD
Battery Mode: LCD
Fault Mode: LCD
Audible Alarm: Backup mode: sounding every 10secs
Low Battery: sounding every 1sec
Overload : sounding every 0.5sec
Fault: continuous sound
Noise Level: less than 45-55dB
Battery 12V/7Ahx1
Type. Sealed lead acid maintenance-free.
Protection. Auto-inspection, discharge protection and battery fault caution.
Battery. Normally, battery is charge once in three months.
Recharge time: Typical 9 – 10hrs
Dimension: L353 x W149 x H162 mm
Weight(kg): GW: 7.80kgs NW: 7.30kgs
