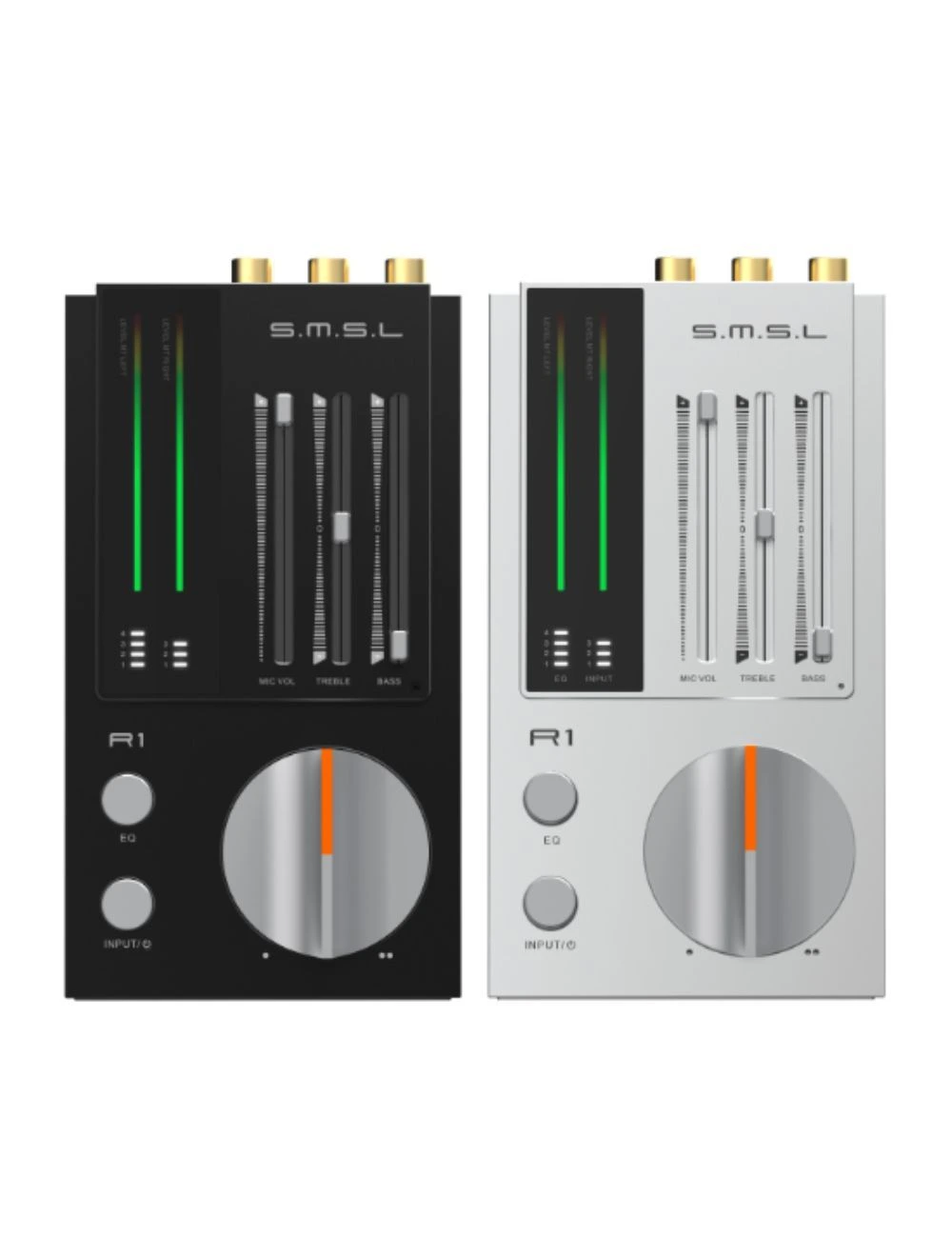

Small Size, Great Power
The SMSL R1 embraces a compact and portable form factor while delivering robust performance. Fitting neatly in the palm of your hand, its design merges functionality and aesthetics, enhanced by eye-catching RGB lighting. This makes the R1 not only a powerful audio tool but also a stylish addition to your gaming or music setup.
Immersive Gaming & Music Enjoyment
Equipped with dual headphone outputs and four EQ modes, the R1 adapts seamlessly to both gaming and music scenarios. Gunshots, footsteps, and ambient effects in games are rendered with precision, giving players an edge in reaction time and positional awareness. The same versatility ensures high-quality playback for music lovers, balancing power with clarity.
Built-in Microphone & Communication Support
Designed for gamers and streamers, the R1 features a dedicated microphone input. This allows smooth voice communication with teammates and reliable integration into live streaming setups, eliminating the need for additional devices.
Wide Compatibility & Flexible Inputs
Supporting USB, Optical, and Coaxial inputs, the R1 can be connected to a wide range of devices, including PS5, PCs, and other mainstream platforms. Its line-out option also allows pairing with desktop amplifiers or active speakers, ensuring maximum flexibility for different listening environments.
Adjustable EQ With Independent Control
Beyond its four built-in EQ presets, the SMSL R1 allows independent treble and bass adjustments. With a range of -9dB to +9dB, users can customize the sound signature to match personal preferences—whether boosting bass for gaming intensity or enhancing treble for detailed music playback.
Technical Excellence & Stability
Built with high-quality resistors and carefully selected components, the R1 ensures stable and reliable performance. It achieves low distortion (THD+N 0.009%), a dynamic range of 98dB, and powerful headphone output up to 120mW (32Ω), making it a strong contender in compact DAC/amp solutions.
Technical Details
Input: USB Optical Coaxial
Output: 3.5mm Headphones,4.4mm Headphones, Line out
Line Output Level: 1.5Vrms
THD+N (non-Weighted): 0.009%(-80dB)
Dynamic Range(non-Weighted): 98dB
SNR (non- Weighted): 98dB
Separation: 95dB
Headphone lmpedance: 32Ω
Headphone Output Power: 120mW(32Ω)
Treble and Bass Adjustment Range: -9dB~+9dB
Size: 76X34.6X143.8mm/2.99X1.36X5.66 in(WxHxD)
Weight: 316.4g/0.698lbs
Inside the Box
SMSL R1 x1
USB Cable( A/C to UsB-C) x1
2-in-1 Headphone Microphone Cable x1
User Manual x1
