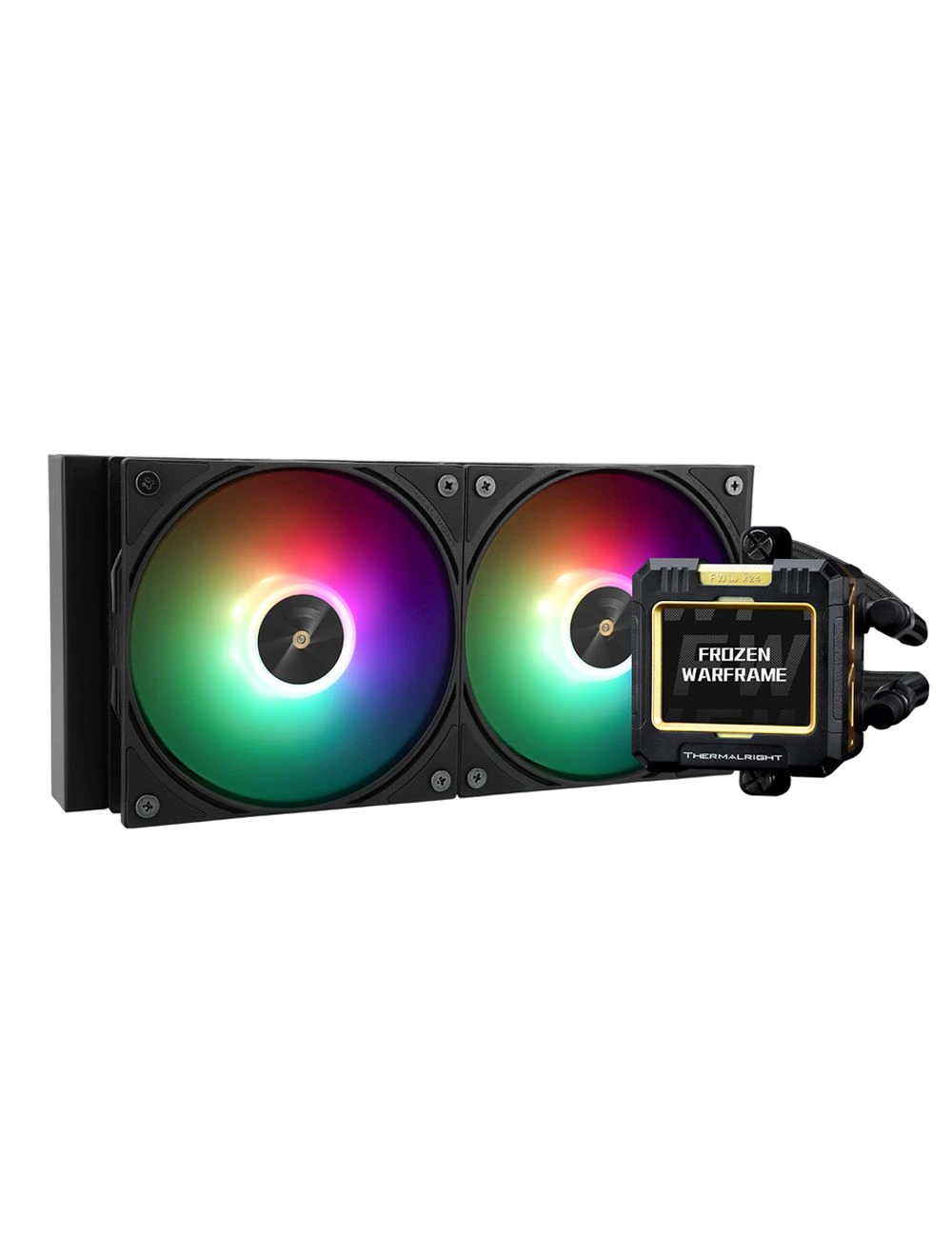

Excellent cooling combination - The CPU water cooling radiator adopts a water block with a detachable LCD screen + a 240-specification all-black nano-painted aluminum fin radiator + a polymer protective water pipe + a standard 120mm PWM air pressure fan, which is committed to creating an integrated water-cooled cooler with high cooling, high life, high-end, low noise and low evaporation.
Parameters of water cooling radiator - The size of the water cooling radiator is 277*120*52mm, the cold head: 69.2*69.2*60mm, the speed of the water pump is 3000RPM±10%, the voltage: DC 12V, the operating noise is≤23dBA, with the cooperation of the high speed of the water pump and the fan, it can ensure that the cooler cools the CPU for a long time and excellently.and the low noise of the water pump is an absolute advantage in many water cooling radiators.
High Heat Dissipation Triple Fans - The TL-P12-S fan is a wind-pressure fan with PWM temperature control function, the fan has excellent S-FDB bearings, and the blade design optimized for noise reduction not only reduces friction and vibration, but also reduces noise during operation. The high speed of 2000 rpm combined with the 240 size radiator can quickly take away the heat.
Excellent Bearing - The fan adopts STABLY-FDB bearing (abbreviation: S-FDB bearing), which can solve the problem of fan blade shaking in hoisting mode, and greatly improve the performance of the cooling fan. The S-FSB bearings have an industrial service life of up to 20,000 hours, ensuring the longevity of the CPU liquid cooling cooler.
Optimization of details - The pre-installed fan of the radiator and the included water guide clip can be easily installed, and the SS2 all-metal buckle is compatible with a variety of CPU models, so that the Thermalright's water-cooled radiator and air-cooled radiator can be switched freely. The IPS LCD screen with 320*240 resolution can restore the color more accurately, and the display screen can be freely customized.
Software description about the LCD screen - The power supply and data communication transmission of the LCD screen are provided by the USB interface of the motherboard 9PIN, please confirm the integrity of the wiring before software installation. The software can be downloaded from Thermalright's official website, and more details can be obtained from the store's customer service.
Specification:
Pump Dimensions：W69.2 mm x D69.2 mm x H60 mm
Pump Rated Speed：3000 RPM±10% (MAX)
Pump Noise Level：23 dBA(MAX)
Pump Power Consumption：3.4W (MAX)
Pump Rated Voltage：12V DC
Ampere：0.28±10% A
Connector：4 PIN PWM
Radiator：Aluminum
Pump MTTF：40000 Hours
TL-P12-S SPECIFICATION：
Dimension：L120 mm x W120 mm x H25 mm
Weight: 150 g
Rated Speed：2000 RPM±10% (MAX)
Noise Level：29.8 dBA (MAX)
Air Flow：70.84 CFM (MAX)
Air Pressure：2.63 mm H2O (MAX)
Ampere：0.17 A
Connector：4 PIN PWM
ARGB Connector：3 PIN 5V
Bearing Type：S-FDB Bearing
