Adopt dual polyurethane suspension composite liquid-crystal dome diaphragm N52 Rubidium magnet double- cavity internal magnetic circuit dynamic driver.
Using a DLP-3D printing cavity, usually reserved for high-end multi-drivers products and custom earphones, and the hand-made glue dropping and capping process.
Equipped with copper-plated silver cable with thicker diameter of single strand. Deliver outstanding objective indicators.
TRUTHEAR not only pursues excellent objective measurements, but also attaches great importance to the optimization and improvement of processing technology; The cavity of ZERO:RED is still a sandwich-like structure (front cavity, decorative panel, and a few drops of glue to fill the seams).
ZERO:RED houses double dynamic driver configuration, with a diameter of 10mm and the other diameter of 7.8mm, the mature internal magnetic circuit structure co-worked with flexible polyurethane suspension composite LCP liquid crystal dome diaphragm, but it has total different inner configuration between standard ZERO, which makes RED offer a better objective indicators while meeting the needs of R&D.
Specification

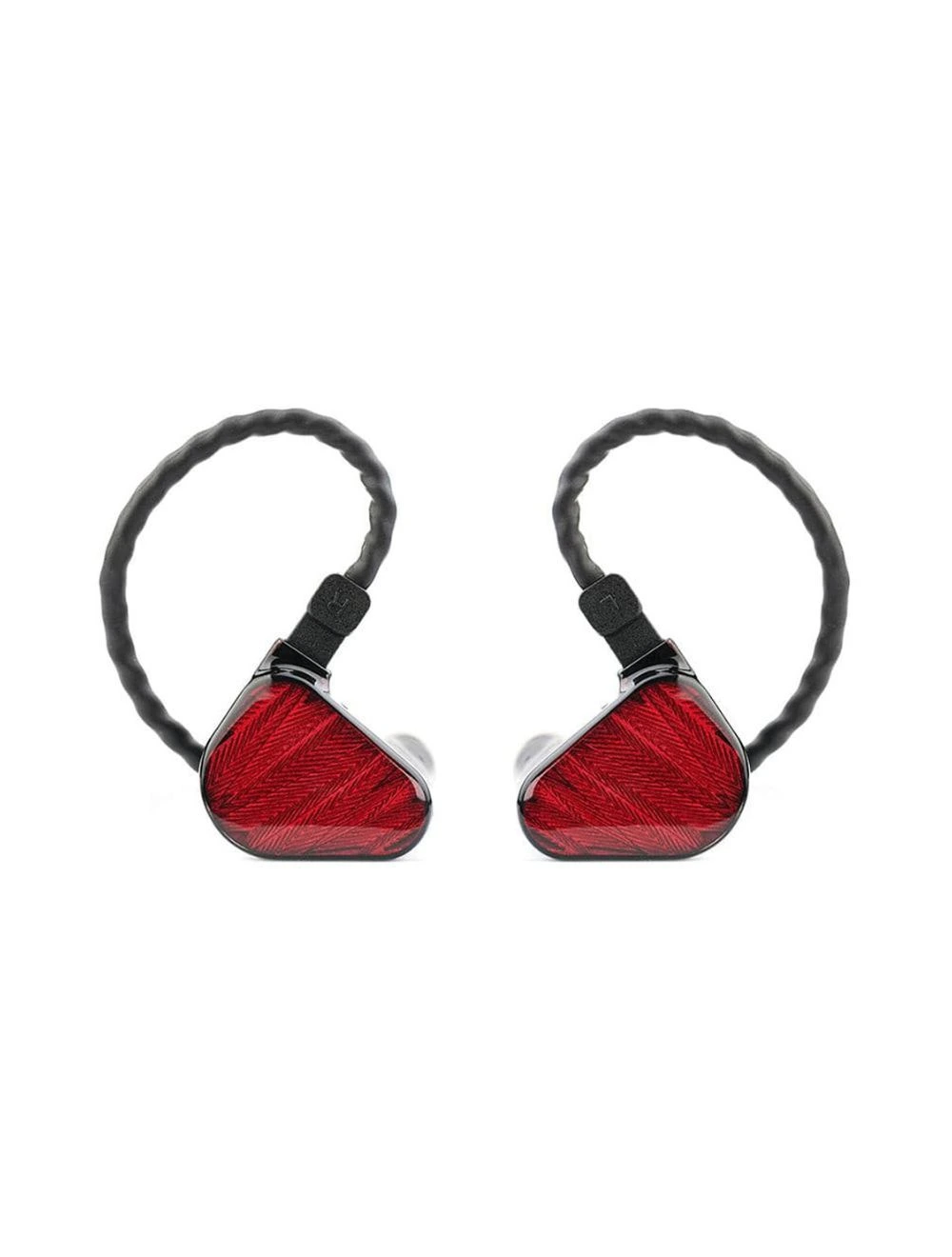

Name: TRUTHEAR ZERO:RED
Driver: 10mm + 7.8mm Dynamic Driver
Diaphragm: Polyurethane Suspension LCP Liquid Crystal Composite Diaphragm
Impedance: 17.5Ω±15% @1KHz
Sensitivity: 117.5dB/Vrms @1KHz
THD: <1%@1khz
Frequency Response Range: 20-40.5kHz (IEC61094, Free Field)
Effective Frequency Response Range: 20-20kHz (IEC60318-4, -3dB)
