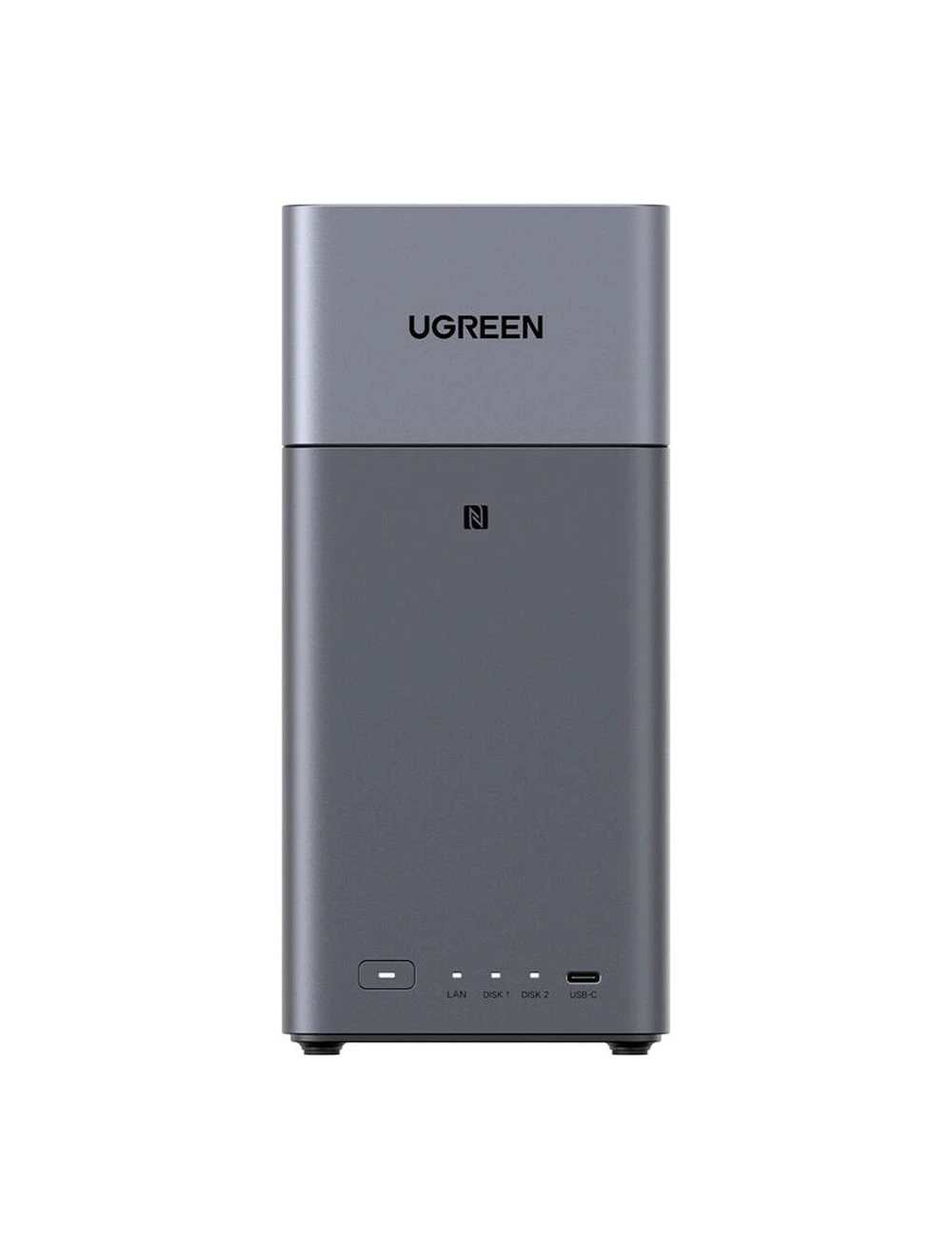

Ugreen NASync DH2300 2-Bay Desktop NAS Enclosure (DH2300/95432)

With the UGREEN NASync DH2300 2-Bay NAS Enclosure, you can store and share your photos and videos with friends and family. The 2.5/3.5" dual SATA bays provide up to 60TB of storage while the Gigabit Ethernet port allows for high-speed file transfers. The DH2300 comes with 4GB of LPDDR4X RAM and is powered by a Rockchip RK3576 8-Core processor. It features an HDMI port with an included cable that supports 4K, allowing you to turn the DH2300 into a media server for home entertainment.

Key Features

• 2 x 2.5/3.5" Bays
• Rockchip RK3576 8-Core CPU
• 4GB of LPDDR4X RAM
• 32GB eMMC Flash Memory
• 1 x Gigabit Ethernet LAN Jack
• RAID 0, 1 | JBOD
• HDMI | USB-C | USB-A
• UGOS Pro Operating System

Max Storage Capacity
The DH2300 features two drive bays for 3.5 or 2.5" hard drives, supporting 30TB in each bay for a total of 60TB of storage.

Supported RAID Modes
The DH2300 supports both RAID 0 and RAID 1 modes. If you prefer to use the drives separately, there is also a JBOD option.

Connectivity

1 x Gigabit Ethernet LAN
1 x HDMI (4K supported)
1 x USB-C 3.2 Gen 1 (5 Gb/s)
2 x USB-A 3.2 Gen 1 (5 Gb/s)

Specification

Key Specs:  RAID
Yes: Supported RAID Modes: 0 / 1
Number of Bays:  2x 2.5"/3.5"
Inputs/Outputs
1x HDMI
1x USB-C 3.0 / 3.1/3.2 Gen 1
2x USB-A 3.0 / 3.1/3.2 Gen 1

Computing
CPU:  8-Core
Processor:  Rockchip RK3576
Memory:  4 GB
RAM Configuration / Capacity:  1x User-Replaceable 4 GB / 1 Slot Supporting up to 4 GB (SO-DIMM)
Drives:  RAID
Yes: Supported RAID Modes: 0 / 1

General
Number of Bays:  2x 2.5"/3.5"
Maximum Capacity:  With Drives Installed up to 60 TB
Inputs/Outputs
1x HDMI
1x USB-C 3.0 / 3.1/3.2 Gen 1
2x USB-A 3.0 / 3.1/3.2 Gen 1
Media Card Slots:  No
PCI Expansion:  No

Networking
Link Aggregation and Failover Support:  No
iSCSI Support:  No
Software:  Installed Operating System
UGOS Pro:  Mobile App Compatible
Yes: Android & iOS

Security
Encryption:  No
Security Features:  No

Physical
Operating Conditions:  32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Cooling:  No
Dimensions:  8.41 x 5.9 x 3.9" / 21.37 x 15.1 x 9.8 cm

Packaging Info
Package Weight:  3.945 lb
Box Dimensions (LxWxH):  9.3 x 8.4 x 7.7"
