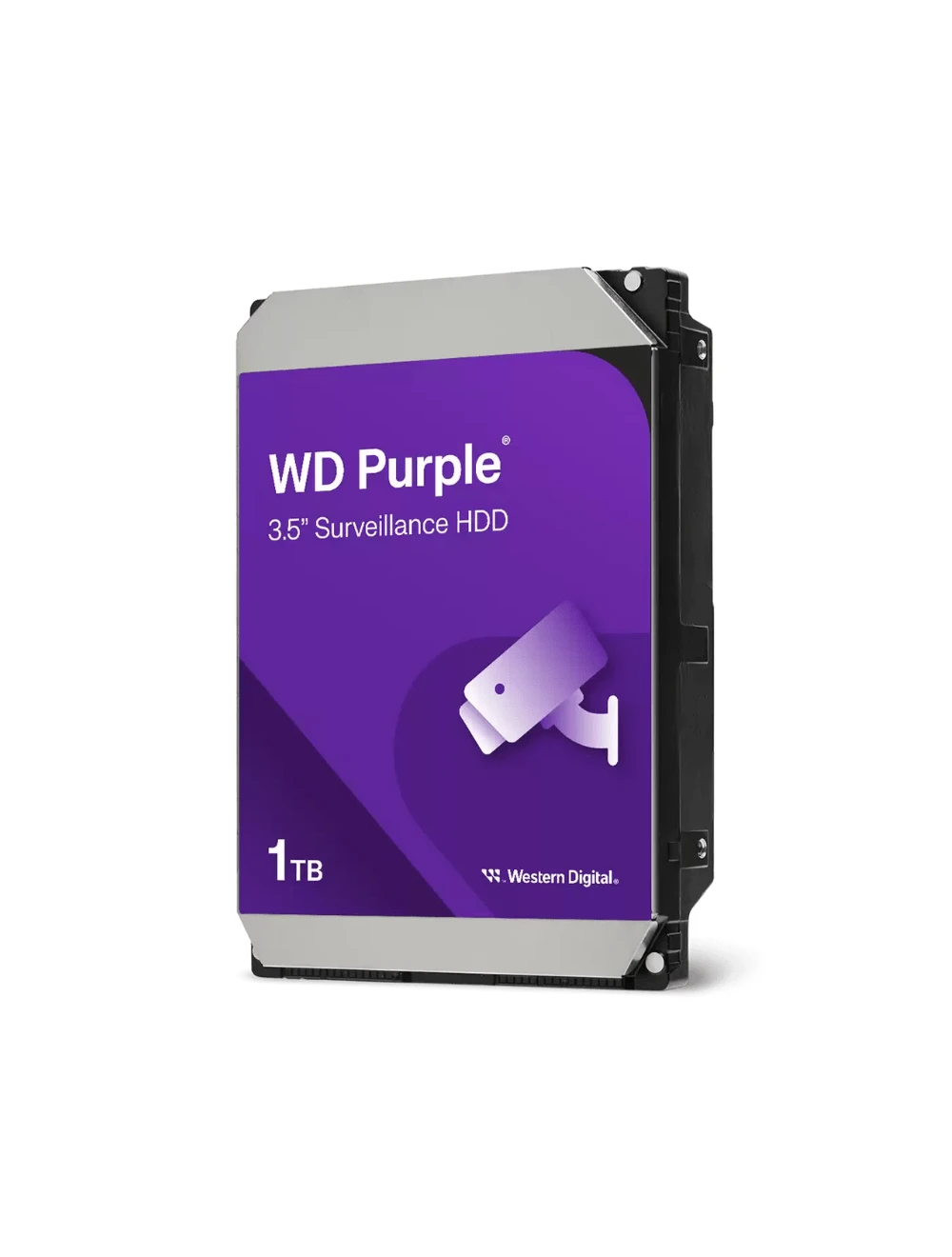

Uncompromising Surveillance Storage
WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.
Full Specifications
Features
- Engineered for mainstream surveillance systems
- WD AllFrame technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to mainstream surveillance applications
- Supports up to 180TB/yr workload rate and up to 16 bays
Capacity: 1TB
Form Factor: 3.5-Inch
Connector: SATA
Compatibility:
- Up to 64 HD cameras
- Up to 16 drive bays
- AllFrame firmware technology
Interface: SATA
Transfer Rate: up to 110MB/s
Disk Speed (RPM): 5400 RPM
Recording Technology: CMR
Cache Size: 64MB
Warranty: 3-Year Limited Warranty
Dimensions (L x W x H): 147mm x 101.6mm x 26.1mm
Weight: 0.45kgs
Operating Temperature: 0°C to 65°C
Non-Operating Temperature: -40°C to 70°C
Certifications: BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
