Specifications
General Specifications
TIM: MX-6 (0.8 g)
Operating Ambient Temperature: 0—40 °C
Pump: 800–2800 rpm
(PWM controlled)
Current | Voltage: 0.35 A | 12 V DC
Cold Plate: Copper, Micro Skived Fins
Tube Length: 450 mm
Tube Diameter: Outer: 12.4 mm
Inner: 6.0 mm
Weight: 1897 g
Compatibillity
Intel: LGA1851, LGA1700
AMD: AM5, AM4
PI | NNPI: 378 | 310
Radiator
Material: Aluminium
Dimensions: 317 (L) x 138 (W) x 38 (H) mm

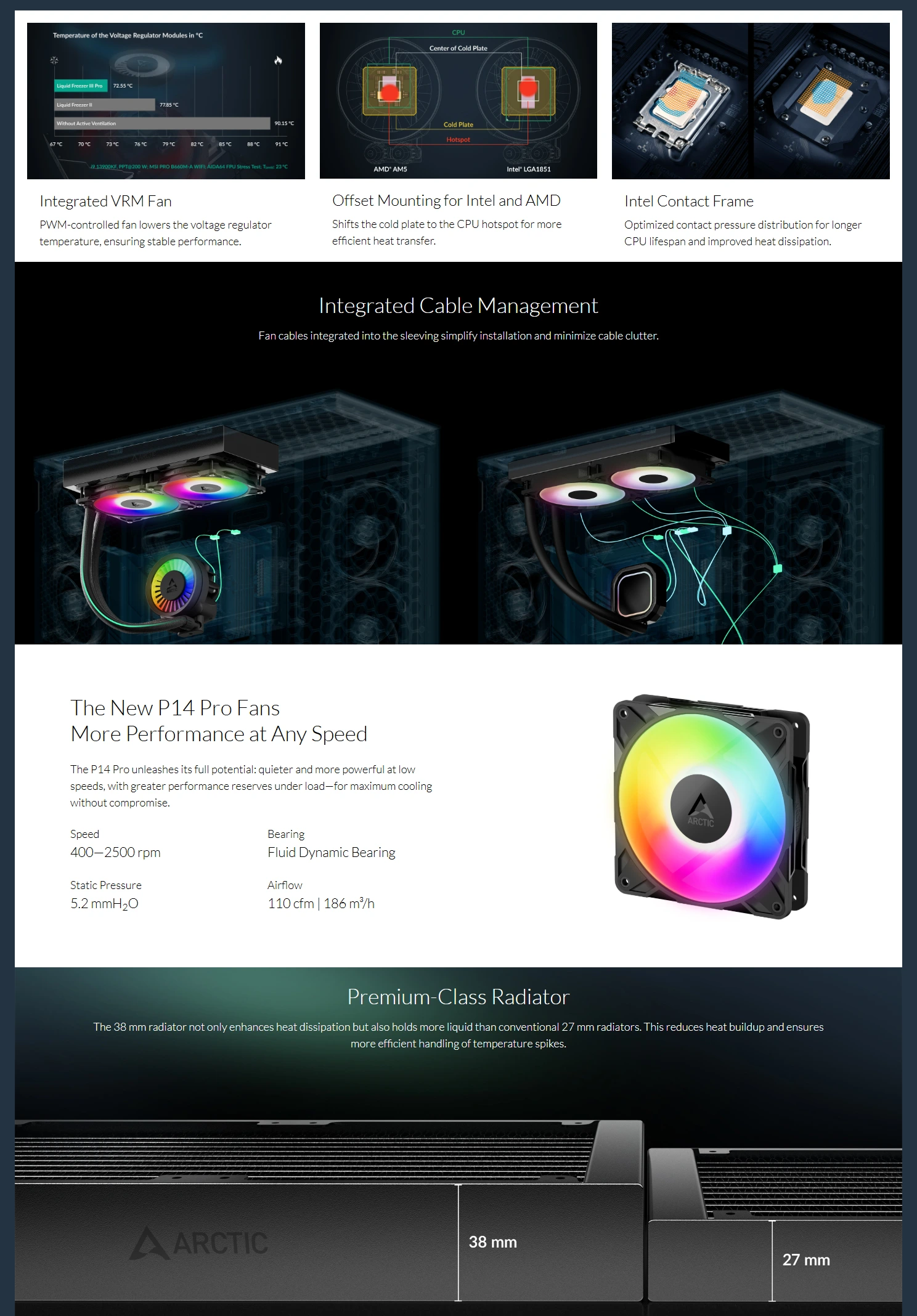

VRM Module
VRM Fan: 400–2500 rpm
(PWM-controlled)
Current | Voltage: 0.05 A | 12 V DC
LEDs: 12x A-RGB Gen2 LEDs
Current | Voltage: 0.40 A | 5 V DC
Radiator Fan
General: 2x P14 Pro A-RGB
Speed: 400–2500 rpm
Airflow: 110 cfm | 186 m³/h3/h
Static Pressure: 5.2 mmH2O
Bearing: Fluid Dynamic Bearing
Current | Voltage: 0.35 A | 12 V DC
Connector: 4-Pin Fan Plug
RGB
LEDs12x A-RGB Gen2 LEDs
Current | Voltage: 0.40 A | 5 V DC
Connector: 3-Pin A-RGB Plug + 3-Pin Socket
