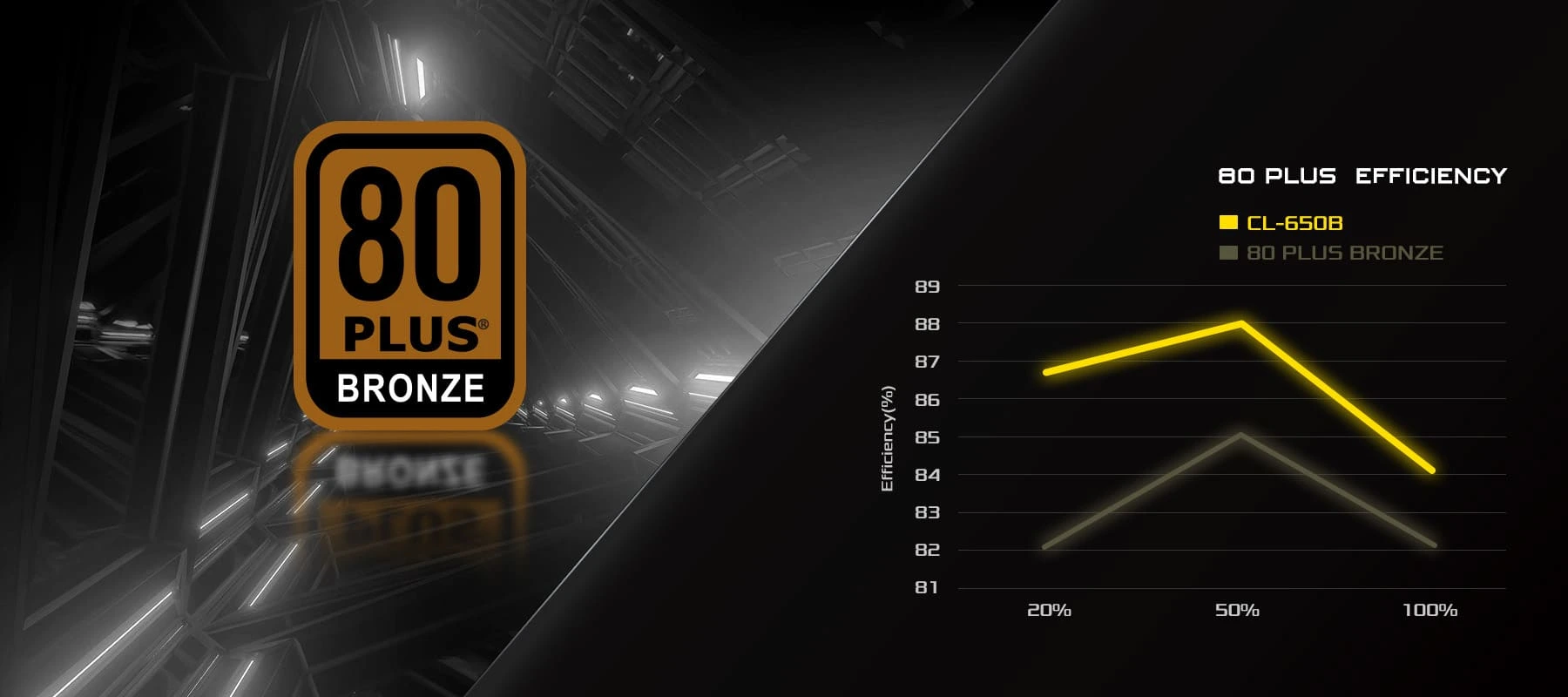

80 PLUS CERTIFIED
The Challenger series is crafted for value-conscious users, offering 80 PLUS Gold models in 850W, 750W, and 650W options, as well as 80 PLUS Bronze models in 750W, 650W, and 550W.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 5 –Year warranty, guaranteeing long term reliable and peace of mind operation.
Specification
80 Plus Efficiency: GOLD
ATX 12V Version: ATX 3.1
ATX: ATX 3.1
Continuous 12V output: 54.2 A
Dimensions(L x W x H): 140mm x 150mm x 86mm
Fan: 120mm Golf-Blade Fan
iCOOL MODE: Yes (Auto)
Protections: OCP, SCP, OVP, UVP, OTP, OPP
Capacitors: All Taiwanese
5V BOOST: Yes (Built-in)
PCIe 5.1 Cable TempGuard: No
Total Power Excursion: 200%
MTBF (Hours)@25°C: 100,000
Cable Type
- 24pin: Sleeved
- Others: Flat
Motherboard cable (24pin): 1
EPS 12V CPU connectors (4+4pin): 1
PCIe5.1 connectors(12+4pin) Dual Color: 0
PCIe connectors (6+2pin): 2
4-pin Peripheral connectors: 2
SATA 5-pin connectors: 4
