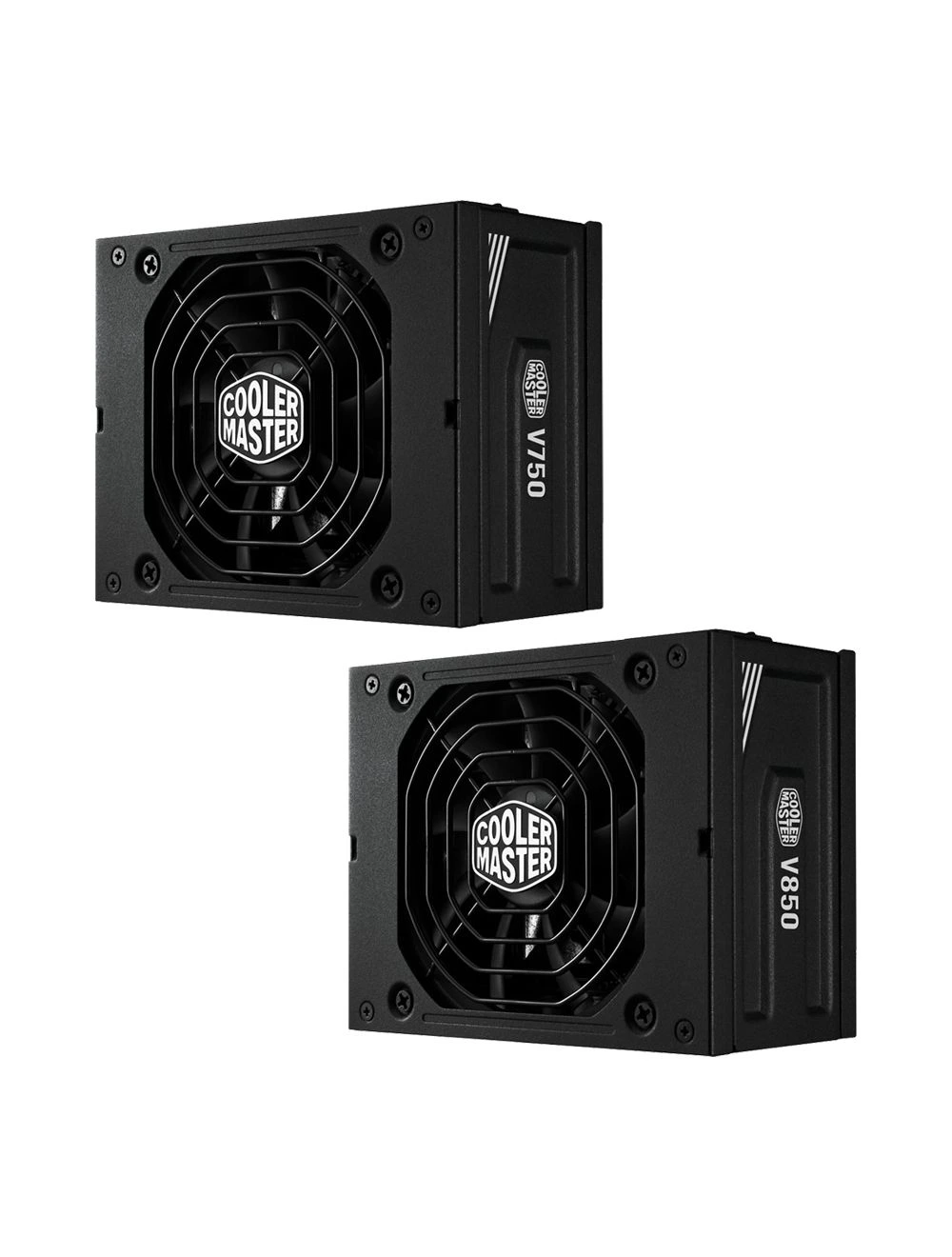

Cooler Master V SFX Gold 750W | 850W ATX 3.1 80+ Gold Fully Modular Power Supply

SMALL BUT MIGHTY

Welcome to the world of the V SFX Gold, a small but mighty PSU. The V SFX Gold has one of the highest power densities available today. Additionally, with an included ATX compatibility bracket, the V SFX Gold can support a PC of any size.

The V SFX Gold also features ATX 3.1 support, a durable 12V-2x6 cable, 80 Plus Gold efficiency, fully modular cables, an FDB fan, 16AWG PCIe high-efficiency cables. Deliver compact, mighty power to your build with the V SFX Gold.

Key Features:

• Compact SFX form factor: The ultra-compact dimensions of this SFX unit make it the perfect fit for a mini-ITX build.
• High power density: With 160% greater power density than the V Gold 850 V2, this is one of the highest power densities in the industry.
• Flexible compatibility: An included bracket ensures compatibility with both ITX and ATX cases.
• 80 Plus Gold efficiency certification: Achieves more than 90% efficiency at typical loads.
• Quiet FDB fan: A fluid dynamic bearing fan delivers long-lasting, quiet, and effective cooling.
• ATX 3.1 support & durable 12V-2x6 cable: Includes ATX 3.1 support and a 90-degree 12+4-pin (12V-2x6) PCIe 5.1 cable featuring lower temperatures, enhanced durability, and improved safety.
• Smart thermal control mode: Fan speed is automatically adjusted according to PSU operating temperature.
• Fully modular cabling: Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.
• High-quality Japanese capacitors: Reduced ripple noise and enhanced reliability.

Specifications:

Product Name:  V SFX Gold 850 ATX 3.1 | V SFX Gold 750 ATX 3.1
Item Code:  MPY-8501-SFHAGV-3E | MPY-7501-SFHAGV-3E
ATX Version:  ATX3.1 & SFX 12V Ver. 3.42
PFC:  Active PFC
Input Voltage:  100-240V
Input Current:  12-6A
Input Frequency:  50-60Hz
Dimensions (L x W x H):  100 x 125 x 63.5mm
Fan Size:  92mm
Fan Bearing:  FDB
Efficiency:  90% @ Typical Load
80 PLUS Rating:  80 PLUS Gold
ErP 2014 Lot 3:  Yes
Operating Temperature:  0~50°C
Power Good Signal:  100-500ms
Hold Up Time:  16ms
MTBF:  >100,000 hours
Protections:  OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Regulatory:  TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
Connectors:  ATX 24 Pin x1 (300mm)
                        EPS 4+4 Pin x1 (450mm)
                        EPS 8 Pin x1 (450mm)
                        SATA x8 (100+115+115+115mm)
                        Peripheral 4 Pin x4 (100+115+115+115mm)
                        PCI-e 6+2 Pin x4 (400+120mm)
                        12V-2x6 x1 (400mm)
Package Content:  Cable bag, Power cord, Zip ties x7, Velcro x3, Screw bag, ATX-ITX adapter bracket, Manual, Installation Guide
DC Output:  +3.3V (20A), +5V (20A), +12V (70.8A), -12V (0.3A), +5Vsb (3A)
Total Power:  850W | 750W
