FULLY MODULAR DESIGN
Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.
Specification:

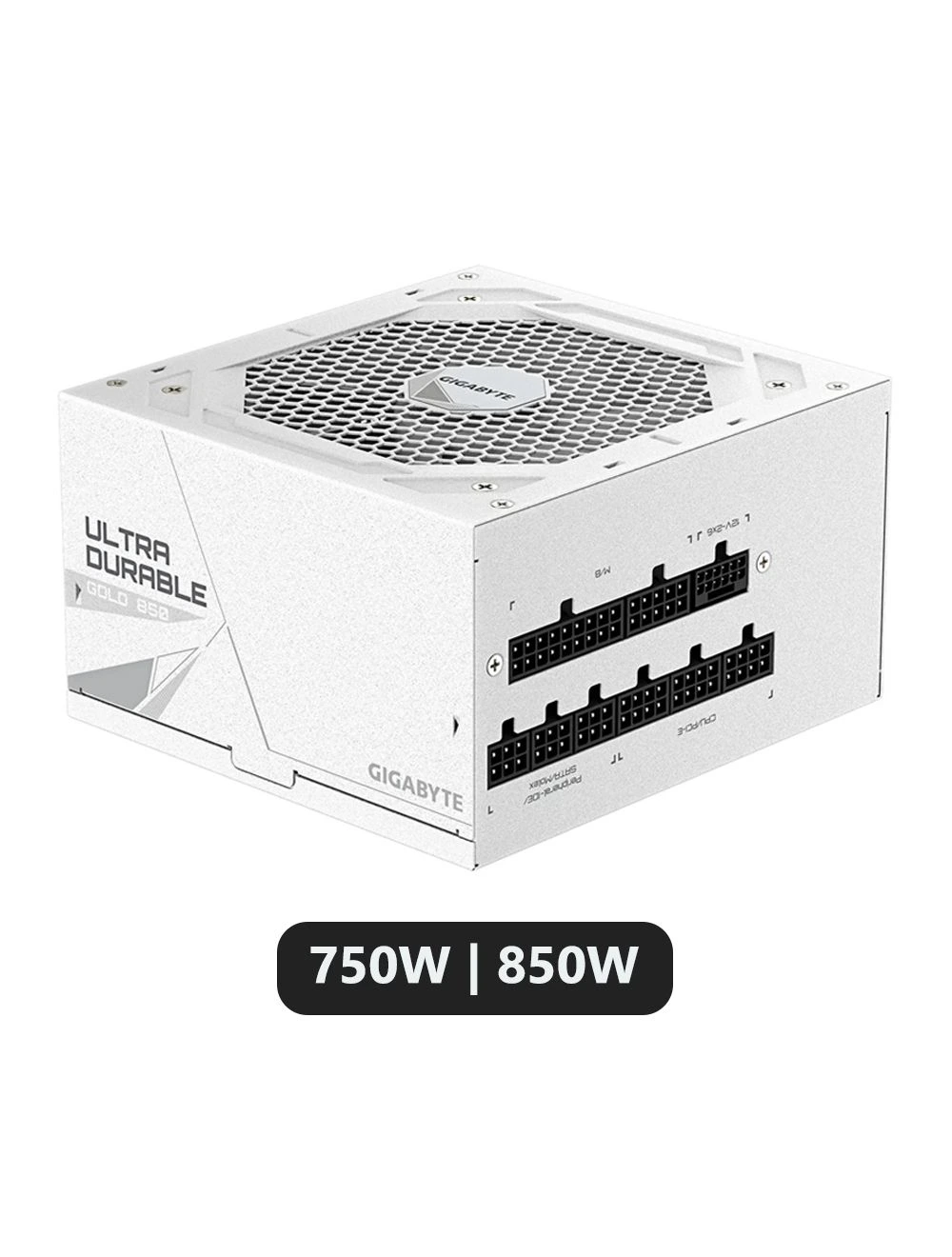

Model: GP-UD850GM PG5 ICE | GP-UD750GM PG5 ICE
Type: Intel Form Factor ATX 12V v3.1
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 15-6.5A
Input Frequency: 60-50 Hz
Output Capacity: 850W
Dimensions: 150 x 140 x 86 mm
Fan Type: 120mm Hydraulic Bearing(HYB) Fan

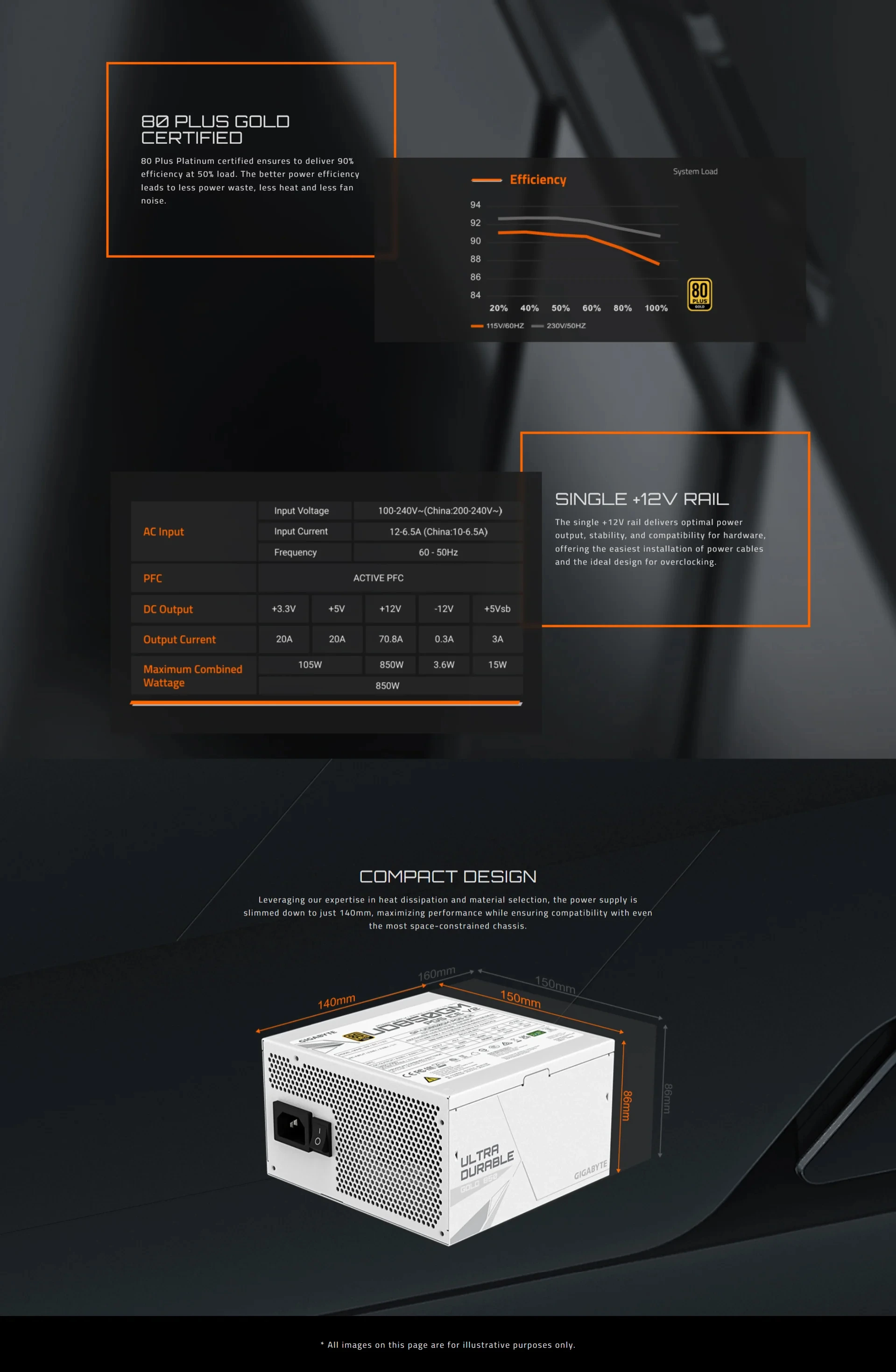

80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protections: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-150ms
Hold Up Time: >16ms
Cable Type: Embossed, All white

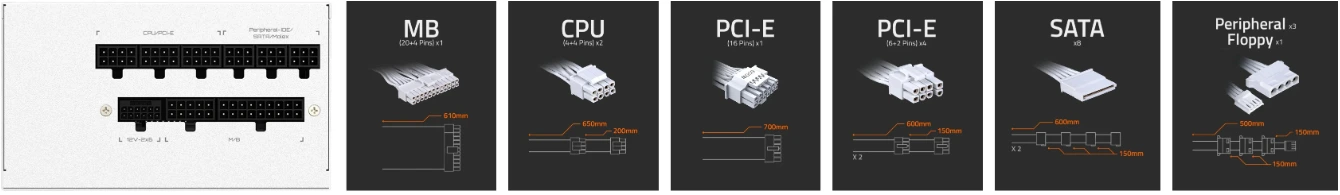

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
