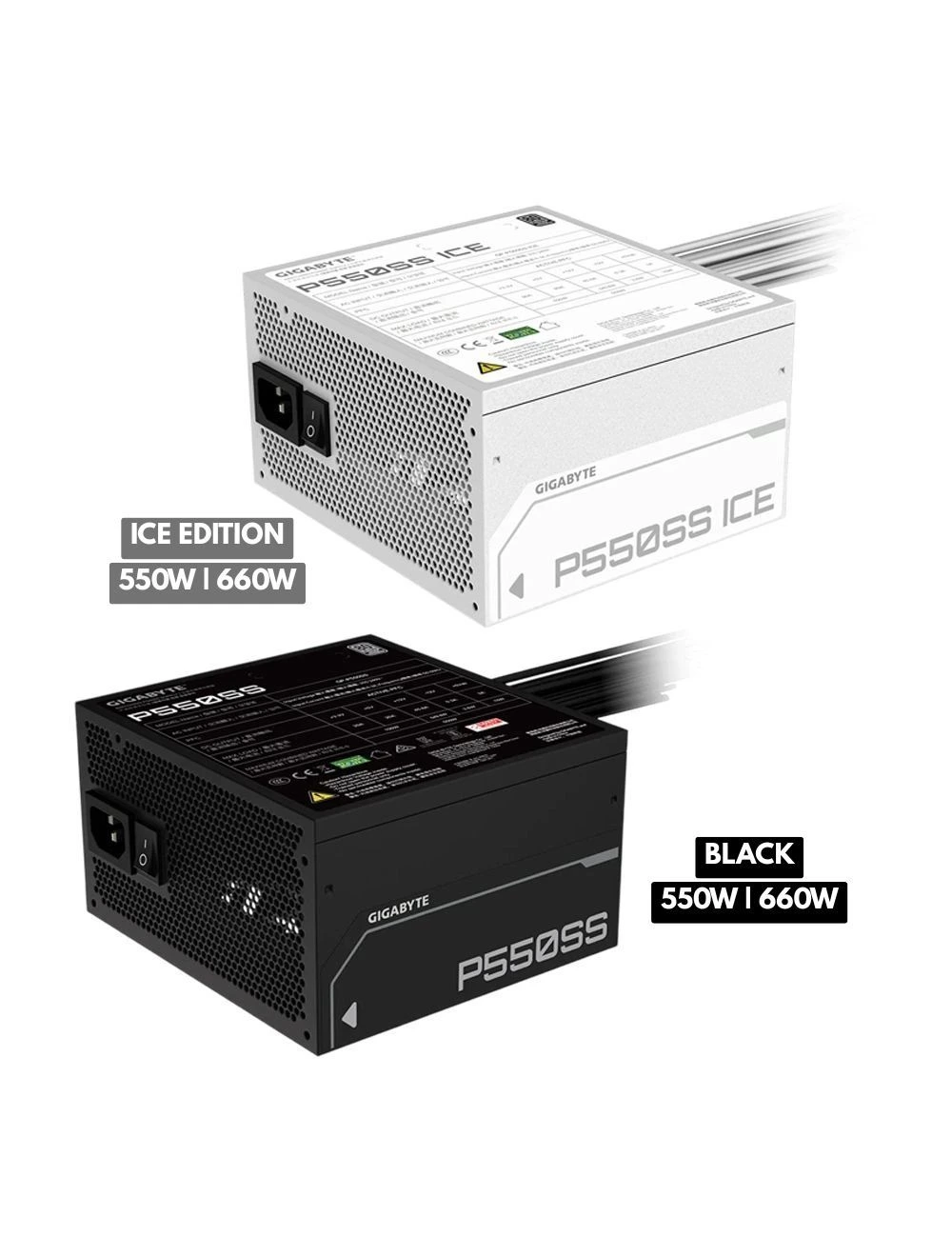

Gigabyte P550SS-550W / P660SS-660W 80 plus Silver Intel ATX 3.0 Non-Modular Power Supply

Key Features

• 80 PLUS Silver certified (230V EU)
• Support Intel ATX 3.0 standard (compatible with ATX 3.1)
• 120mm Fluid Dynamic Bearing (FDB) Fan
• Flat cable design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection

Specification

Model:  GP-P550SS/GP-P660SS | GP-P550SS ICE/GP-P660SS ICE
Type:  Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC:  Active PFC (>0.9 typical)
Input Voltage:  155-240 Vac
Input Current:  6.3A
Input Frequency:  50-60 Hz
Output Capacity:  550W/660W
Dimension:  150 x 140 x 86 mm
Fan Type:  120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS:  Silver
Efficiency:  90% at typical load (230V EU)
MTBF:  >100,000 hours
Protection:  OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal:  100-150ms
Hold Up Time:  >16ms
Cable Type:  Flat

Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 1 : 650mm*1
PCI-e 6+2 Pin x 2 : 600mm+120mm*1
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
