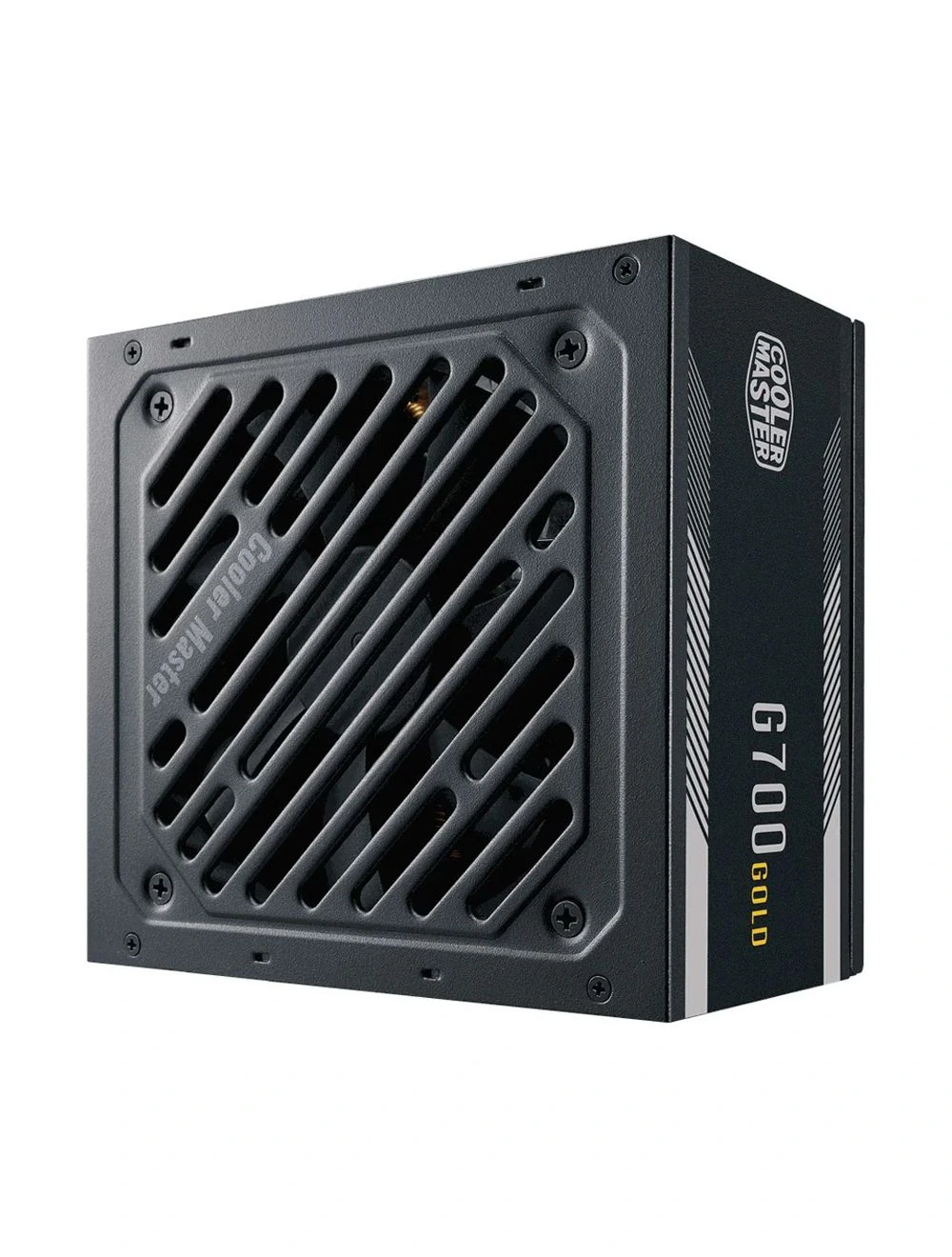

Cooler Master G700 700W 80 Plus Gold ATX Non-Modular Power Supply

The G700 Gold consists of dependable power supply units for entry level users and system integrators.

The Cooler Master G700 Gold 80 PLUS Gold MPW-7001-ACAAG-U2 power supply boasts a combined power of 700W and 90% efficiency. It features peripheral power connectors (Molex) and PCI Express power connectors (6+2 pin). Featuring HDB bearing technology and power protection functions against various eventualities. Its power factor correction is active and it is 80 PLUS Gold certified. The design includes a 12cm fan for active cooling. Compatible with PCs and servers, and featuring an ATX form factor, it's a reliable choice for systems requiring a stable power supply.

SPECIFICATION

ErP 2014 Lot 3:  Yes
Operating Temperature:  0-40°C
PFC:  Active PFC
ATX 24 Pin Connectors:  1
EPS 4+4 Pin Connectors:  1
Power Good Signal:  100 - 150 ms
EPS 8 Pin Connector:  1
80 PLUS Rating:  80 PLUS Gold
Fan Size:  120mm
Category:  500 to 750W
MTBF:  >100,000 Hours
Input Frequency:  47-63Hz
80 PLUS Rating:  Gold
Modular:  Non Modular
Fan Bearing:  HDB
Input Voltage:  100-240V
PCI-e 6+2 Pin Connectors:  4
SATA Connectors:  6
Peripheral 4 Pin Connectors:  3
Protections:  OVP
ATX Version:  ATX 12V V2.52
Protections:  OPP
Protections:  SCP
Dimensions (L x W x H):  140 x 150 x 86 mm
Protections:  UVP
Protections:  OTP
Protections:  OCP
Series:  G Series
Regulatory:  CCC
Input Current:  10-5A
Regulatory:  CE
Regulatory:  EAC
Efficiency:  ≥90% @ Typical Load
Regulatory:  cTUVus
Regulatory:  FCC
Hold Up Time:  ≥15ms at 100% load
Regulatory:  BSMI
Regulatory:  CB
Regulatory:  TUV
Regulatory:  RoHS2.0
Regulatory:  KC+KCC
Regulatory:  BIS
Model:  MPW-7001-ACAAG
