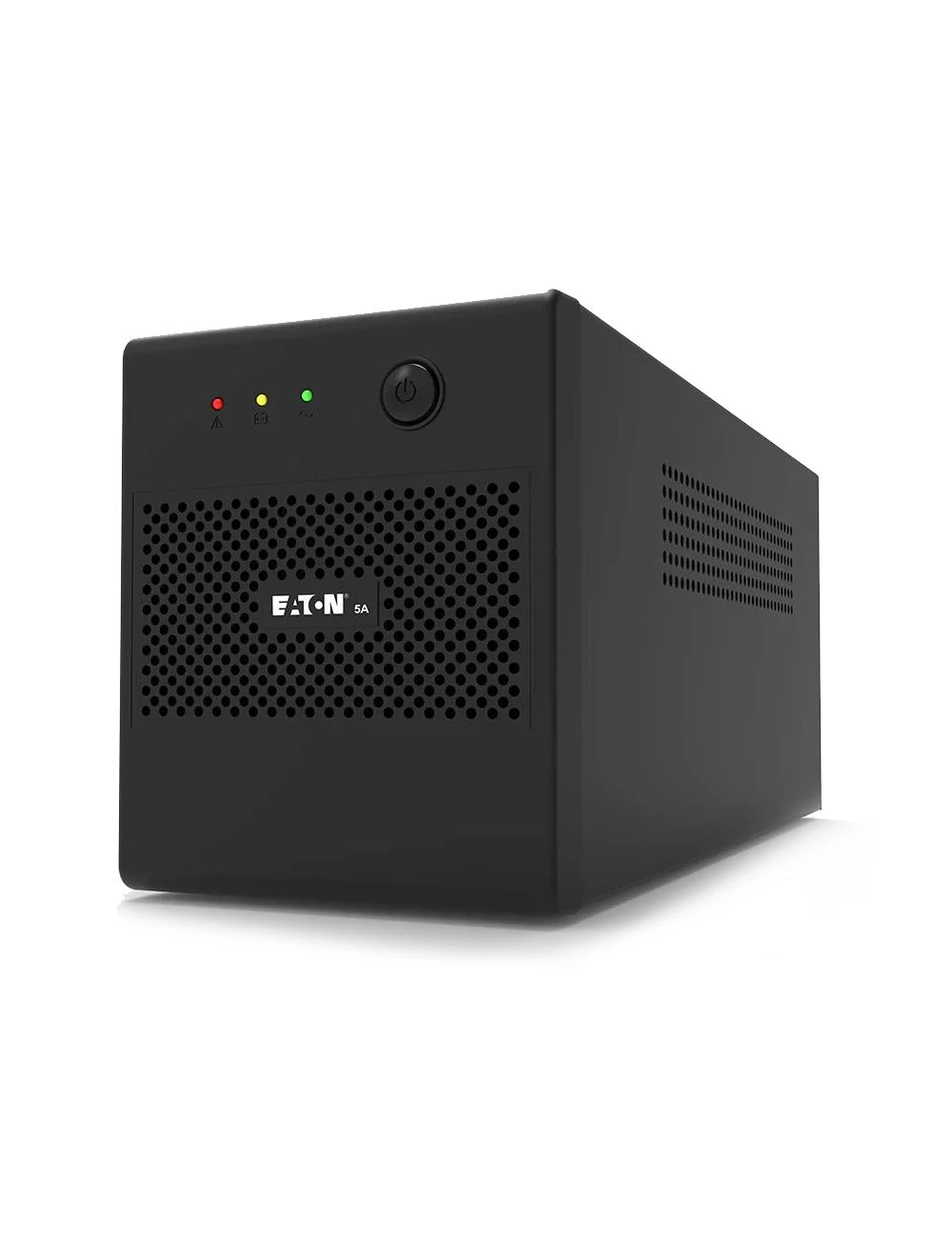

The Eaton 5A UPS is a single-phaseline-interactive UPS, with power ratings from 700 - 2200 VA. The UPS is available in a tower form factor. 5A UPS includes surge protection for outlets and circuit breaker protection, providing additional protection measures for peace of mind. Eaton 5A UPS also comes with multiple outlet formats – Schuko, NEMA universal, Universal, for ease of connection.
SPECIFICATIONS
Rating (VA/W: 1200VA/650W
Format: Tower
Electrical characteristics
Input voltage range: 140–300 VAC
Frequency range: 60/50 Hz (Auto sensing)
Surge protection: Yes
Generator compatible: Yes
Mute by power key: Yes
Circuit breaker: Yes
Output
Output voltage: 230 VAC
Output voltage reg. (Battery mode): ±10%
Battery wave form: Stepped sine wave
Protection: PCBA current sensor (F/W protection)
Output backup socket: DIN model: (4) Schuko outlets NEMA model: (6) NEMA universal outlets UNI model: (4) Universal outlets
Transfer time: 2–6ms typical, 10ms max
Battery
Type: 12V/9Ah x1
Floating Charging Voltage: 13.5–13.8V
Recharge time: 4–6 hours recover to 90% capacity
Typical battery runtime
IT Load (100W): 25 min
50% load: 4.8 min
75% load: 25 s
Interface
On / Off switch: Yes
Indicator: LED
Communication–USB: No
Communication–RS232: No
RJ11 protection: No
Physical
Dimension D x W x H (mm): 370*138*165
Weight (kg): 6.25
Package: Color box
Part Numbers
Schuko outlets: 5A1200I-DIN
NEMA outlets: 5A1200I-NEMA
Universal outlets: 5A1200I-UNI
