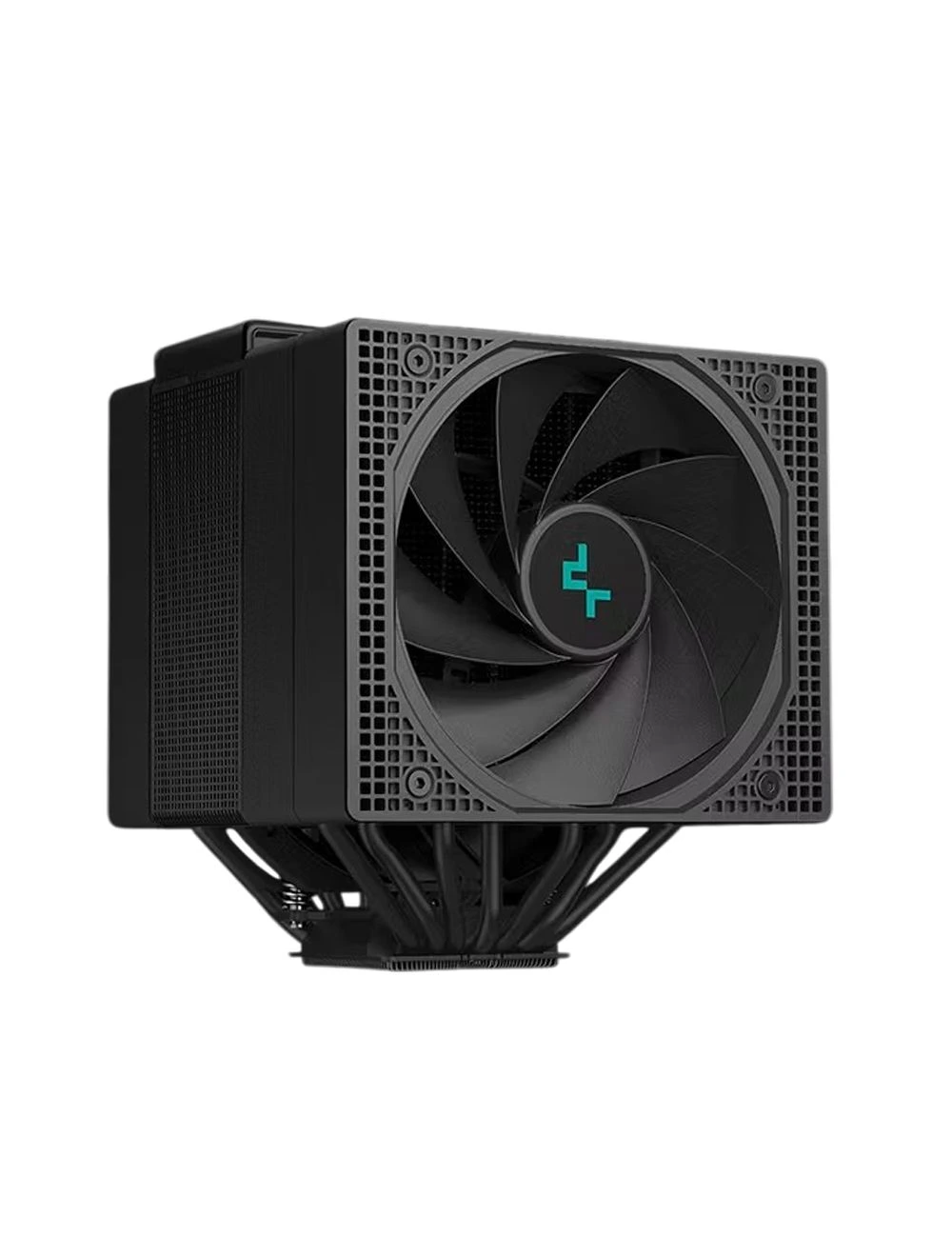

ASSASSIN IV VC VISION - DIGITAL ELEGANCE
DeepCool's flagship air cooler series gets a drastic addition in the form of the ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don't stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.
VAPOR CHAMBER-ENHANCED
Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

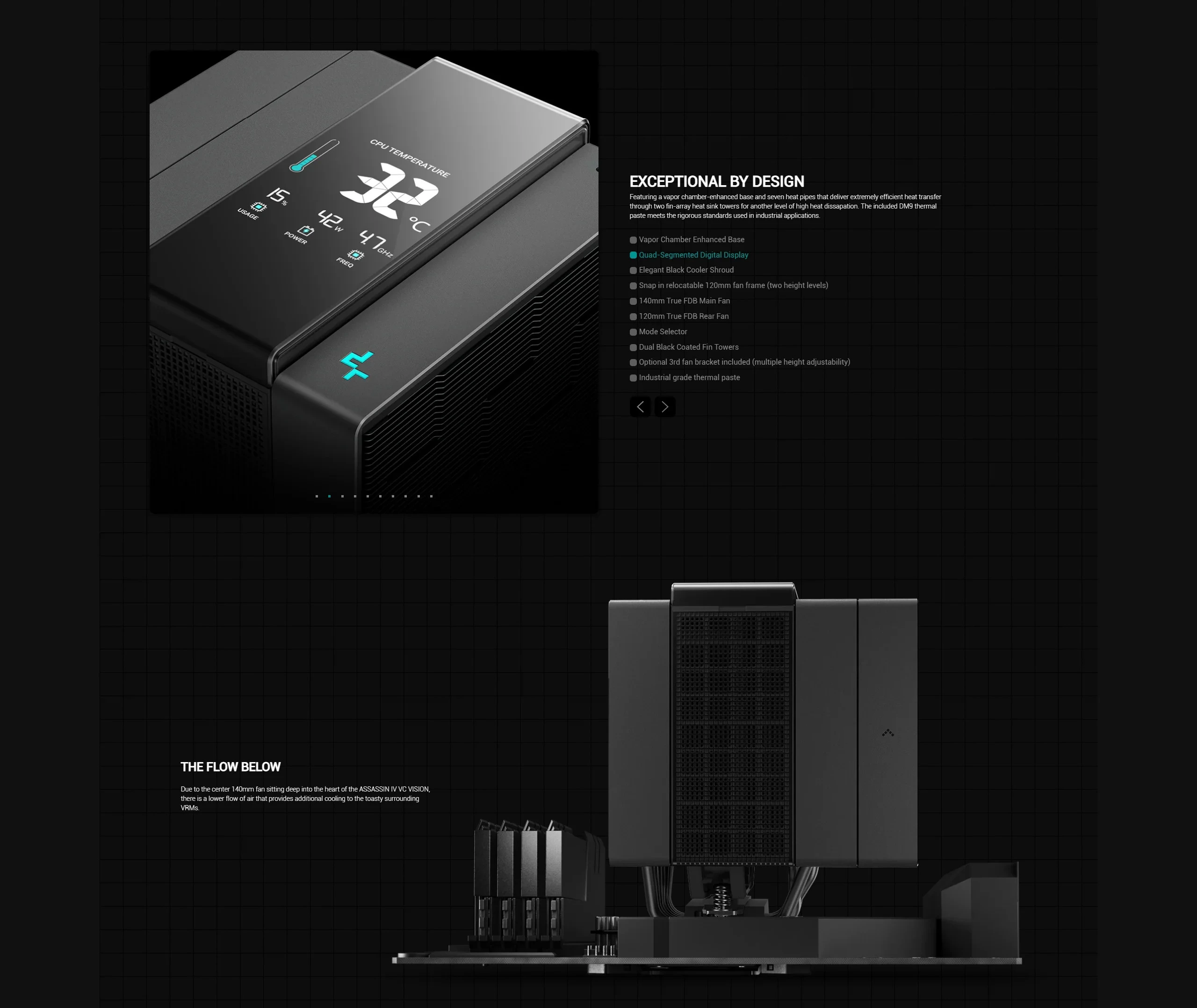

THE DIGITAL TOUCH
The standout addition of the ASSASSIN IV VC VISION is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The digital panel is magnetized, so installation and adjustments are extremely simple. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
VISUAL TEMPERATURE ALERTS
A temperature warning alert system has been integrated with a color-coded visual thermometer indicator: under 80 °C, the indicator will stay green; between 80 °C and 90 °C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

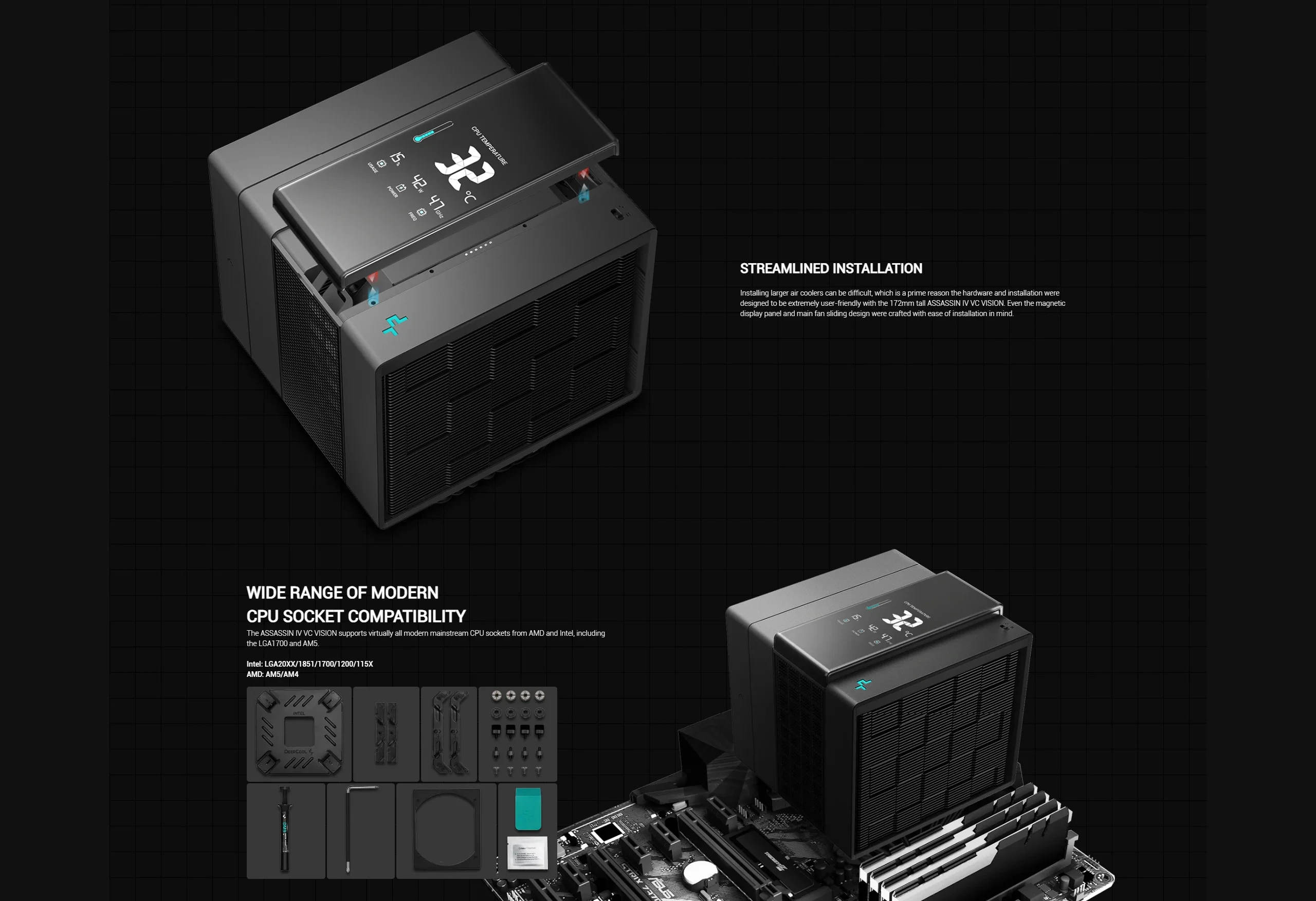

WIDE RANGE OF MODERN
CPU SOCKET COMPATIBILITY
The ASSASSIN IV VC VISION supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1700 and AM5.
Intel: LGA20XX/1851/1700/1200/115X
AMD: AM5/AM4
Specification:
Product Dimensions: 147×144×172 mm(L×W×H)
Heatsink Dimensions: 140×110×160 mm(L×W×H)
Net Weight: 1780 g
Heatpipe: Ø6 mm×7 pcs
Fan Dimensions: 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode): 500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode): 61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode): 3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode): ≤29.3 dB(A)
Fan Speed (Quiet Mode): 500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode): 48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode): 2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode): ≤22.6 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.2 A / 0.2 A
Fan Power Consumption: 2.4W / 2.4 W
Rated Voltage: 12 VDC
Power Consumption(Performance Mode): 4.8 W
Power Consumption(Quiet Mode): 3.6 W
Display Module Rated Voltage: 0.08 A±10%
Display Module Rated Current: 5 VDC
Display Module Power Consumption: 0.4 W
Display Area: 44.6x53.6 mm
