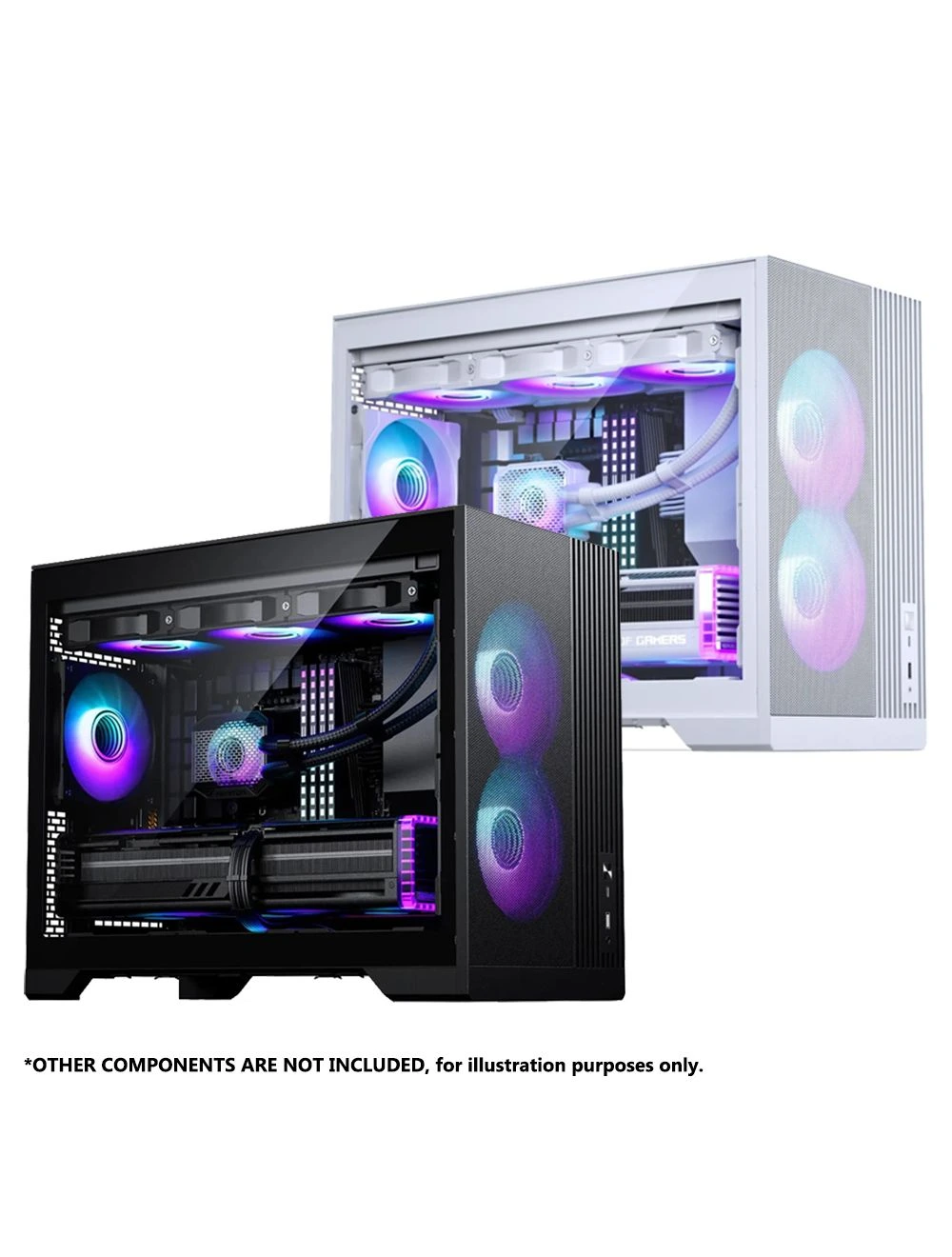

XT M3
Compact Micro ATX Gaming Chassis
The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.
With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.
Specification:
Case Dimensions: 460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in
Form Factor: Compact microATX tower
Mainboard Support: Micro-ATX | Mini-ITX
Materials: Steel chassis | Tempered glass window | ABS plastic
Color: Black White
Expansion
Expansion Slots: 4
Vertical GPU Support: No
Internal 2.5″ Positions: 2
Internal 3.5″ Positions: 1
Front I/O
- 1x USB 3.0
- 1x USB-C 3.2 Gen2x2
- 1x Microphone / Headphone combo
- Power button

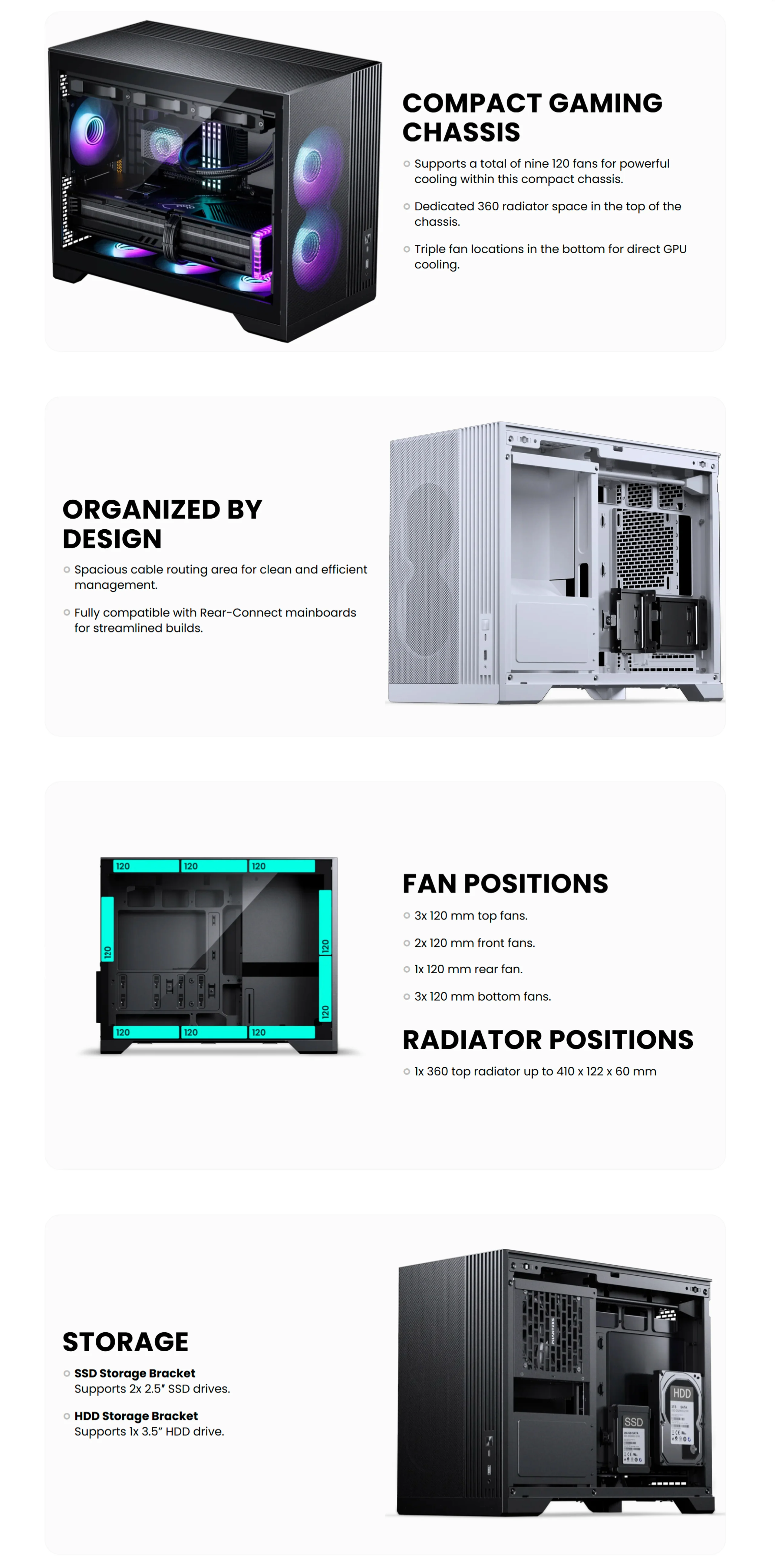

Fans (120 | 140)
Total: 9 | –
Top: 3 | –
Front: 2 | –
Side: – | –
Rear: 1 | –
Bottom: 3 | –
Radiator (120 | 140)
Top: Max. 360 | –
Front: – | –
Rear: – | –
Bottom: – | –
Clearance
CPU Cooler Height: 175 mm | 6.88 in
GPU Length: 430 mm | 15.94 in (Without front fans installed)
GPU Width: 175 mm | 6.88 in
Power Supply Length: 150 mm | 5.90 in
Top 360 Radiator: 410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in
Extra
Net Weight: 5.57 kg | 12.28 lbs
Gross Weight: 6.90 kg | 15.21 lbs
