Features

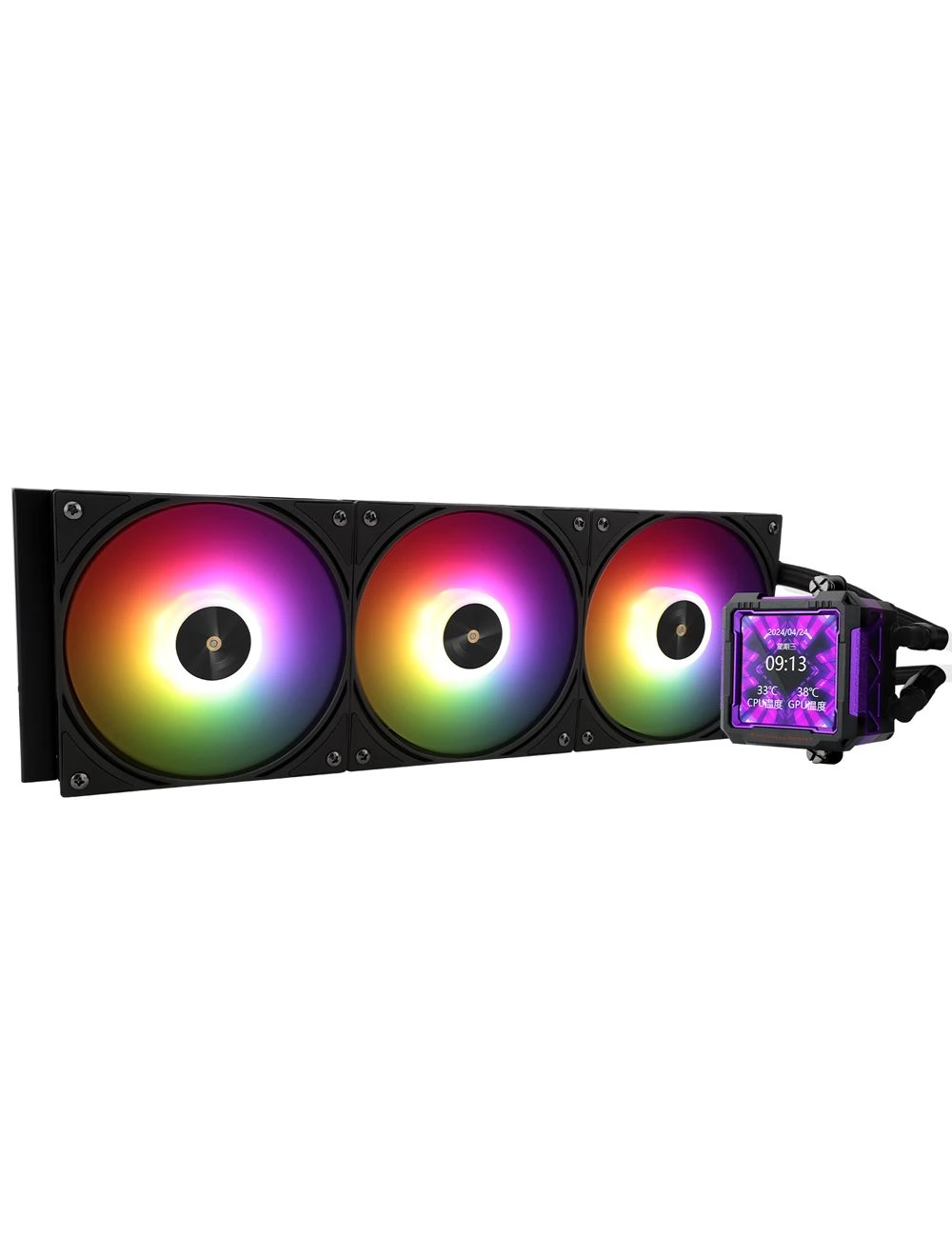

Excellent Cooling Combination - CPU water cooling cooler adopts a water cooling header with detachable LCD display + 360 specification fully blackened nano-painted cold drain + polymer compiled protective water pipe + standard configuration 120mm PWM air pressure fan, which is dedicated to creating an all-in-one water cooling cooler with high cooling, high lifespan, high level of sophistication, and low evaporation.
Parameters of water-cooled radiator - The size of water-cooled radiator is 397*120*52mm, cold header: 69*69*60mm, Voltage: DC 12V, fan operation noise ≤29.8dBA, fan speed: 2000RPM±10%, the low noise of the water pump is an absolute advantage among many water-cooled radiators. With the co-operation of the water pump and high fan speed, it can ensure the cooler cools the CPU for a long time and excellently.
2.73-inch display - The heat dissipation LCD supports personalised moving picture display, 450 NITS peak brightness, 24 BIT true colour, free monitoring of the display of various system parameters, background format as well as customised text can be displayed, superb display play.
Magnetic suction removable LCD screen - The water pump of the water-cooled cooler is a new generation of water pump system, which not only enhances the heat absorption efficiency, but also reduces the operation noise. Unlike ordinary water pumps, the water pump is a new IPS LCD screen, which can support DIY various static & dynamic picture switching, and support the system to cast the screen display (subject to the software), which increases the visual interest at the same time of high heat dissipation.
Strong compatibility - The cooler supports Intel 14th generation + AMD RYZEN 7000, supported sockets: AMD: AM4/AM5, Intel: LGA1150/1151/1155/1156/1200/2011/2066/1700/1851, each platform comes with a corresponding mounting fastener, the installation steps are simple, and it can be well installed on the corresponding CPU platform, it is recommended to install it according to the installation video or manual. If you have any questions, please contact the store's customer service.
ARGB God Light Synchronization - The ARGB of the pwm fan and the water-cooling head is synchronized with the 5V 3pin on the motherboard, efficient cooling while providing rich lighting effects, supporting lighting effects Connect in series to avoid insufficient light slots.
Specification:
Pump Dimensions：W69 mm x D69 mm x H60 mm
Radiator Dimensions：L397 mm x W120 mm x H27 mm
Pump Rated Voltage：12V DC
Connector：4 PIN PWM
Radiator：Aluminum
Warranty：5 Years
TL-P12-S SPECIFICATION：
Dimension：L120 mm x W120 mm x H25 mm
Weight: 150 g
Rated Speed：2000 RPM±10% (MAX)
Noise Level：29.8 dBA (MAX)
Air Flow：70.84 CFM (MAX)
Air Pressure：2.63 mm H2O (MAX)
Connector：4 PIN PWM
ARGB Connector：3 PIN 5V
Bearing Type：S-FDB Bearing
Compatibility
Intel：LGA115X/1200/1700/1851/2011/2066
AMD：AM4/AM5
