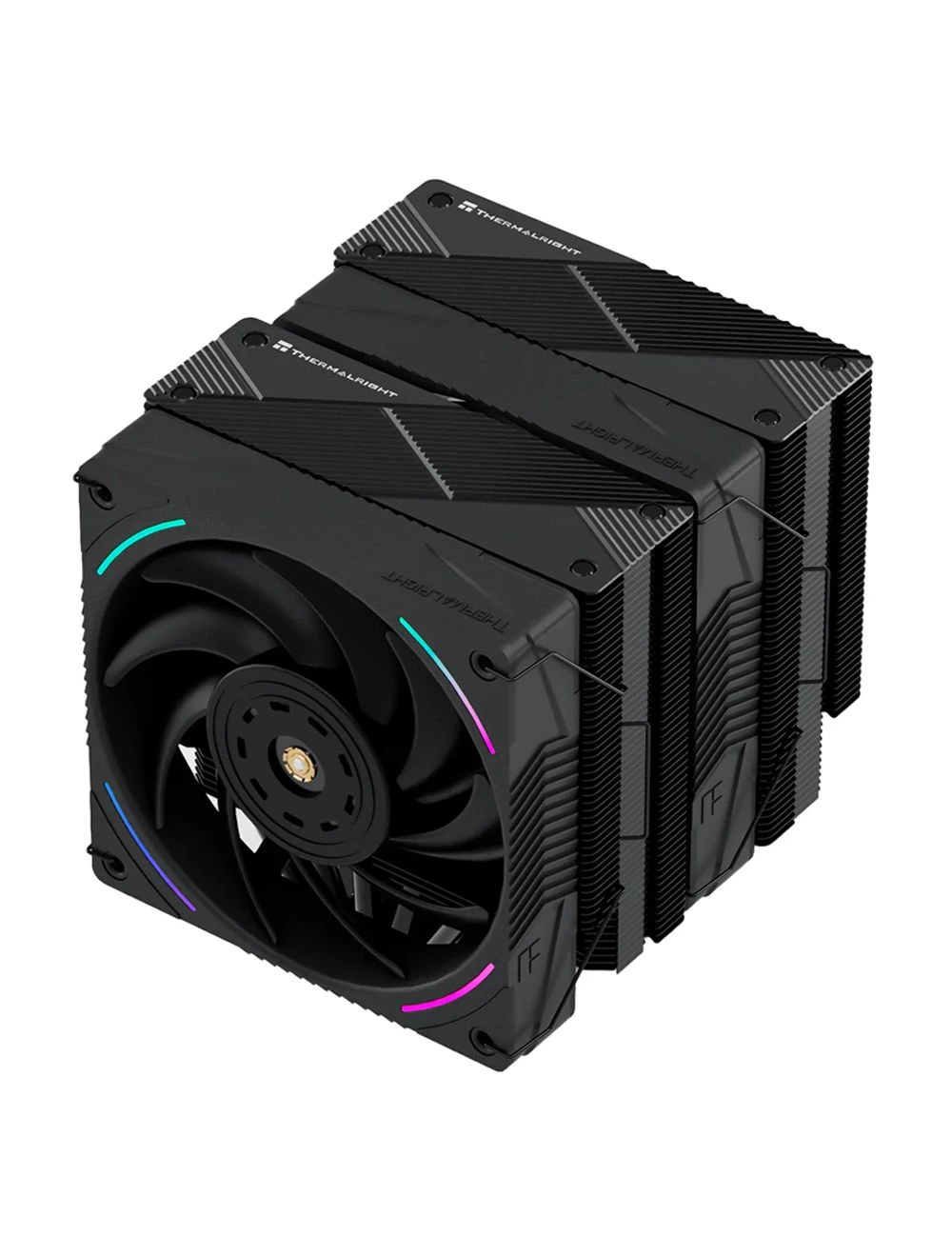

The Thermalright Phantom Spirit 120 EVO is the ultimate evolution of the dual-tower air cooler. Engineered for extreme thermal performance, it features seven high-efficiency 6mm heat pipes and a premium nickel-plated copper base. Paired with the new high-speed TL-K12 fans, this "EVO" version is designed to keep even the most power-hungry CPUs cool while maintaining a sleek, modern aesthetic with subtle ARGB accents.
Specification
Technical Spec :
Heatsink Specifications:
Dimension：L110 mm x W125 mm x H157 mm
Weight：810g(Without Fan)
Heat pipes：6mm heatpipe x 7 units
Copper Base：C1100 Pure copper nickel plated
TL-K12 FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Weight：220g
Rated Speed：2150 RPM±10% (MAX)
Noise Level：27 dBA
Air Flow：69 CFM (MAX)
Air Pressure：2.87 mm H2O (MAX)
Ampere：0.16 A
Connector：4 Pin (PWM Fan connector)
ARGB Connector: 3 PIN 5V
Bearing Type : S-FDB V2 Bearing
Compatibility
Intel：LGA115X/1200/1700/1851/2011/2066
AMD：AM4/AM5
