Specifications
General Specifications
Operating Ambient Temperature: 0–40 °C
Dimensions: 120 (L) x 120 (W) x 25 (H) mm
Net Weight: 183 g
Fan Specifications
Fan Speed: 600–3000 rpm, PWM controlled
0 rpm below 5 % PWM
Airflow: 77 cfm | 131 m³/h
Static Pressure: 6.9 mmH2O

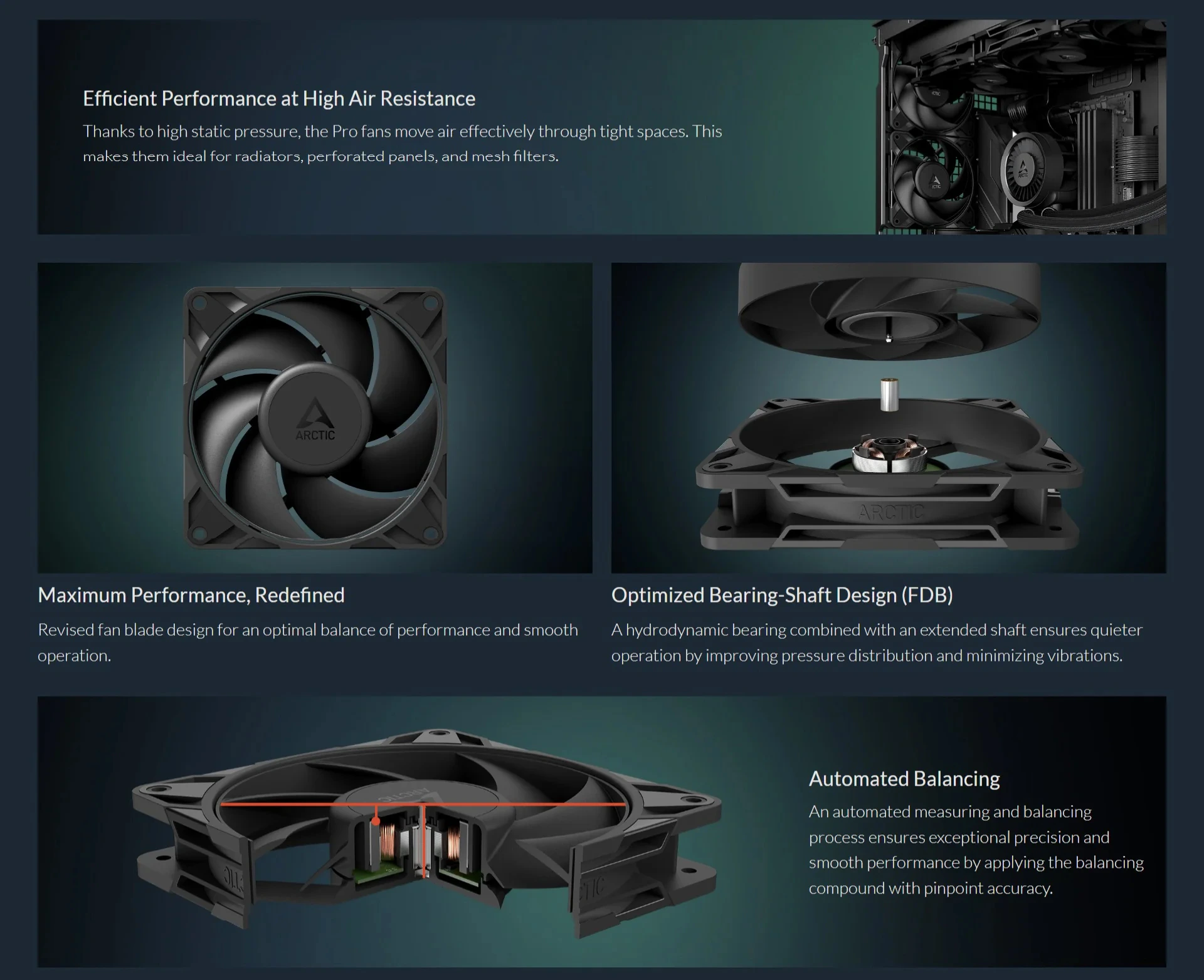

Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Start Up Voltage: 3.3 V DC
Current: 0.33 A
Cable Length: 400 mm
Connector: 4-Pin Fan Plug
