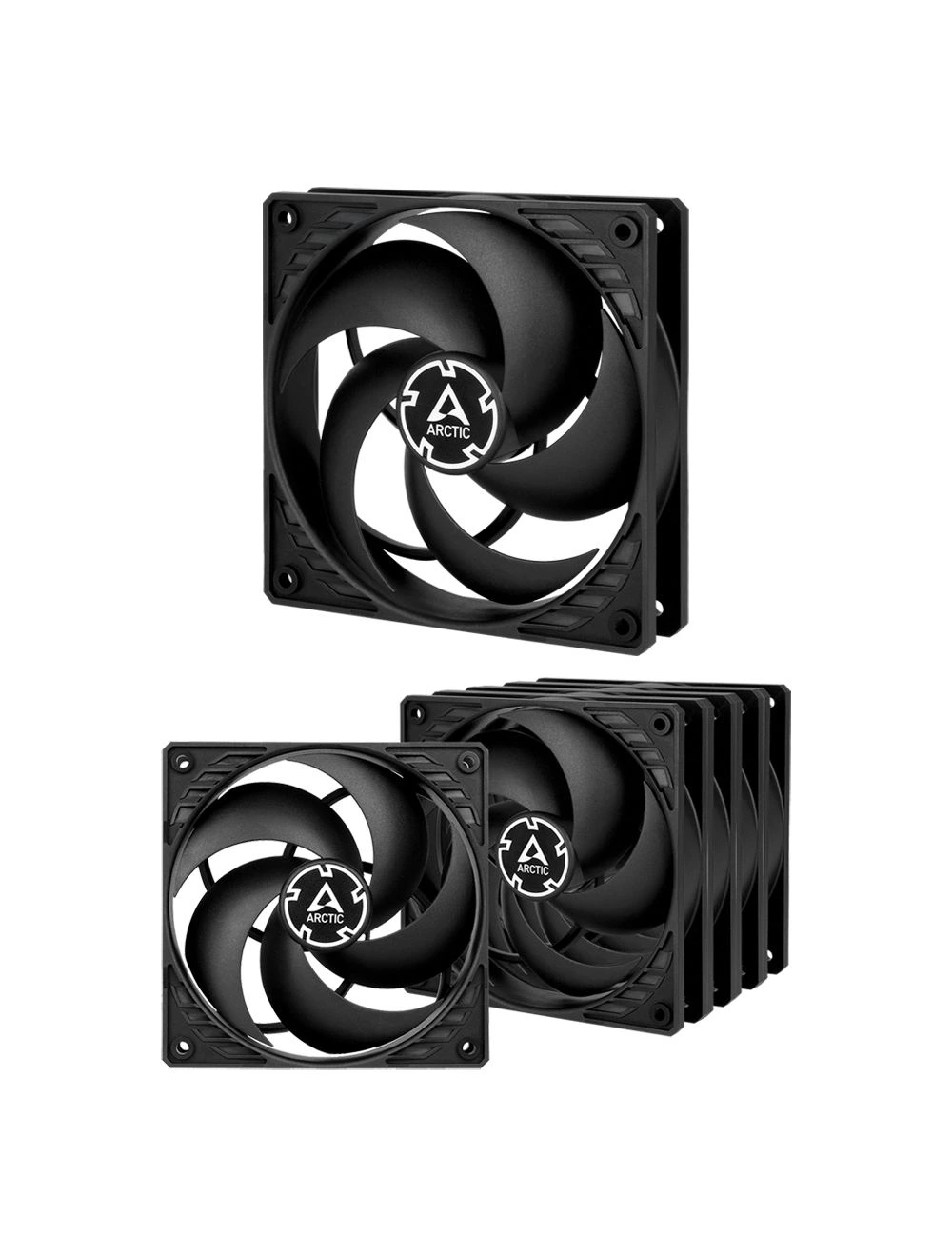

Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P12.
Specifications
General Specifications
Performance
Fan Speed: 1800 rpm
Airflow: 56.3 cfm | 95.7 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0—40 °C
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.8 V
Current | Voltage: 0.16 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 139 g
