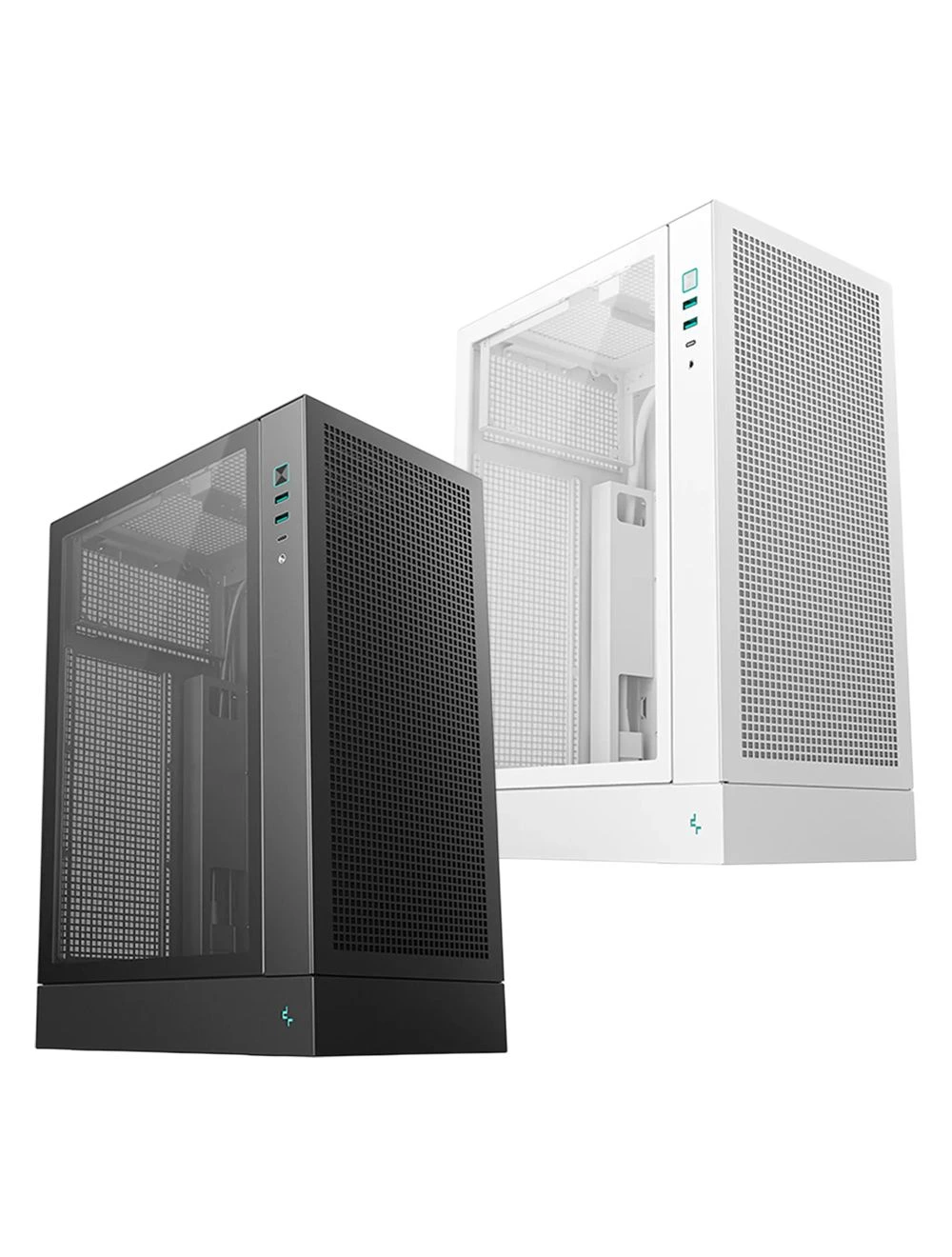

CH170 PLUS
The CH170 PLUS WH is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.
Specification:
Product Dimensions: 290mm*195mm*424.5mm(L×W×H)
Net Weight: 4.4Kg
Materials: ABS+SPCC+Tempered Glass
Motherboard Support: Mini-ITX / Micro-ATX
Front I/O Ports: USB3.0×2, Gen2 Type-C x1, Audio/Mic×1
3.5" Drive Bays: 1
2.5" Drive Bays: 1+1
Expansion Slots: 4 Slots
Pre-Installed Fans: None
Fan Support
Top: 1×120mm/1×140mm（with SFX PSU）
Side: 2×120mm
Bottom: 1×120mm
Radiator Support
Front: NA
Side:120/240mm
Bottom: 120mm
CPU Cooler Height Limit: 164mm
GPU Length Limit: 342mm
Power Supply Type: ATX PS2（maximum length: 140mm)/SFX/SFX-L
