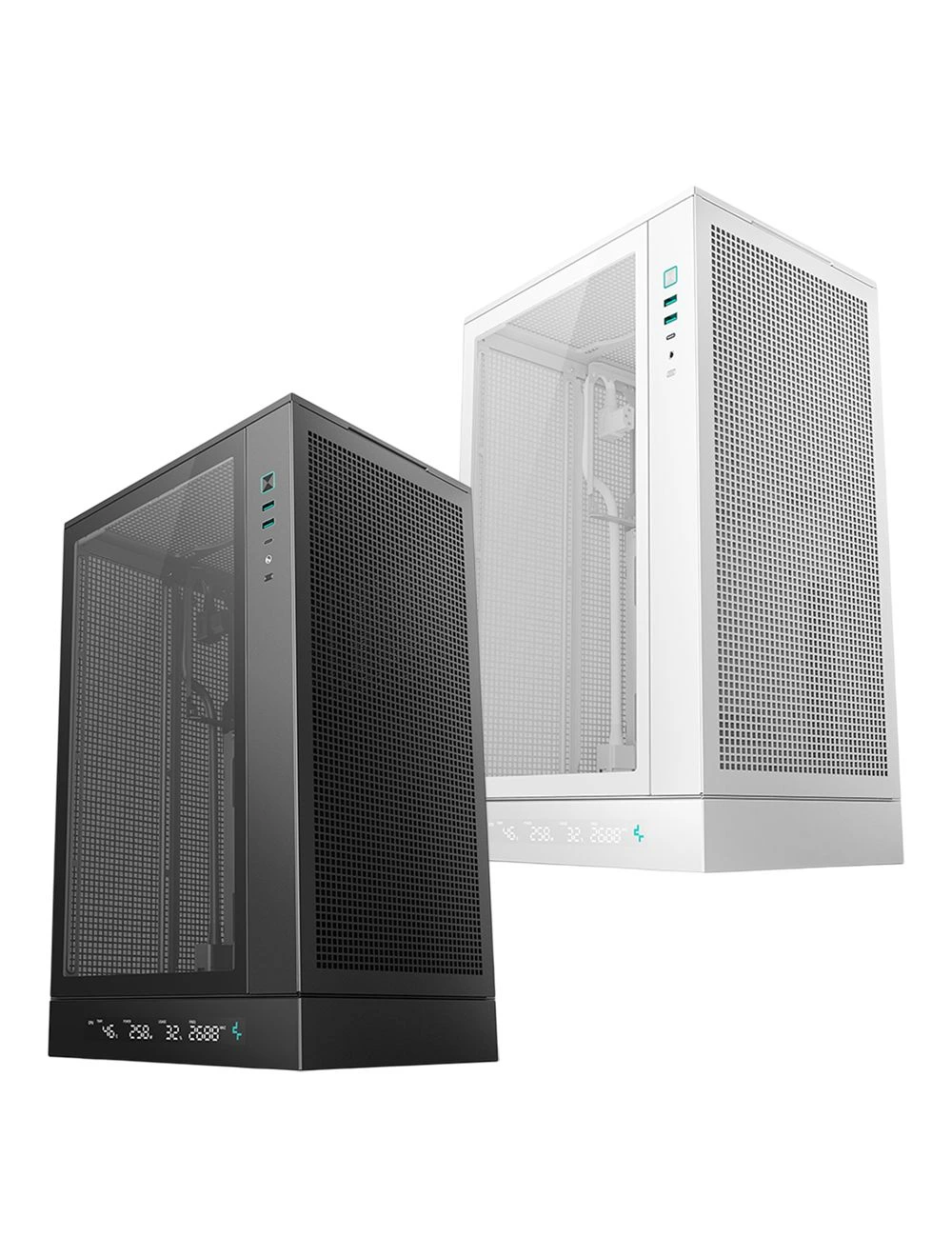

CH270 DIGITAL
The CH270 DIGITAL is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.
Specifications
Product Dimensions: 296 × 225 × 486 mm (L × W × H)
Net Weight: 5.8 kg
Materials: ABS + SPCC + Tempered Glass
Motherboard Support: Mini-ITX / Micro-ATX
Rear Connector (Micro-ATX): Yes
Front I/O Ports: USB 3.0 ×2, Gen2 Type-C ×1, Audio/Mic ×1
3.5″ Drive Bays: 1
2.5″ Drive Bays: 1
Expansion Slots: 4
Pre-Installed Fans: None
Fan Support
- Top: 2 × 120 mm
- Side: 3 × 120 mm or 2 × 140 mm
- Bottom: 1 × 120 mm
Radiator Support: Side: 120/240/360 mm
Bottom: 120 mm
Rear Radiator Support: N/A
CPU Cooler Height Limit: 174 mm
GPU Size Limit: 388 mm (413 mm without top fans)
Power Supply Type: ATX PS2 (max length: 150 mm)
