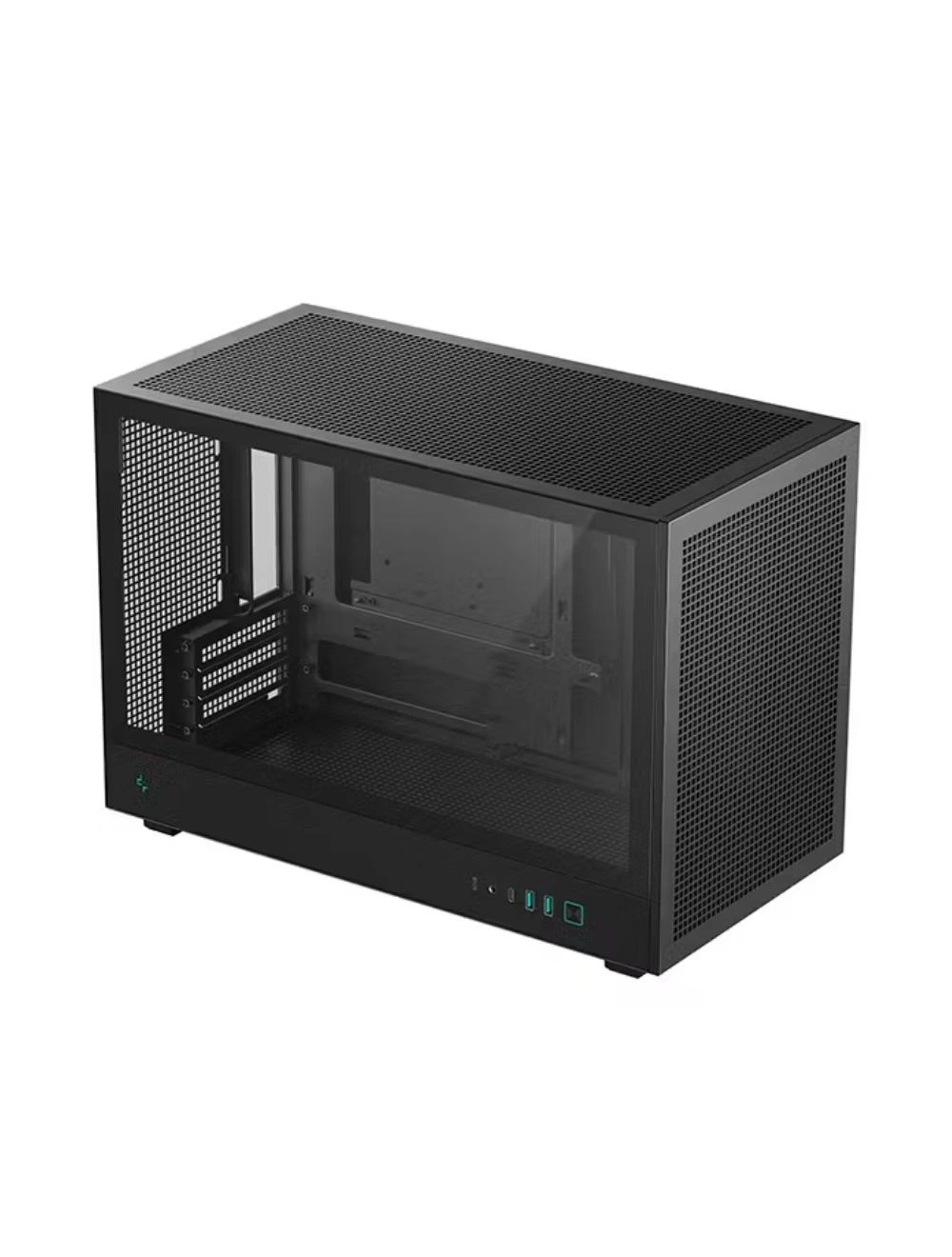

The CH260 is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.
GO MICRO
The Micro Form Factor CH260 comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE
The CH260 provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
ENHANCED BUILDING EXPERIENCE
Tool-free access to the front panel.
Modern I/O features two USB 3.0 plus one Gen2 Type-C port, and an Audio/Mic combo jack.
Three removable dust filters for easy cleaning.
Four independent and reusable PCI-e baffles.
Tool-free access to the front panel.
Modern I/O features two USB 3.0 plus one Gen2 Type-C port, and an Audio/Mic combo jack.
Technical Specification
Product Dimensions: 438mm*225mm*312.5mm(L×W×H)
Net Weight: 5.3Kg
Materials: ABS+SPCC+Tempered Glass
Motherboard Support: Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector):
Front I/O Ports: USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays: 1
2.5" Drive Bays: 1
Expansion Slots: 4Slots
Pre-Installed Fans: None
Fan Support:
Front:2×120mm
Top: 3×120mm/2×140mm
Rear: 1×120mm
Radiator Support
Front: NA
Top:120/240/360mm
Bottom: NA
Rear:120mm
CPU Cooler Height Limit: 174mm
GPU Size Limit: 388/413mm（No Front fans）
Power Supply Type: ATX PS2（maximum length: 150mm）
P/N: R-CH260-BKNGM0-G-1
