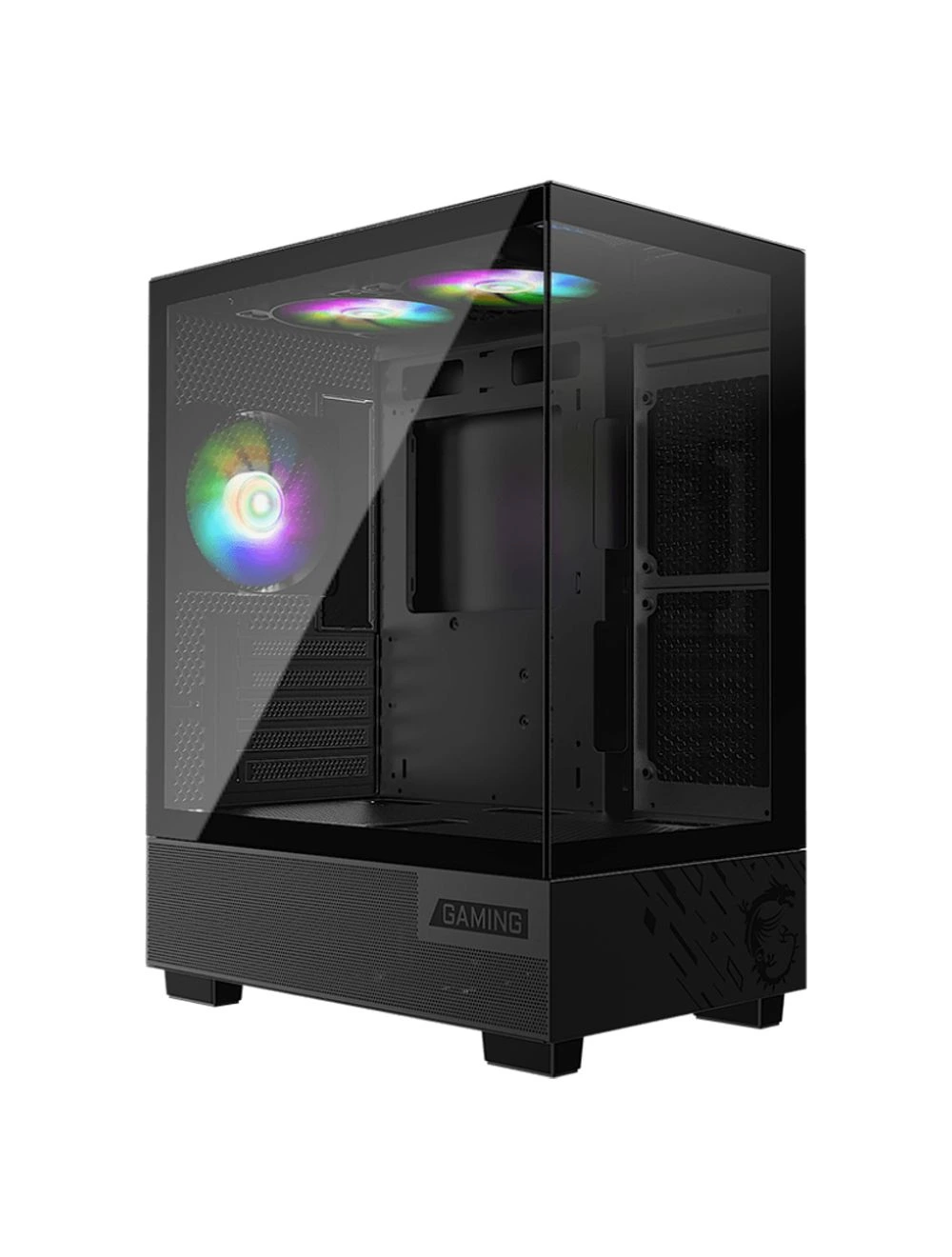

PAG PANO M110A
Auto RGB Fan： Packed with premium quality system fans to cool your system for maximized performance.
System Fan Included： Packing with premium quality system fans to cool your system for the maximum performance.
Magnetic Filter： The magnetic dust filter on the top side is designed to give users the best experience in uninstalling and cleaning.
Optimized Air Flow： This case supports up to 7 system fans installation and provides the whole system with ventilation for better stability.
Specification
| Radiator Compatibility | 120 / 140 / 240 mm |
|---|---|
| Case Form Factor | Mid Tower |
| Motherboard Form Factor Support | Micro-ATX, Mini-ITX |
| Product Name | PAG PANO M110A |
| Drive Mount Support | 1 x 2.5", 2 x 3.5" |
| Dimension | 369(D) x 210(W) x 448(H) mm / 14.52 x 8.26 x 17.63 inches |
| Weight | N/A kg / N/A lbs (TBD) |
| I/O Ports |
1 x USB 5Gbps (Type-A) 1 x USB (Type-A) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button |
| Case Expansion Slots | 5 |
| Pre-install Fan |
Top: 2 x Auto RGB Fan Rear: 1 x Auto RGB Fan |
| Fan Support |
Top: 2 x 120 mm / 2 x 140 mm Side: 2 x 120 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm |
| Maximum PSU Length | 160 mm / 6.29 inches |
| Maximum GPU Length | 330 mm / 12.99 inches |
| Maximum CPU Cooler Height | 160 mm / 6.29 inches |
| Radiator Layout |
Rear: 120 mm Top: 120 / 240 mm |
| Lighting |
Top: 2 x Auto RGB Fan Rear: 1 x Auto RGB Fan |
| Power Supply | ATX |
| Gross Weight | N/A kg / N/A lbs (TBD) |
