THERMALRIGHT is a Taiwanese brand with more than 20 years of development history. It has a certain degree of popularity in the Chinese market and has a decisive influence in the cooler market. We have been focusing on the research and development of computer peripheral accessories. The R&D product line includes: CPU coolers, CPU liquid coolers, case fans, thermal paste, accessories and other products.
AGHP Technology - 4x6mm heatpipe adopts AGHP upgraded 4th generation technology to solve the effect of reverse gravity caused by vertical/horizontal direction.S-FSB bearings have a very long service life to ensure the overall service life of the PC cooler.ULa grade safety insulation low-grade, industrial-strength PBT+PC materials, with the intention of creating high-quality products for you. The overall height is 156m, compatible with more models of chassis.

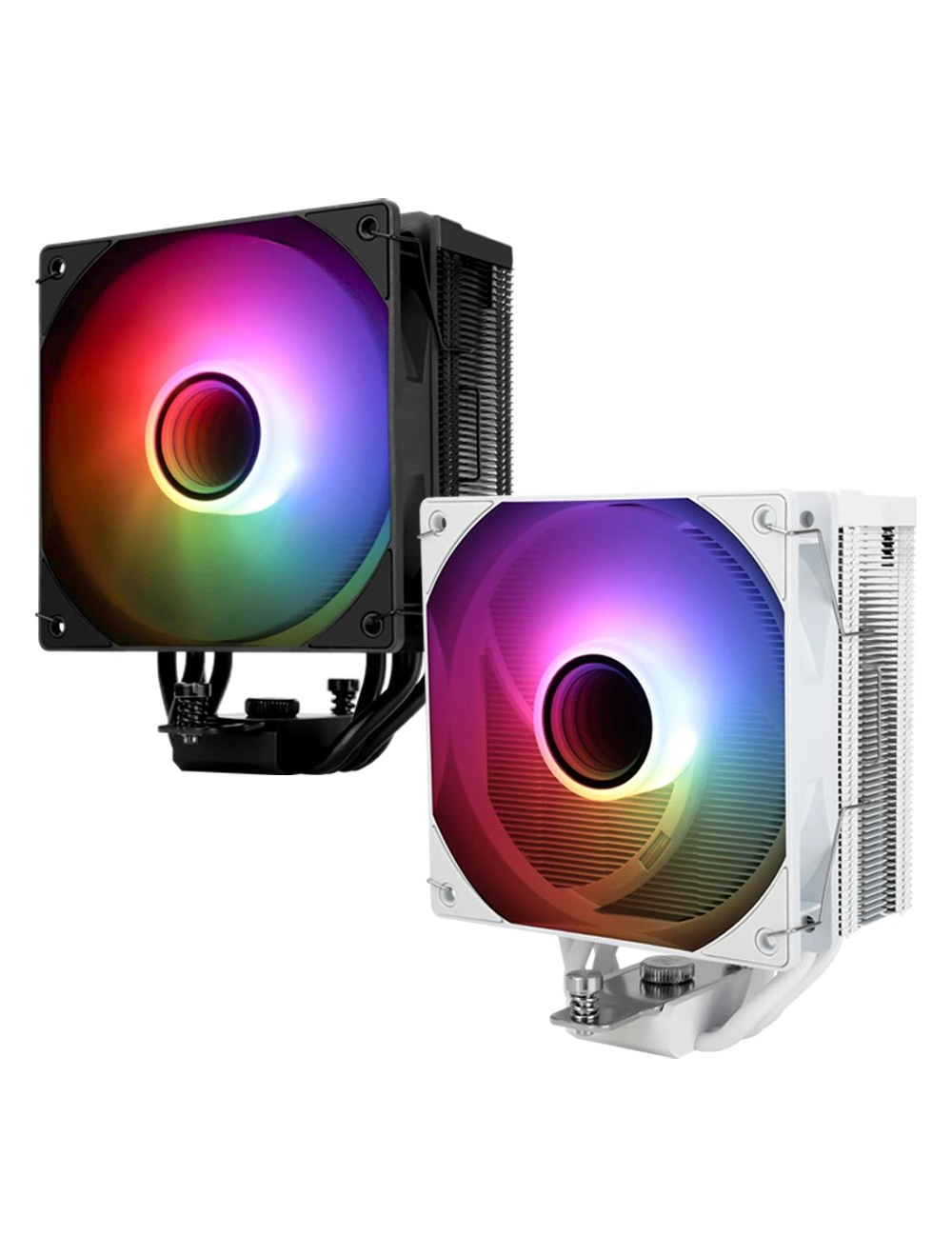

Product Specifications - AS120 EVO WHITE ARGB(Abbreviation); CPU Cooler; Size: 120 (L) x 73 (W) x 156 (H) mm (4.72 x 2.87 x 6.14 inches); Cooler Material: Aluminium. All-aluminium fins in the main body bring the maximum heat dissipation area, combined with the high speed PWM fan, it can perfectly bring out the strongest heat dissipation efficacy of the cpu cooler.
PWM Fan - TL-S12W-S; Standard 120MM size PWM performance fan: 120 x 120 x 25mm (4.72x4.72x0.98 inches); Fan speed (RPM): 2000RPM±10%; Power supply connector: 4-pin;Fan lighting interface:5V 3-pin ARGB, Voltage: 12V DC; Air flow rate: 68.9CFM (max); Noise level ≤ 28.2dB (A), high-performance fan combined with efficient cooling body to bring you the best cooling effect!
Compatibility - The CPU cooling slot support: Intel: LGA1150/1151/1155/1156/1200/1700/17XX; AMD: AM4/AM5; for different CPU slot platforms, the corresponding mounting plate or fasteners are provided, which can be combined with the installation instructions or in accordance with the tutorial to the machine.(Note: To install AM4/AM5 motherboards, you need to use the original backplate that comes with the motherboard)
Specification
Heatsink Specifications:
Dimension: L120 mm x W48 mm x H156 mm
Weight: 525g(Without Fan)
Heat pipes: 6mm heatpipe x 4 units
TL-S12-S FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 2000 RPM±10% (MAX)
Weight: 175g
Noise Level: 28.2 dBA
Air Flow: 68.9 CFM (MAX)
Air Pressure: 2.21 mm H2O (MAX)
Ampere: 0.17A
Connector: 4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB Bearing
