BALANCE PERFORMANCE TL-C12C FAN
Based on TL-C12 fan design, TL-C12C fan series achieve optimal balance between performance and noise output, therefore they are all-around fan for heatsink or radiator use scenarios. The motor is equipped with S-FDB bearing for smooth operation and long life span.
EXCELLENCE USER EXPERIENCE
Premium THERMALRIGHT TF-4 thermal paste is also included with CPU cooler for the best out-of-the-box performance. Redesigned Thermalright SS2 mounting system offers easy installation process and optimal mounting pressure.

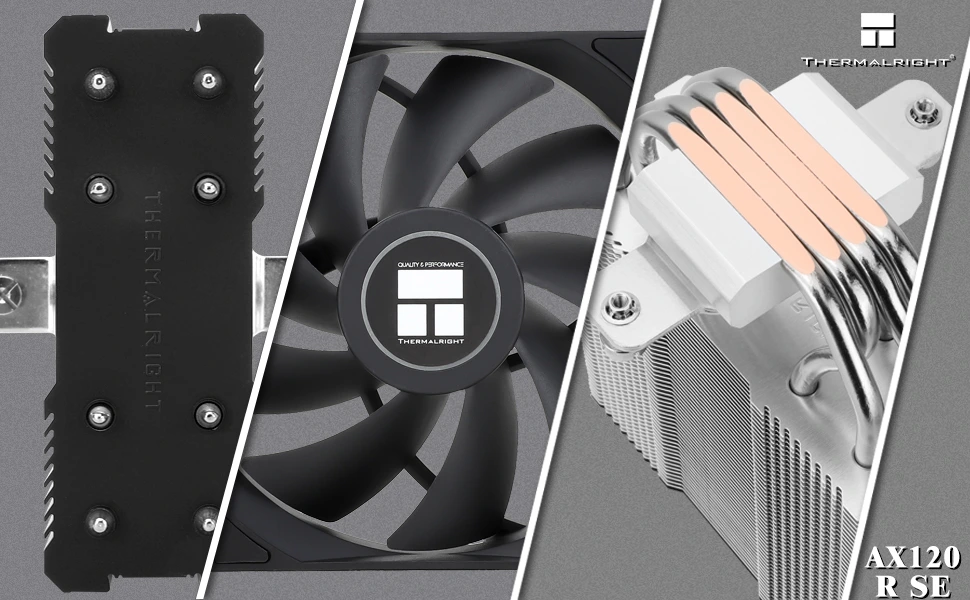

AGHP (ANTI-GRAVITY HEAT PIPE) TECHNOLOGY HEAT PIPES
Common heat pipes heavily depend on gravity to achieve optimal performance.
Heatsink equipped with THERMALRIGHT Special design AGHP Heat Pipes is not affected by the mounting direction. This ensures user’s cooler experience in different computer case designs.
Heatsink Dimensions: L120 mm × W46 mm × H148 mm
Heatsink Weight: 630 g
Heat Pipes: 6 mm × 4 units
Fan Model: TL-C12C
Fan Dimensions: L120 mm × W120 mm × H25 mm
Fan Weight: 120 g
Fan Rated Speed: 1550 RPM ±10% (Max)
Fan Noise Level: 25.6 dBA
Air Flow: 66.17 CFM (Max)
Air Pressure: 1.53 mm H₂O (Max)
Fan Current: 0.20 A
Fan Connector: 4-pin PWM
ARGB Connector: 3-pin 5V
Bearing Type: S-FDB Bearing
Socket Support
Intel: 115x / 1200 / 1700 / 1851
AMD: AM4 / AM5
