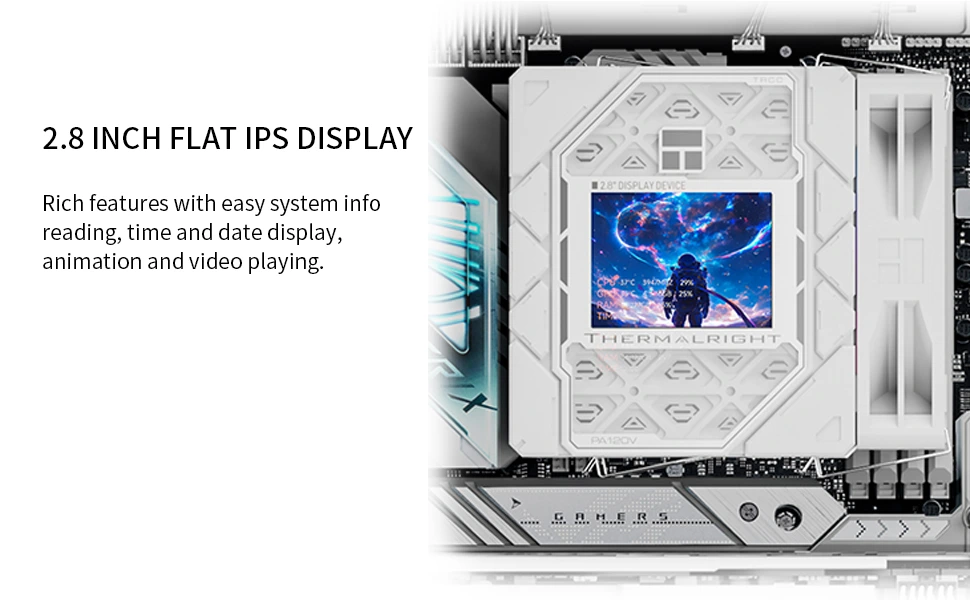

2.8-inch IPS LCD Screen - Magnetic-attachment display panel integrated with the heat sink, featuring a 320x240 resolution. Enables monitoring of all system parameters. When paired with TRCC control software, allows customisation of background themes.

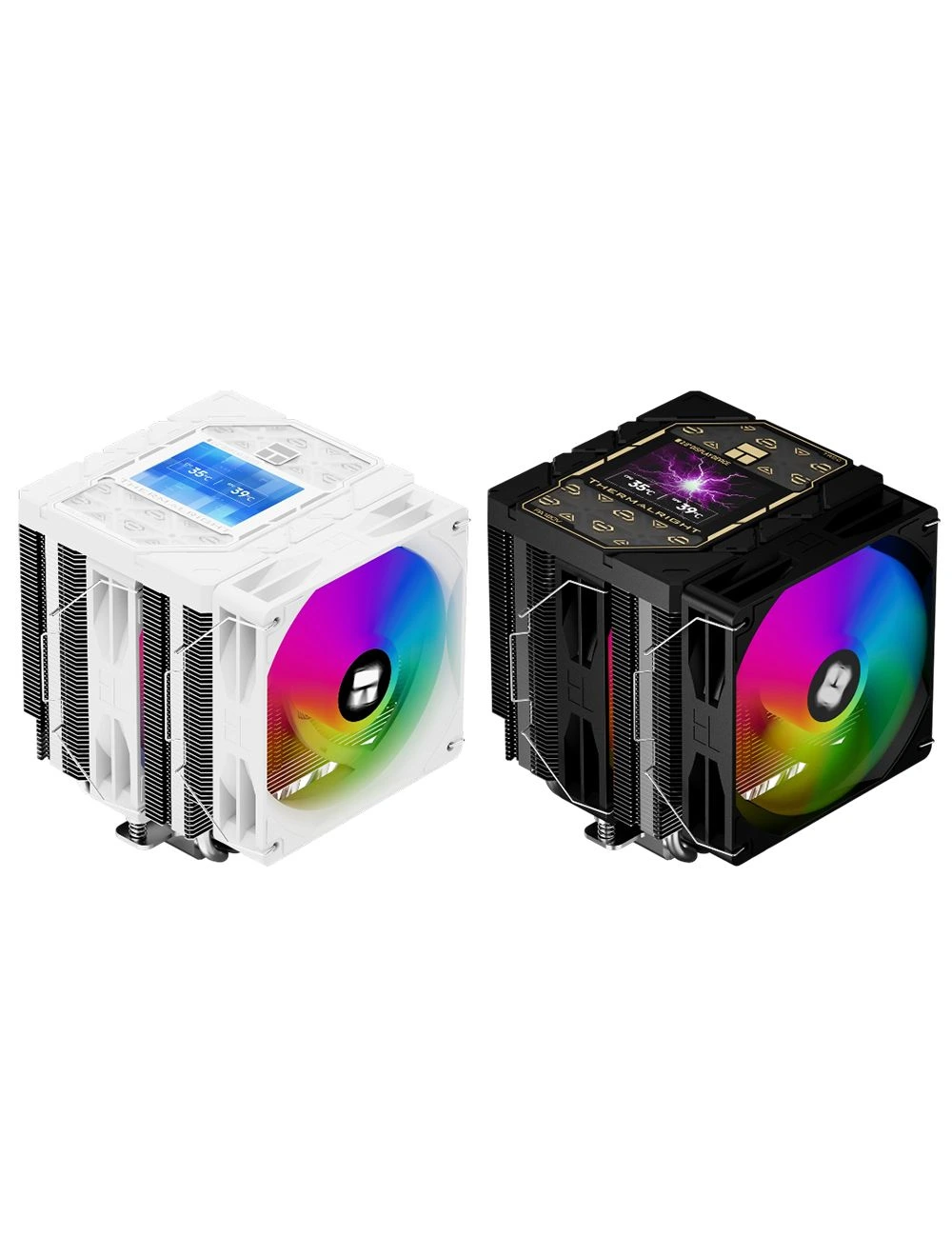

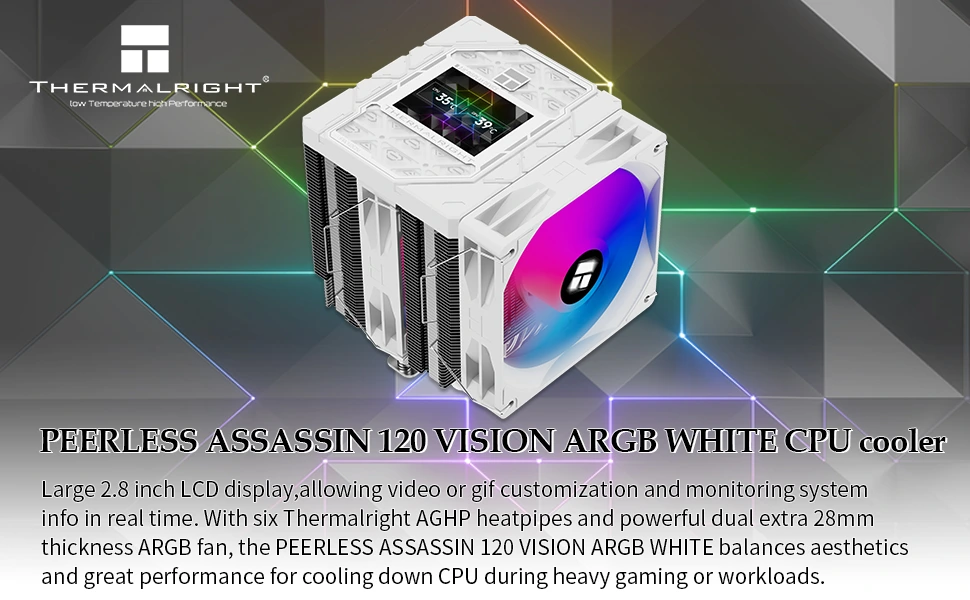

Superior Heat Dissipation - The CPU cooler primarily comprises a dual-tower design with two fans and a magnetic-attachment 2.8-inch IPS LCD display. Its micro-engraved copper base, paired with six pure copper heat pipes, ensures excellent thermal contact with the CPU. Combined with a high rotational speed of 1850 RPM, this configuration delivers outstanding cooling performance.

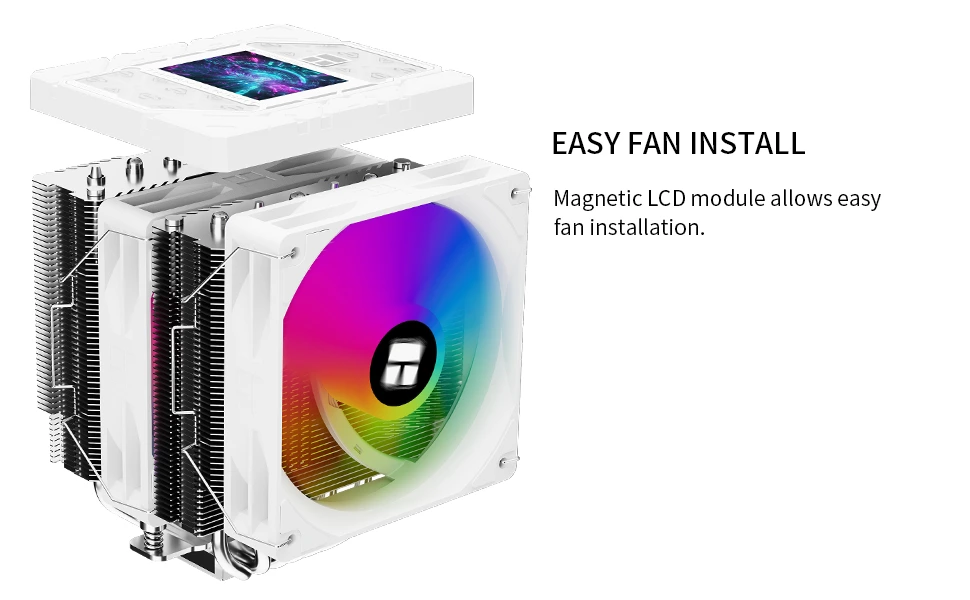

5V ARGB Lighting Effects - The cooling fan incorporates vibrant high-brightness LED bulbs. The RGB interface is a 5V 3-pin ARGB connector, with ARGB lighting effects adjustable via the motherboard's lighting software. [Magnetic Screen Cover] Requires no screws for installation; the magnetic cover design enables swift fitting and removal. Features a high-quality display with an IPS panel, delivering excellent viewing angle stability.
162mm Height - The cooler stands at 162mm tall, compatible with mainstream ATX cases. Its dual-tower aluminium fins and magnetic-attachment display panel design combine high thermal performance with innovative technology. The integrated dual-tower, dual-fan configuration accommodates high-profile RAM modules and GPU installations.
TRCC Software - The TRCC Control Centre enables unrestricted monitoring of all system parameter displays, supporting both dynamic and static background visualisation. Power supply and data communication for the LCD screen are provided via the motherboard's 9-pin USB interface. Prior to software installation, please ensure all wiring connections are intact. The software may be downloaded and installed from the official website.
Extensive Compatibility - Compatible platforms for the heatsink: AMD: AM4/AM5; Intel: LGA1851/1700/1150/1151/1155/1156/1200. Includes dual-platform mounting brackets for secure installation on corresponding sockets. Follow the manual for installation. (Note: AMD platform installation requires the motherboard's original backplate, which is not included with this product.)
Technical Spec :
Heatsink Specifications：
Dimension：L125 mm x W110 mm x H162 mm
Heat pipes：6 mm heatpipe x 6 units

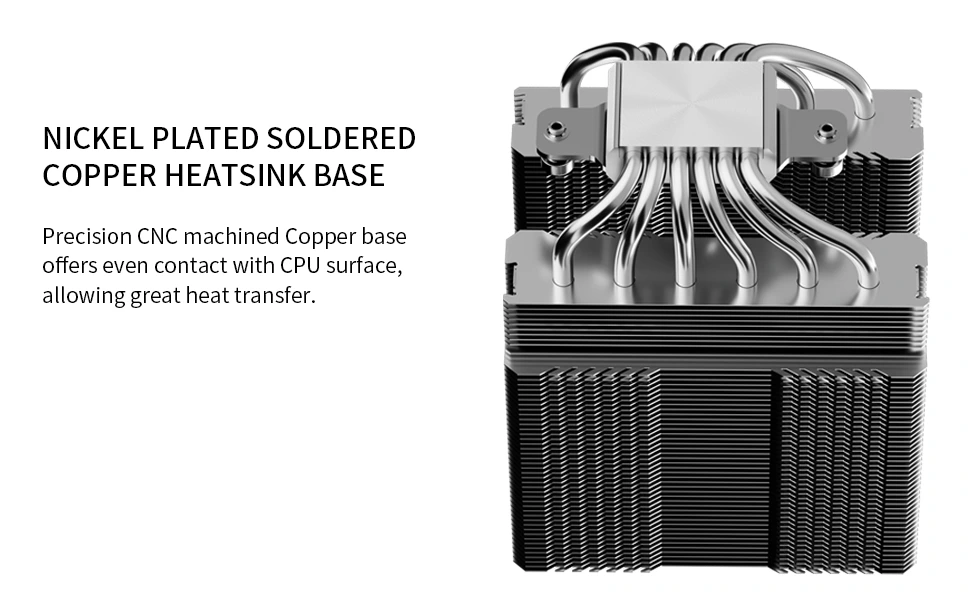

Copper Base：C1100 Pure copper nickel plated
Screen Size：2.8-Inch
Screen Resolution：320×240
LCD DISPLAY Connector：MB 9 pin/USB 2.0 Port

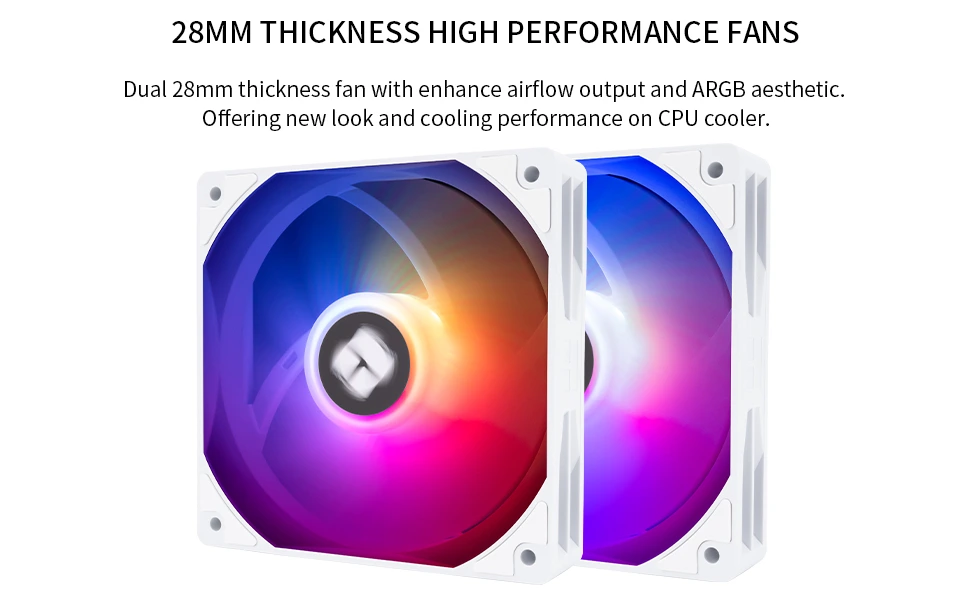

TL-C12CW-X28-S V2 FAN Spec：
Dimension：L120 mm x W120 mm x H28 mm
Rated Speed：1850 RPM±10% (MAX)
Noise Level：29.5 dBA
Air Flow：88.89 CFM (MAX)
Air Pressure：2.21 mm H2O (MAX)
Connector : 4 Pin (PWM Fan connector)
ARGB Connector：3 PIN 5V
Bearing Type : S-FDB Bearing
