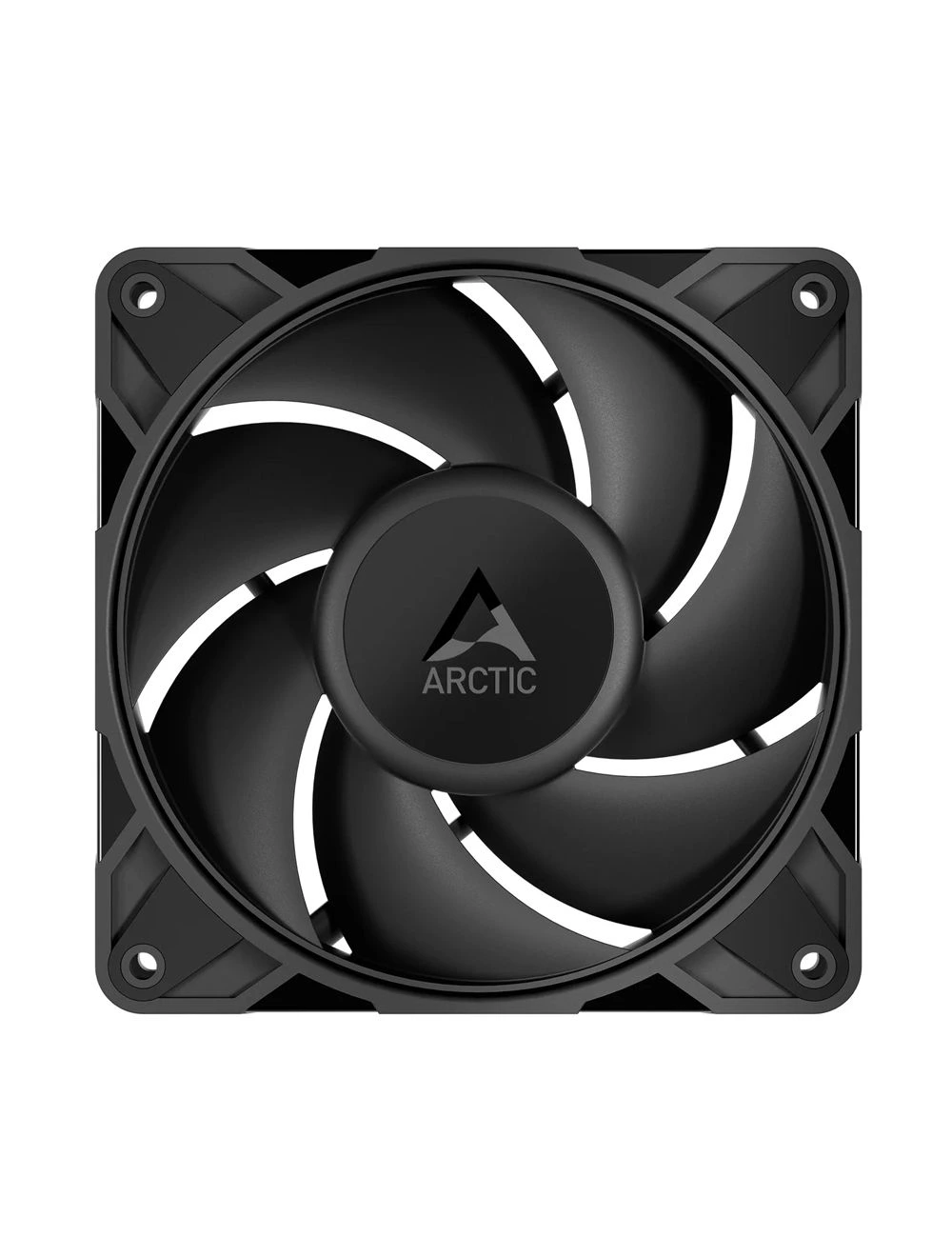

P12 Pro PST CO
120 mm PWM Fan with Cable Splitter for Continuous Operation
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (DBB)
A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

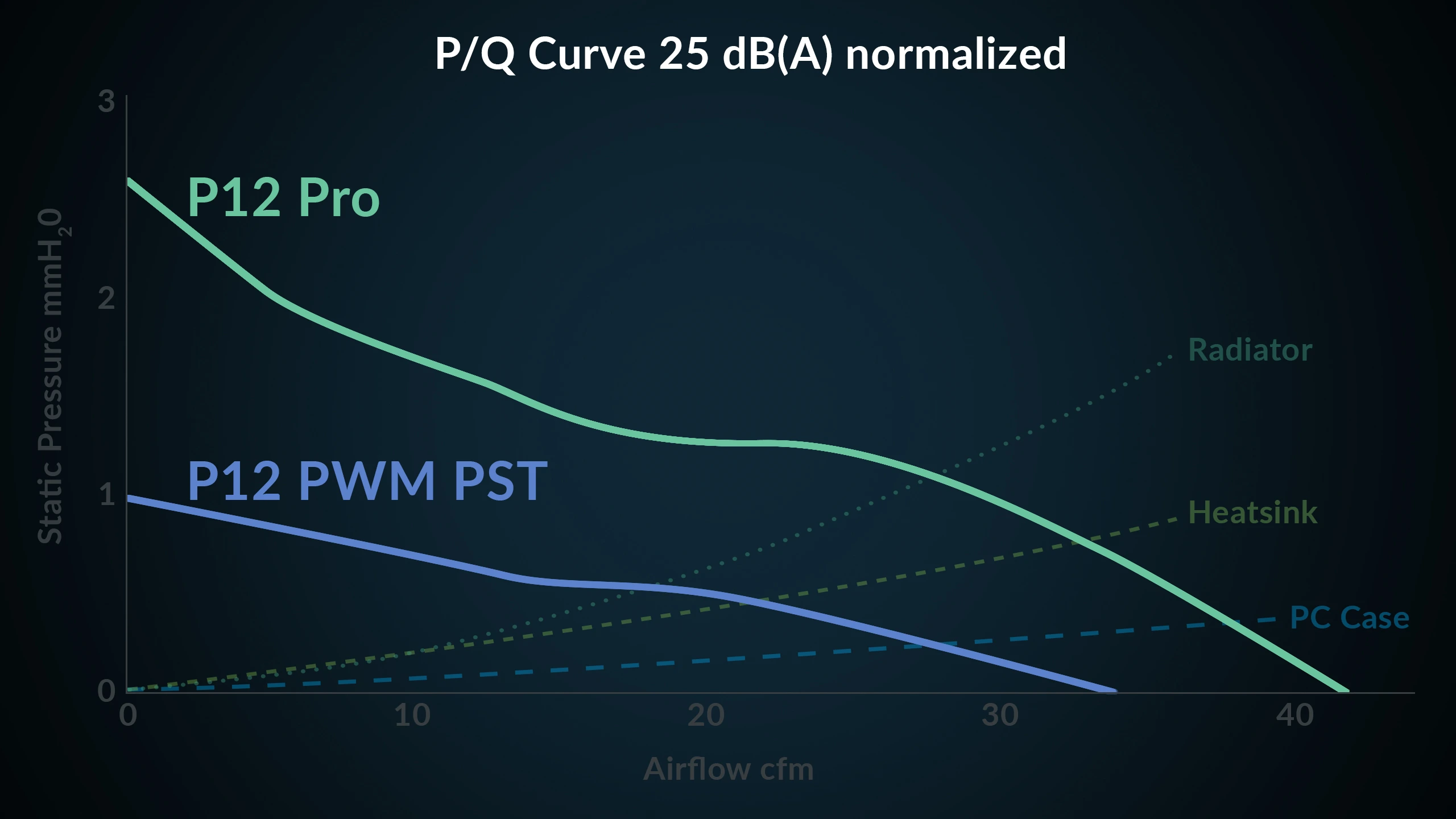

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

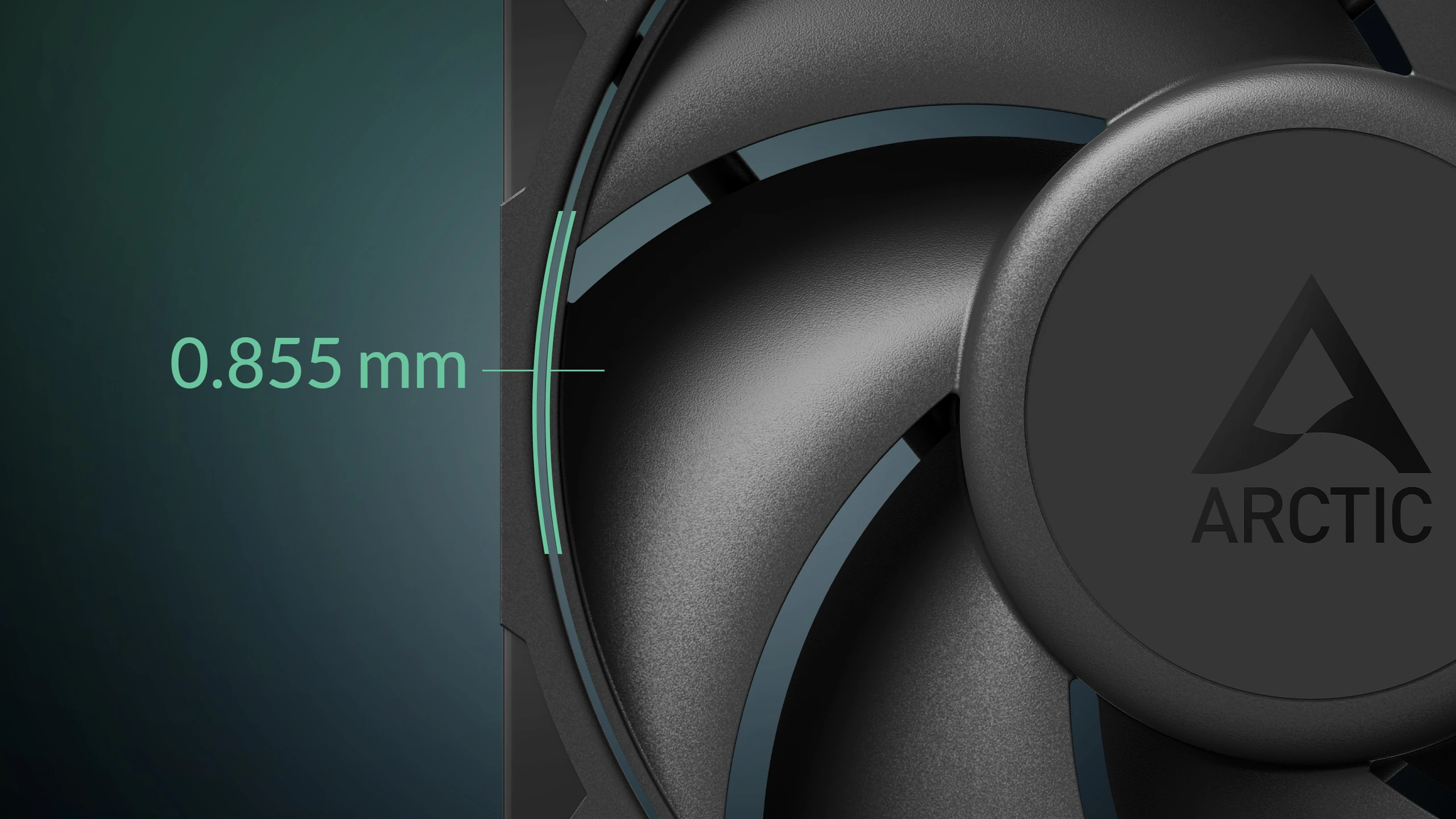

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
General Specifications
Operating Ambient Temperature0–40 °C
Dimensions120 (L) x 120 (W) x 25 (H) mm
Net Weight185 g
Fan Specifications
Fan Speed: 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM
Airflow: 77 cfm | 131 m³/h
Static Pressure: 6.9 mmH2O
Fan Bearing: Dual Ball Bearing
Typical Voltage: 12 V DC
Start Up Voltage: 3.3 V DC
Current: 0.33 A
Cable Length: 400 mm + 80 mm Daisy-Chain Cable
Connector: 4-Pin Fan Plug + 4-Pin Socket
