Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FBB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
General Specifications
Operating Ambient Temperature0–40 °C
Dimensions120 (L) x 120 (W) x 25 (H) mm
Net Weight: 185 g
Fan Specifications
Fan Speed: 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM
Airflow: 77 cfm | 131 m³/h
Static Pressure: 6.9 mmH2O
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Start Up Voltage: 3.3 V DC
Current: 0.33 A

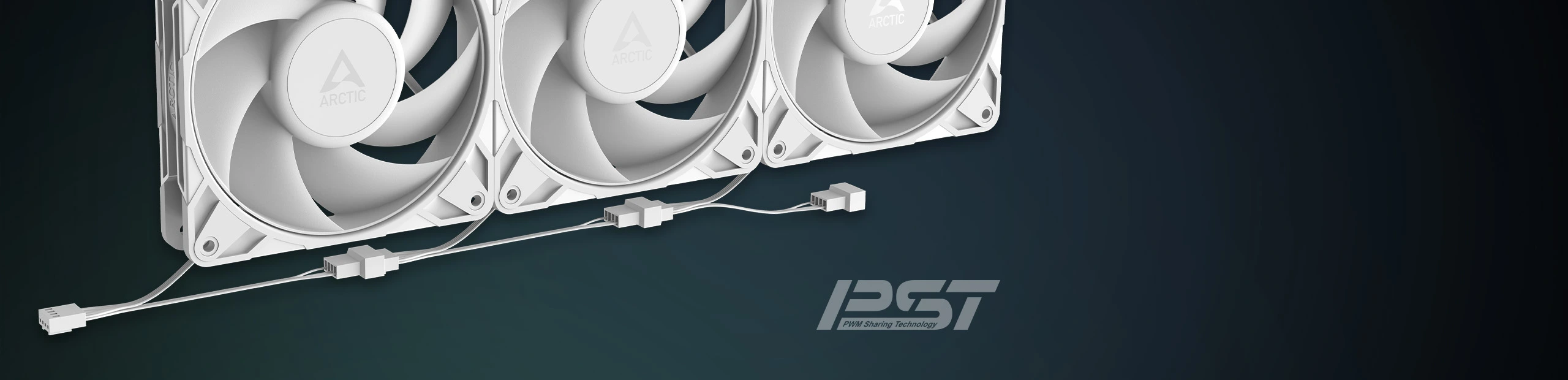

Cable Length: 400 mm + 80 mm Daisy-Chain Cable
Connector: 4-Pin Fan Plug + 4-Pin Socket
