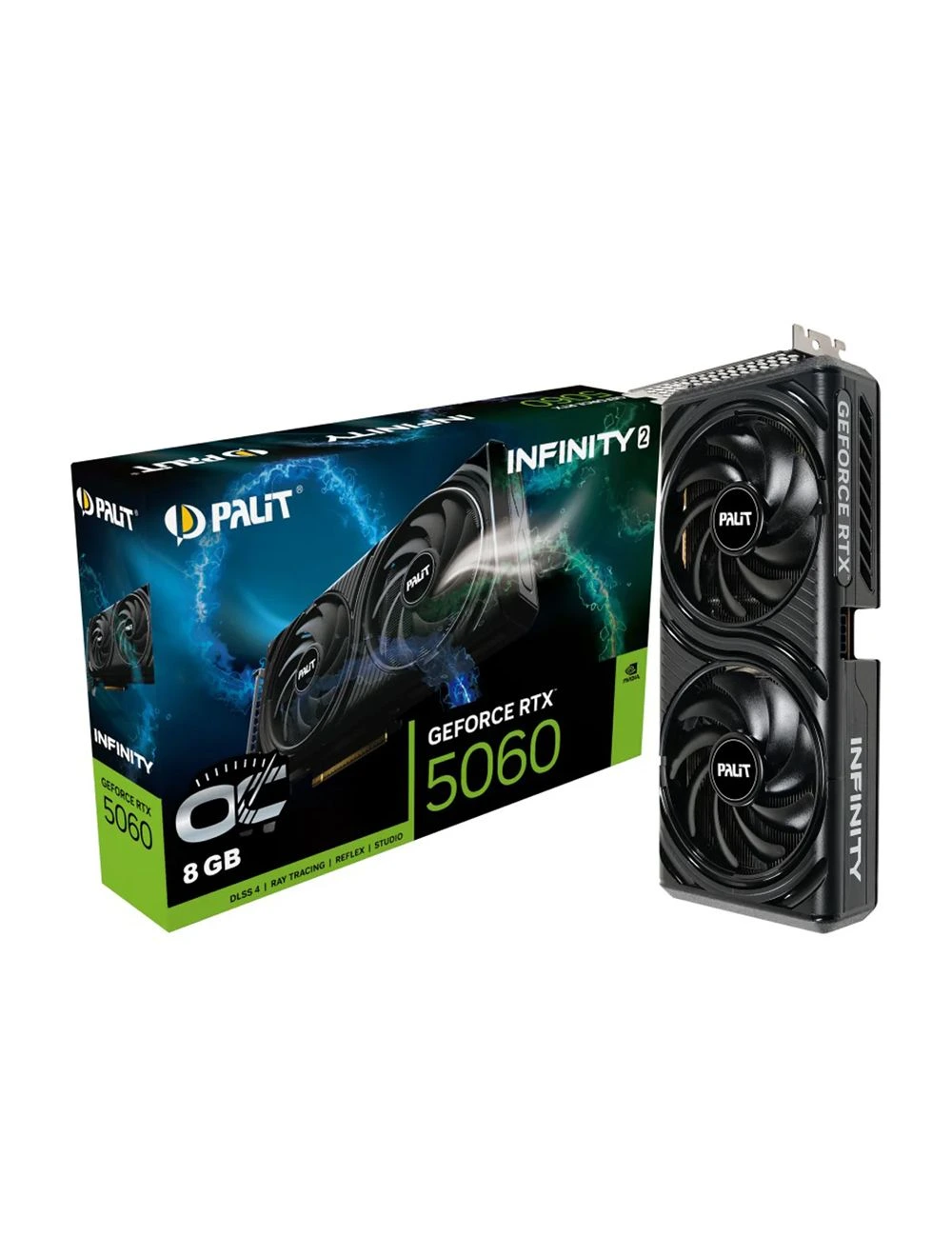

Affordable Power, Overclocked Performance
The GeForce RTX™ 5060 Infinity 2 OC comes factory-overclocked, offering higher performance straight out of the box—ideal for users who want an edge without manual tuning.
The Infinity 2 OC embodies a philosophy of simplicity and power. Its design, highlighted by the Infinity symbol (∞), not only offers a visually clean aesthetic but also represents smooth airflow, allowing users to game and create without limits. Designed without any lighting effects, and built with a compact 2-slot form factor, it offers a focused aesthetic that fits seamlessly into a wide range of builds.
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators.
Specifications
Memory Amount: 8 GB
Memory Interface: 128 bits
DRAM Type: GDDR7
Graphics Clock: 2280 MHz
Boost Clock: 2512 MHz
Memory Clock: 28 Gbps
CUDA Cores: 3840
Memory Bandwidth (GB/sec): 448
Microsoft DirectX: Microsoft DirectX® 12 Ultimate
OpenGL: 4.6
Bus Support: PCI-E 5.0
HDMI: HDMI 2.1b
Display Port: DP2.1b x 3
Maximum Digital Resolution: 4K at 480Hz or 8K at 120Hz with DSC
Height: 2 Slot
Board Size: 262.1 x 126.3 x 40.1 mm
Graphics Card Power: 145 W
Recommended System Power: 550 W
Supplementary Power Connectors: 8-pin x 1
Composite Heat Pipe: ✓
Copper Base: ✓
DrMOS: ✓
0-dB TECH: ✓
NVIDIA Architecture: Blackwell
Ray Tracing Cores: 4th Generation
Tensor Cores: 5th Generation
NVIDIA DLSS 4: ✓
NVIDIA Reflex 2: ✓
NVIDIA Broadcast: ✓
Resizable BAR: ✓
NVIDIA App: ✓
NVIDIA Ansel: ✓
NVIDIA FreeStyle: ✓
NVIDIA ShadowPlay: ✓
NVIDIA® Highlights: ✓
NVIDIA G-SYNC: ✓
Game Ready Drivers: ✓
NVIDIA Studio Drivers: ✓
NVIDIA Omniverse: ✓
RTX Remix: ✓
NVIDIA GPU Boost: ✓
Vulkan 1.4, OpenGL 4.6: ✓
NVIDIA Encoder (NVENC): 1x 9th Generation
NVIDIA Decoder (NVDEC): 1 x 6th Generation
AV1 Encode: ✓
AV1 Decode: ✓
CUDA Capability: 12.8
VR Ready: ✓
Multi Monitor: 4
