A New Era of SFF Power: The Infinity 3 Series

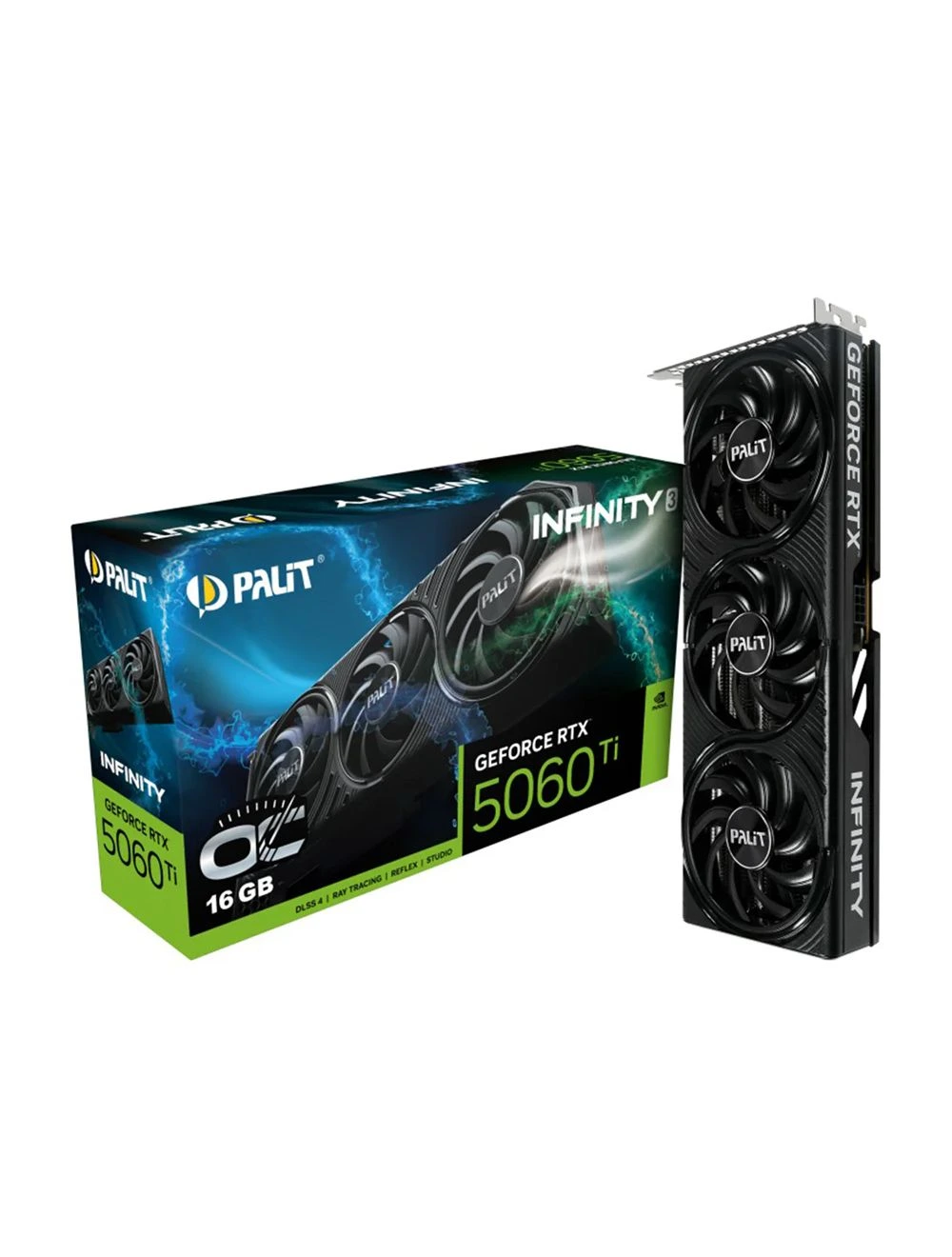

SFF builds are gaining popularity for good reasons. They save space, reduce clutter, and offer more portability. The Palit GeForce RTX™ 5060 Ti Infinity 3 Series is designed with this goal in mind – to deliver the power of a high-end GPU within a form factor that fits into compact PC cases.
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators.
Specifications:
Memory Amount: 16 GB
Memory Interface: 128 bits
DRAM Type: GDDR7
Graphics Clock: 2407 MHz
Boost Clock: 2662 MHz
Memory Clock: 28 Gbps
CUDA Cores: 4608
Memory Bandwidth (GB/sec): 448
Microsoft DirectX: Microsoft DirectX® 12 Ultimate
OpenGL: 4.6
Bus Support: PCI-E 5.0
HDMI: HDMI 2.1b
Display Port: DP2.1b x 3
Maximum Digital Resolution: 4K at 480Hz or 8K at 120Hz with DSC
Height: 2 Slot
Board Size: 291.9 x 116.6 x 41.3 mm
Graphics Card Power: 180 W
Recommended System Power: 600 W
Supplementary Power Connectors: 8-pin x 1
Features
Composite Heat Pipe, Copper Base, DrMOS, 0-dB TECH, NVIDIA Architecture Blackwell, Ray Tracing Cores 4th Generation, Tensor Cores 5th Generation, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Broadcast, Resizable BAR, NVIDIA App, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA® Highlights, NVIDIA G-SYNC, Game Ready Drivers, NVIDIA Studio Drivers, NVIDIA Omniverse, RTX Remix, NVIDIA GPU Boost, Vulkan 1.4, OpenGL 4.6
NVIDIA Encoder (NVENC): 1x 9th Generation
NVIDIA Decoder (NVDEC): 1 x 6th Generation
AV1 Support: AV1 Encode, AV1 Decode
CUDA Capability: 12.8
VR Ready: Yes
Multi Monitor: 4
