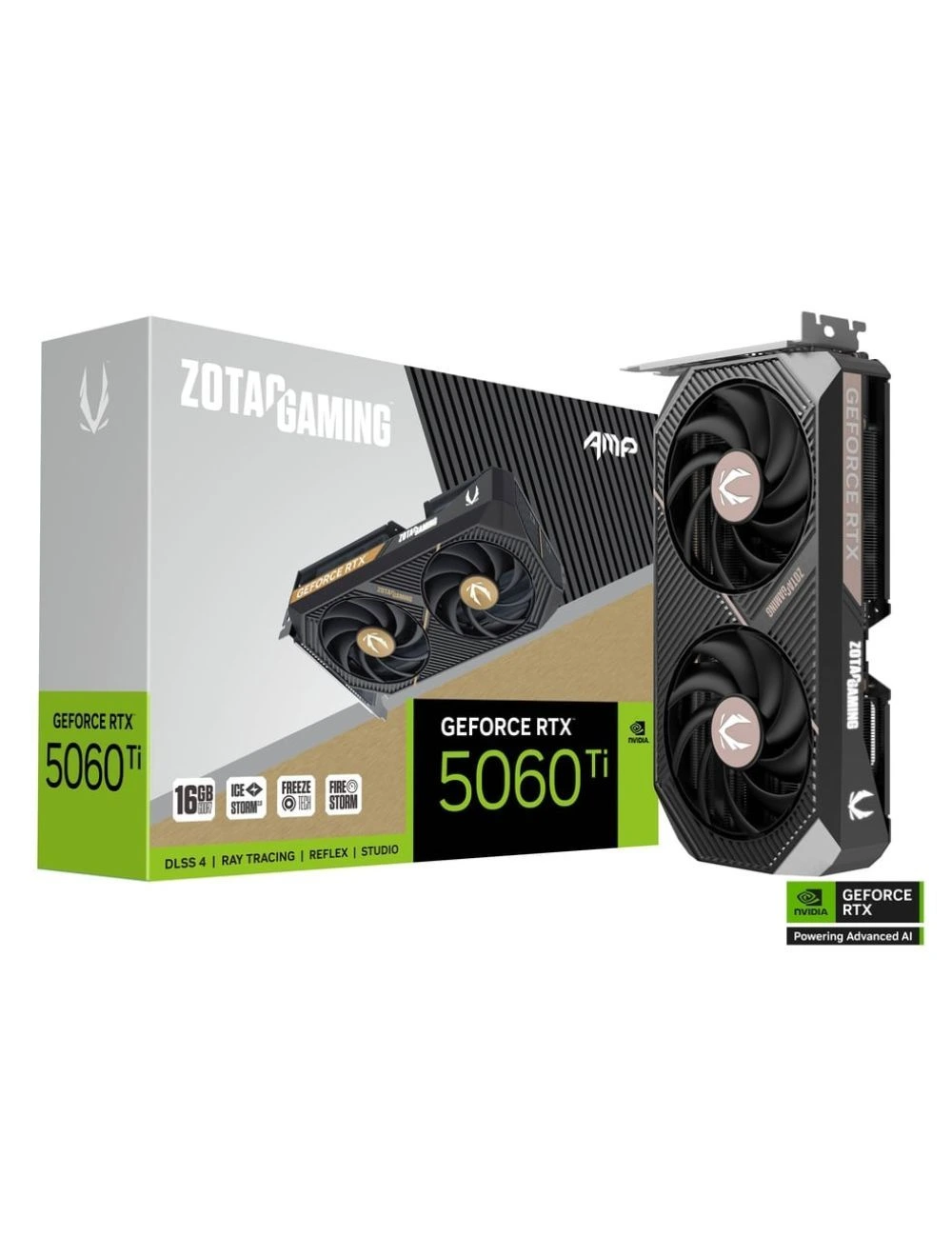

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a strong factory OC as well as a solid cooling solution, the AMP is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- White LED lighting
- SFF-Ready Graphics Card
- Compact dual-fan form factor
- IceStorm 2.0 Cooling
- BladeLink Fans
- FREEZE Fan Stop
- Metal Backplate
- All-new FireStorm Utility
Specifications
GPU: NVIDIA GeForce RTX 5060 Ti GPU
CUDA cores: 4608
Video Memory: 16GB GDDR7
Memory Bus: 128-bit
Engine Clock: 2632 MHz
Memory Clock: 28 Gbps
AI TOPS: 759
PCI Express: PCI Express 5.0 x8
Display Outputs:
- 3 x DisplayPort 2.1b with UHBR20
- (up to 4K 480Hz or 8K 165Hz with DSC)
- 1 x HDMI® Connector
- (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)
HDCP Support: 2.3
Multi Display Capability: Quad Display
Recommended Power Supply: 650W
Power Consumption: 180W
Power Input: 1 x 8-pin power input
DirectX: Microsoft DirectX® 12 Ultimate
OpenGL: 4.6
Cooling: IceStorm 2.0
Slot Size: 2
SLI: No
Supported OS: Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
Card Length: 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
Accessories: User Manual
